GE Fanuc IC694ALG442 | RX3i Analog Output Module | 4 Channels | 0–10V / ±10V | High-Resolution Voltage Output

Overview

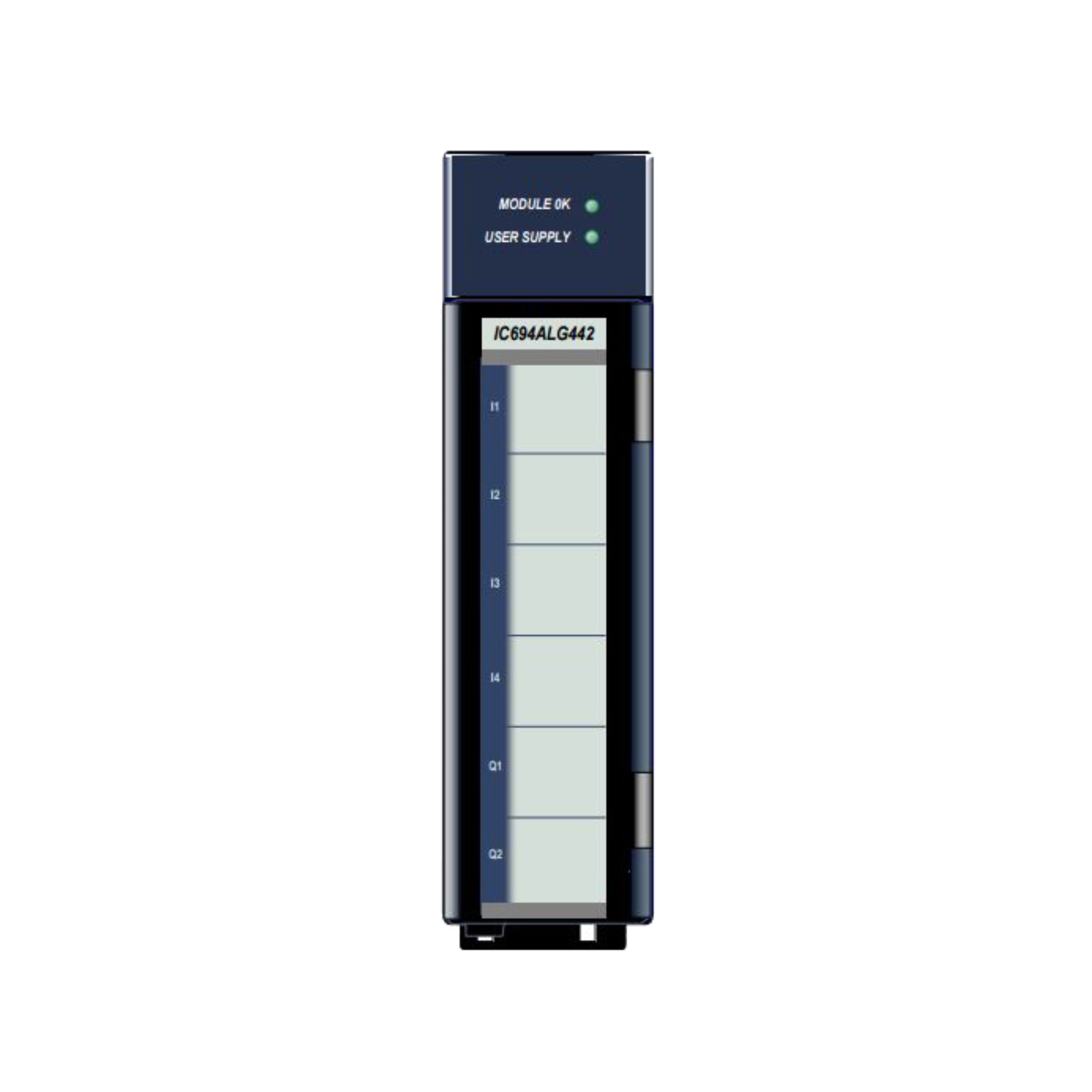

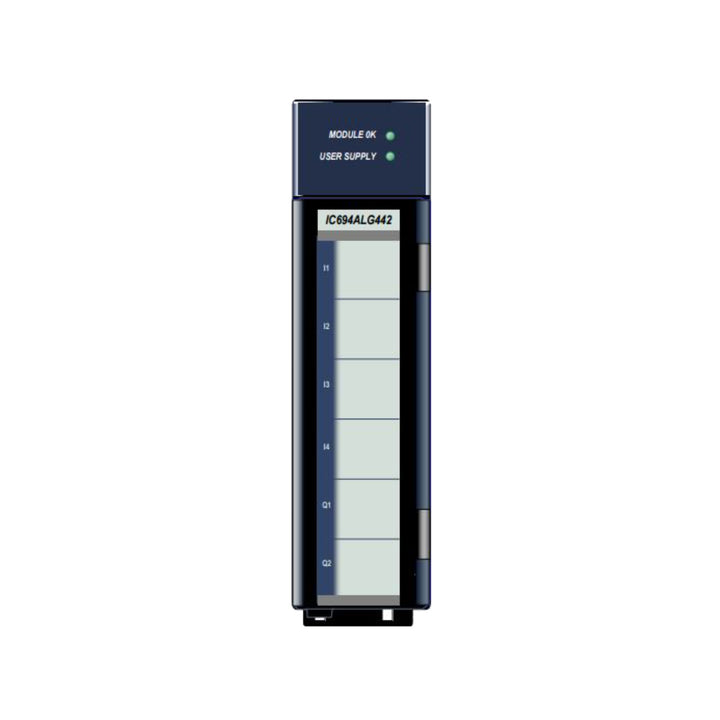

The GE Fanuc IC694ALG442 is a 4-channel analog voltage output module for the PACSystems RX3i series. It supports configurable output ranges of 0–10V or ±10V, allowing precise control of devices such as drives, actuators, and analog indicators. Designed for high-resolution output and reliable industrial performance, it is ideal for a wide range of analog signal control applications.

Key Features

• Output Type: Analog voltage (0–10V or ±10V)

• Channels: 4

• Resolution: 16-bit D/A conversion

• Accuracy: ±0.1% of full scale

• Isolation: Group-isolated from logic and field

• Status Indicators: Module-level LED for diagnostics

• Hot-Swappable: Yes (when used in supported RX3i racks)

Technical Specifications

• Model Number: IC694ALG442

• Output Ranges: 0–10V, ±10V (selectable per channel)

• Load Resistance: ≥2 kΩ

• Update Rate: <2 ms per channel

• Power Requirements: 5V @ 80 mA, 24V @ 60 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS

Applications

• Analog voltage control for industrial drives and actuators

• Interface to analog meters, indicators, and third-party controllers

• Process control systems with voltage-based I/O

• OEM equipment requiring precision voltage outputs

Why Choose the IC694ALG442?

• Flexible Voltage Ranges: Configurable for each channel

• High Accuracy & Resolution: 16-bit output ensures precise control

• Compact Design: 4 outputs in a single-slot RX3i module

• Reliable Operation: Built for continuous industrial use

Order Now

The GE Fanuc IC694ALG442 is available and ready for fast global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
