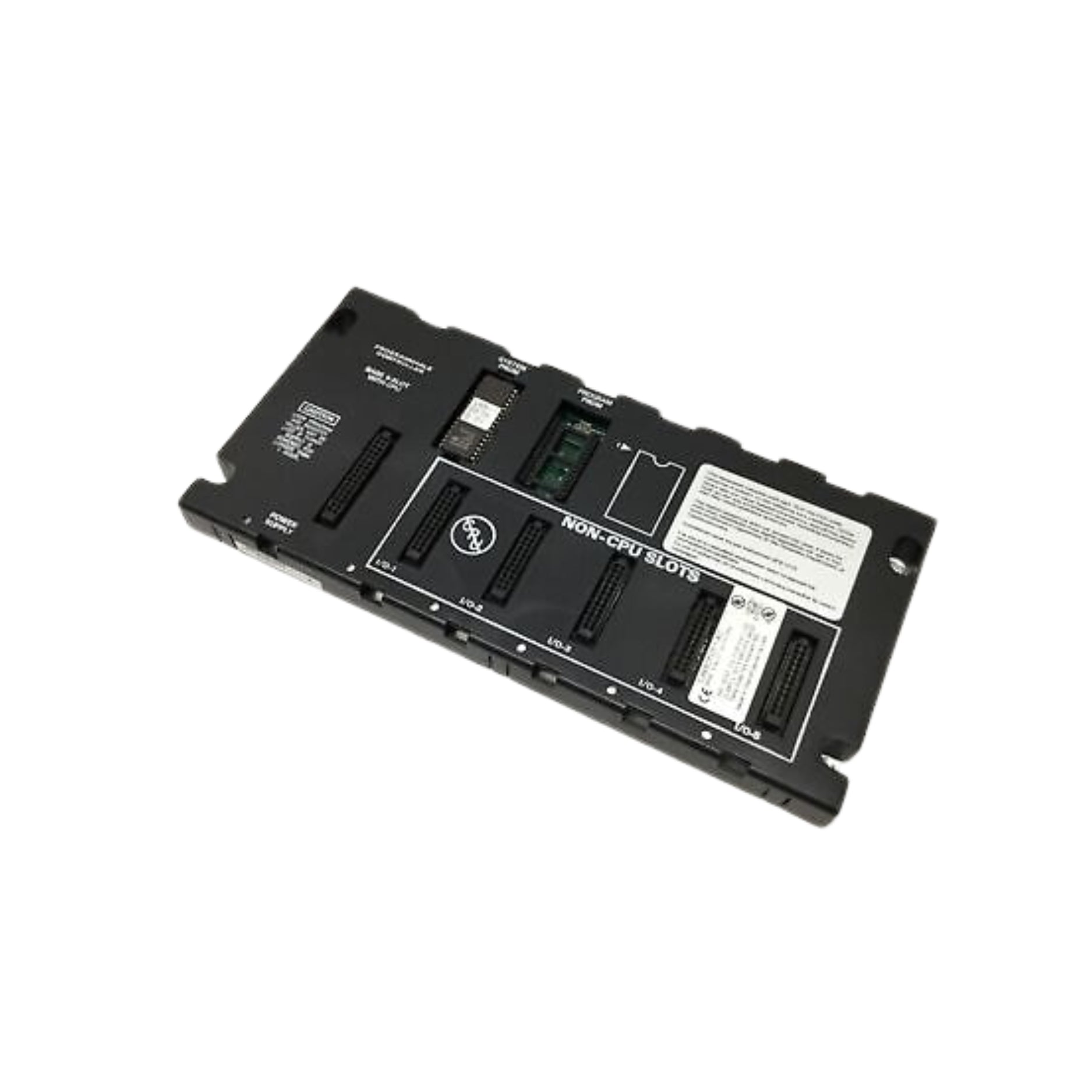

GE IC693CPU311

GE Fanuc IC693CPU311 | Series 90-30 CPU Module | 5-Slot Baseplate | 31.2K User Memory | RS-232 Programming Port

Overview

The GE Fanuc IC693CPU311 is an entry-level CPU module for the Series 90-30 PLC platform, featuring a built-in 5-slot baseplate and RS-232 serial programming port. With 31.2K of user memory, this module is ideal for small to mid-size control applications. It supports up to 128 I/O points and includes features such as real-time clock, configurable scan modes, and EEPROM backup compatibility.

Key Features

• Integrated Baseplate: 5-slot CPU baseplate included

• User Memory: 31.2K bytes

• Serial Port: 1x RS-232 port for programming and communication

• I/O Support: Up to 128 discrete I/O points

• Programming Software: Proficy Machine Edition or Logicmaster 90

• Battery-Backed RAM: Optional for program/data retention

• Scan Modes: Constant and variable sweep

Technical Specifications

• Model Number: IC693CPU311

• Processor Speed: 10 MHz

• Memory Type: Battery-backed RAM and optional EEPROM

• Communications: RS-232 serial port (DB-25)

• Backplane Current Draw: 5V @ 500 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS compliant

Applications

• Basic discrete automation control

• OEM equipment with low I/O requirements

• Compact standalone PLC systems

• Educational and training environments for PLC programming

Why Choose the IC693CPU311?

• Cost-Effective: Ideal for small automation tasks

• Compact Footprint: Integrated 5-slot baseplate saves space

• Flexible Programming: Compatible with standard GE PLC tools

• Proven Platform: Part of the reliable and widely-used Series 90-30 family

Order Now

The GE Fanuc IC693CPU311 is available and ready for fast worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
