GE IC693APU300

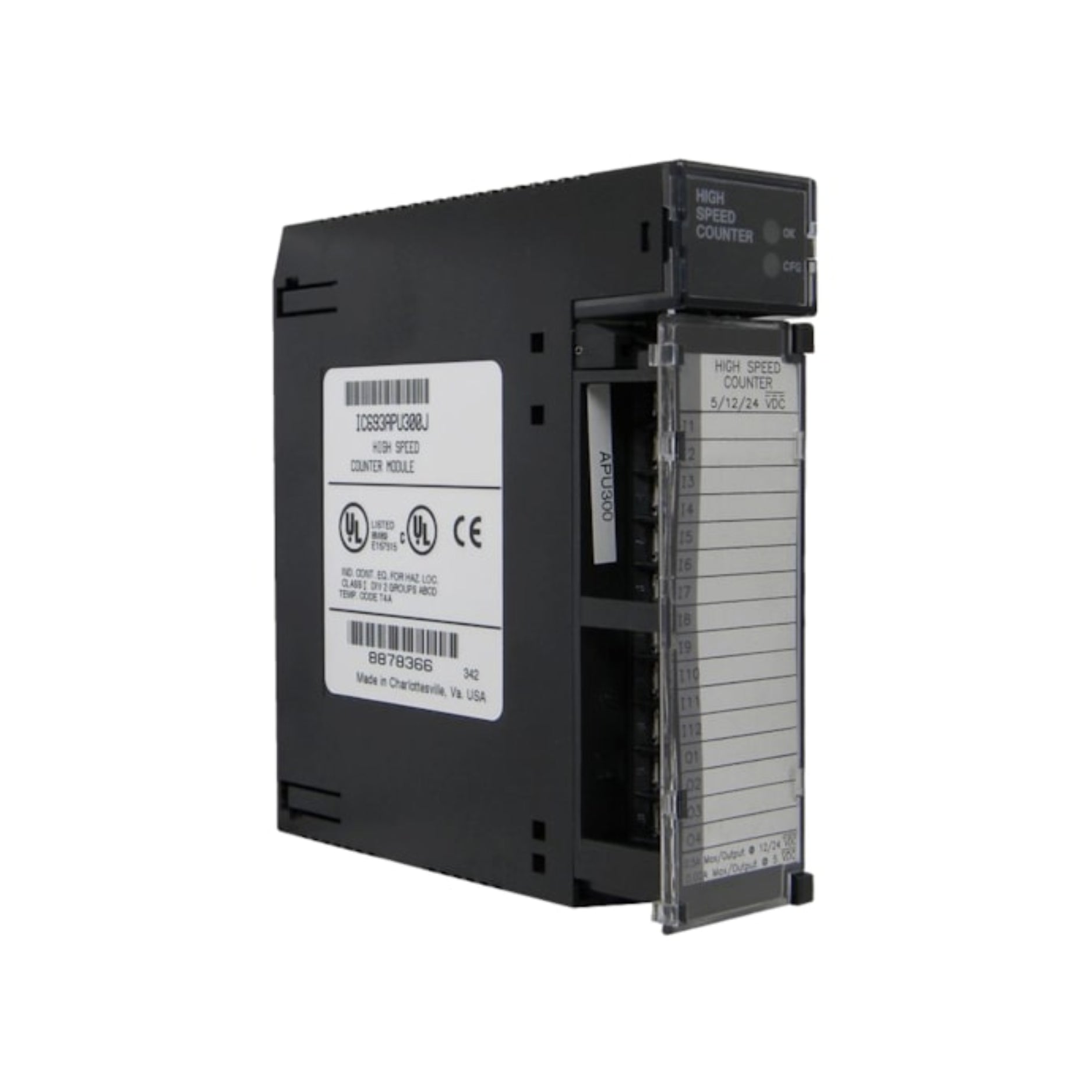

GE Fanuc IC693APU300 | Series 90-30 High-Speed Counter Module | 2 Channels | 12–24VDC | 500 kHz Input | Quadrature or Pulse

Overview

The GE Fanuc IC693APU300 is a high-speed counter (HSC) module for the Series 90-30 PLC system, designed for real-time counting and positioning applications. It supports two independent input channels with up to 500 kHz frequency, compatible with pulse and quadrature signals, making it perfect for use with encoders and motion control systems.

Key Features

• Module Type: High-Speed Counter (HSC)

• Input Channels: 2 (independently configurable)

• Input Voltage: 12–24VDC

• Max Frequency: 500 kHz

• Input Types:

  • Pulse

  • Quadrature (X1, X2, X4 decoding)

• Modes Supported:

  • Up/Down

  • A/B quadrature

  • Single or dual counter mode

Technical Specifications

• Model Number: IC693APU300

• Input Voltage Range: 12–24VDC

• Input Frequency: Up to 500 kHz

• Input Isolation: 1500V field-to-logic

• Backplane Power Draw: 5V @ 320 mA

• Output Signals: None (input only)

• Operating Temperature: 0°C to 60°C

• Configuration: Via programming software (Logicmaster 90 or Proficy ME)

• Certifications: UL, CE, RoHS

Applications

• Rotary encoder input and position feedback

• Linear measurement and length control

• Industrial packaging and material handling systems

• High-speed process monitoring and totalizing

Why Choose the IC693APU300?

• High-Speed Performance: Supports up to 500 kHz input frequency

• Flexible Input Modes: Handles pulse, direction, and quadrature encoding

• Dual Channel Design: Independent configuration per channel

• Precision Counting: Ideal for real-time motion and speed applications

Order Now

The GE Fanuc IC693APU300 high-speed counter module is available and ready for fast global shipping.

Return to GE IC693 PLC Series 90-30 for more options in this series.

 Explore our full range of GE Industrial Automation Products to find PLCs, HMIs, servo drives, control modules, and other automation solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
