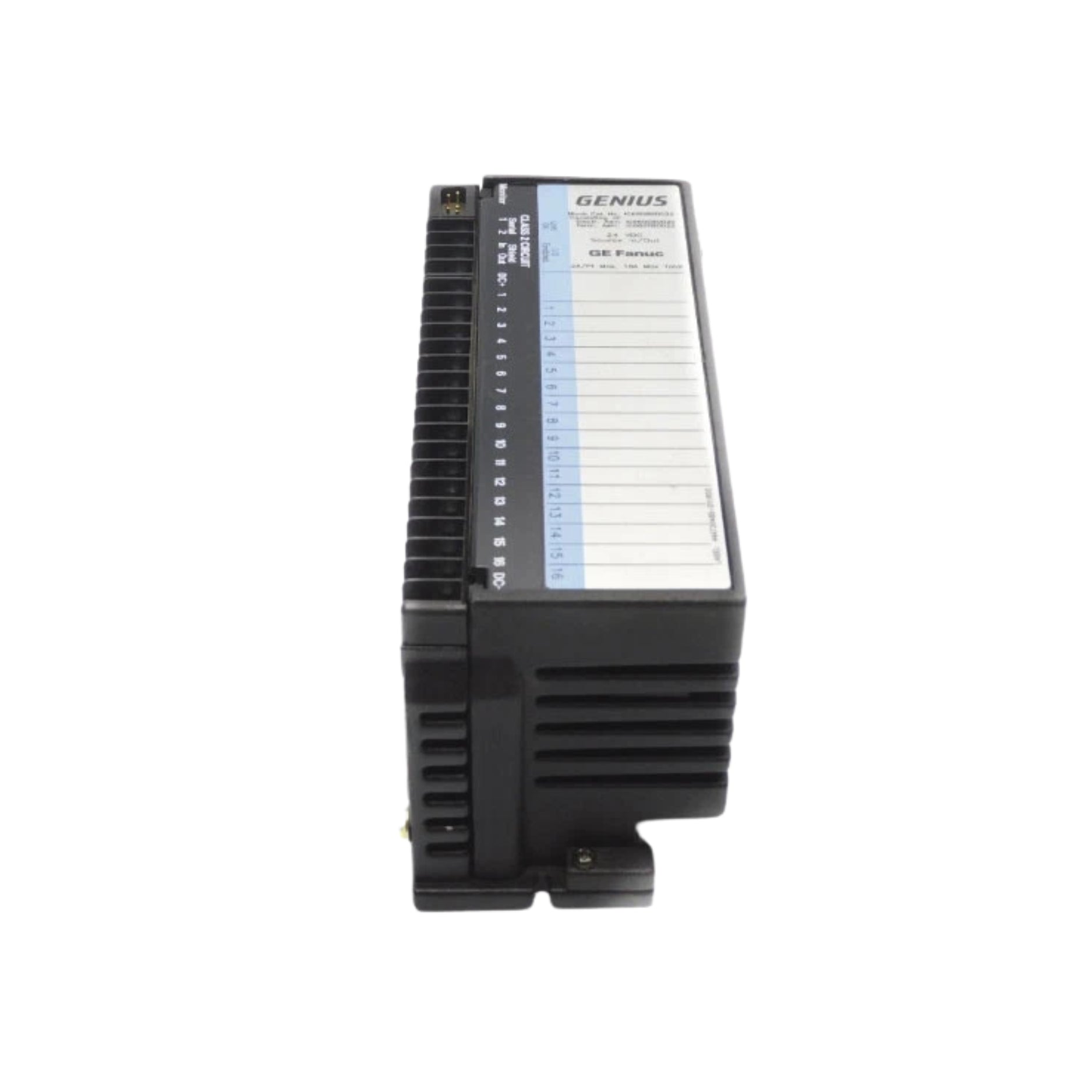

GE IC660BBD022

GE IC660BBD022 | 24 VDC 32-Point Source Input Block for Genius I/O Control Systems

Overview

The GE IC660BBD022 is a 32-circuit source input block designed for distributed I/O in Genius I/O networks. It is intended for use in factory automation and process control environments requiring high-density, 24 VDC digital input capabilities using sourcing (positive logic) devices.

Key Features

• Input Type: 32 digital inputs (source, positive logic)

• Voltage Range: 24 VDC nominal

• Input Current: ~6 mA typical per channel

• LED Indicators: Input-level LEDs for quick diagnostics

• Diagnostics: Built-in fault detection for open circuits and status monitoring

• Mounting: Field-installable, rugged design for panel or DIN-rail use

• Compatibility: Genius I/O bus with PLCs and distributed control systems

• Isolation: Optical isolation between inputs and logic circuitry

Technical Specifications

• Model Number: IC660BBD022

• Number of Inputs: 32

• Voltage Range: 24 VDC (±10%)

• Input Logic Type: Source (positive logic)

• Input Impedance: ~4.7k ohms

• Power Consumption: Approx. 6 W

• Update Rate: ~10 ms

• Operating Temperature: 0°C to +60°C

• Enclosure Rating: NEMA-rated industrial housing

• Weight: ~2.5 kg

• Isolation Voltage: 1500 V RMS

Applications

• PLC input expansion for GE Genius I/O systems

• Material handling and conveyor system monitoring

• Packaging and labeling equipment

• Building automation and lighting control

• Machine safety interlocks and sensor feedback

Why Choose the IC660BBD022?

• High-Density Input: 32 inputs in a compact, rugged form

• Industrial Grade: Reliable under harsh operating conditions

• Easy Diagnostics: Onboard LED indicators and fault detection

• Seamless Integration: Works directly with Genius-compatible controllers

• Sourcing Logic: Suitable for positive logic input device configurations

Order Now

The GE Fanuc IC660BBD022 is available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
