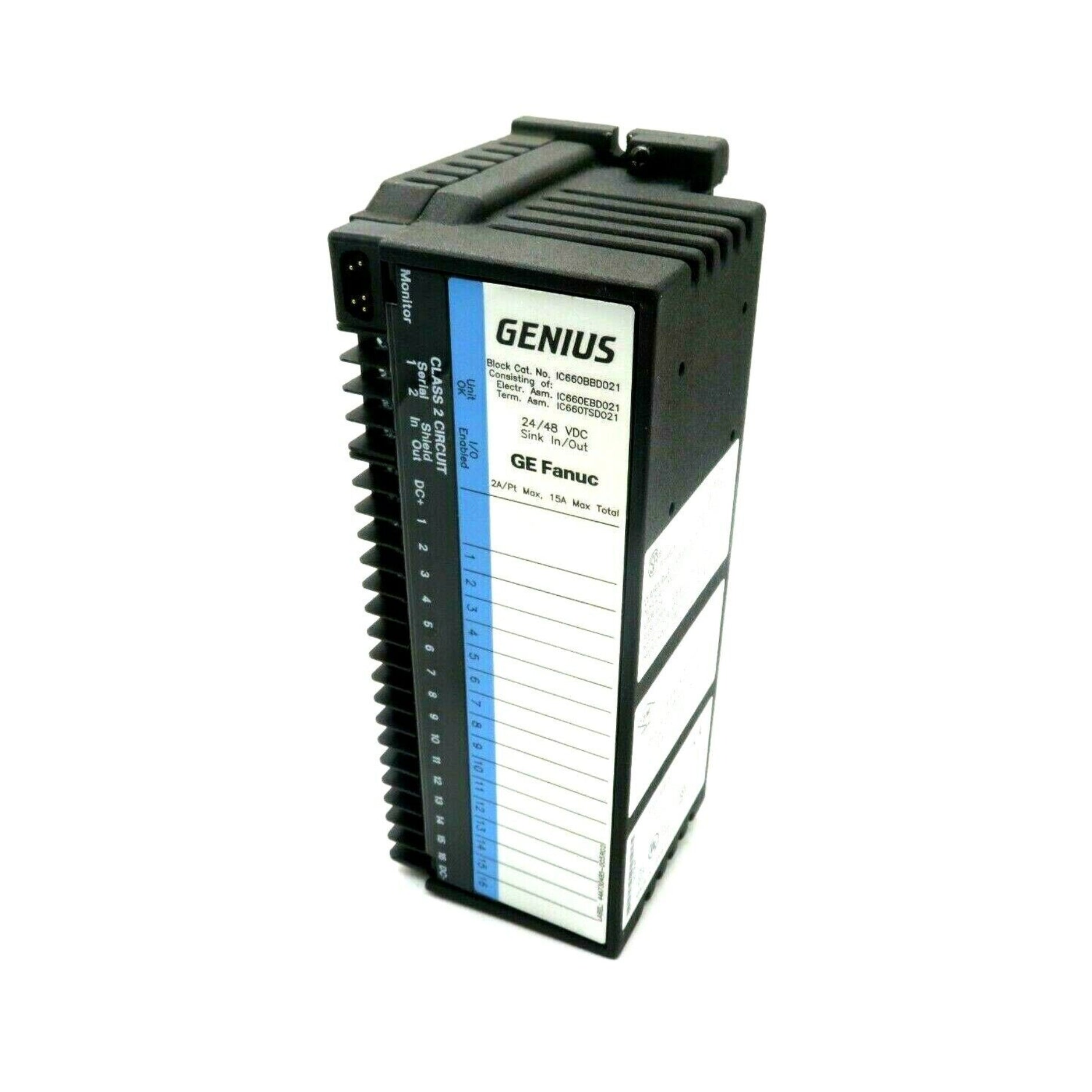

GE IC660BBD021

GE IC660BBD021 | 24 VDC Sink Input Block for Genius I/O Distributed Control Systems

Overview

The GE IC660BBD021 is a 16-circuit sink input module from the Genius I/O product line. Designed for use in distributed control systems, it provides durable, high-speed digital input capabilities in demanding industrial environments. It connects directly to sensors and switches, delivering real-time data to the controller.

Key Features

• Input Type: 16 discrete sinking inputs

• Voltage Range: 24 VDC nominal (with ±10% tolerance)

• Input Current: Approximately 6 mA per input

• Input Isolation: Optical isolation for protection and noise immunity

• LED Indicators: Per-point input status indicators

• Diagnostics: Built-in self-test, open wire detection

• Mounting: Field-mountable with NEMA-rated housing

• Communication: Fully compatible with Genius Bus networks

Technical Specifications

• Model Number: IC660BBD021

• Voltage Rating: 24 VDC

• Number of Inputs: 16

• Input Type: Sink (negative logic)

• Power Consumption: < 4.5 W

• Update Rate: < 10 ms

• Isolation Voltage: 1500V between input and logic circuits

• Operating Temperature: 0°C to 60°C

• Weight: ~2.2 kg

• Enclosure Protection: NEMA-rated for industrial use

Applications

• Discrete input monitoring in:

  • Packaging lines

  • Assembly systems

  • Material handling equipment

  • Building and facility automation

  • General-purpose PLC I/O expansion

Why Choose the IC660BBD021?

• Reliable Performance: Designed for high-noise industrial environments

• Easy Integration: Seamless Genius I/O network compatibility

• Durable Design: Field-mountable and sealed for harsh conditions

• Diagnostic Features: Speed up maintenance and reduce downtime

• Scalable: Easily expandable for larger distributed I/O systems

Order Now

The GE Fanuc IC660BBD021 input block is available for fast worldwide delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
