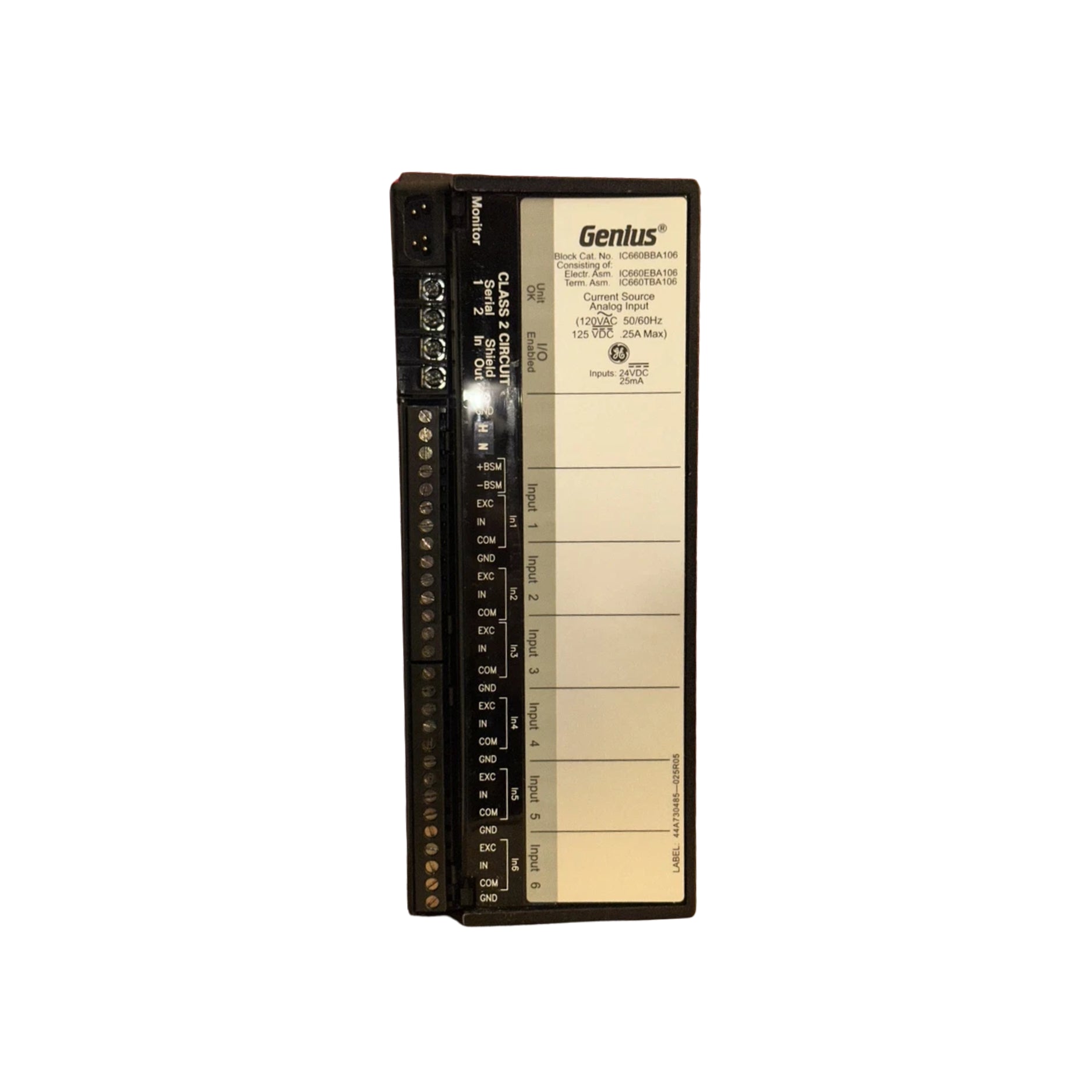

GE IC660BBA106

GE IC660BBA106 | 6-Channel Analog Input Block for Genius I/O Systems

Overview

The GE Fanuc IC660BBA106 is a 6-channel analog input block designed for the Genius I/O distributed control system. It accepts 4–20 mA current signals from various field devices, providing high-resolution input data to controllers in industrial automation environments.

Key Features

• Input Channels: 6 individually isolated analog inputs

• Input Range: 4–20 mA current signals

• Power Supply: 115 VAC or 125 VDC

• Resolution: 1 µA per count

• Diagnostics: Built-in diagnostics including underrange, overrange, high/low alarms, and open wire detection

• LED Indicators: Status LEDs for each channel

• Isolation: 1500V RMS channel-to-channel and channel-to-ground isolation

• Mounting: Field-mountable with rugged enclosure

Technical Specifications

• Model Number: IC660BBA106

• Input Type: Analog current (4–20 mA)

• Number of Inputs: 6

• Power Requirements: 115 VAC or 125 VDC

• Input Impedance: 100 ohms

• Accuracy: ±0.1% full-scale

• Update Rate: Configurable between 16.6 ms and 400 ms

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Dimensions: 8.83 x 3.56 x 4.42 inches

• Weight: Approximately 4 pounds

Applications

• Process Control: Monitoring of pressure, temperature, flow, and level transmitters

• Factory Automation: Integration with PLCs for analog signal processing

• Building Management Systems: Environmental monitoring and control

• Energy Management: Data acquisition from energy meters and sensors

Why Choose the IC660BBA106?

• High Precision: 1 µA resolution for accurate signal measurement

• Robust Design: Suitable for harsh industrial environments

• Comprehensive Diagnostics: Facilitates quick troubleshooting and maintenance

• Seamless Integration: Compatible with GE Fanuc Genius I/O systems

Order Now

The GE Fanuc IC660BBA106 analog input block is available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
