GE IC660BBA021

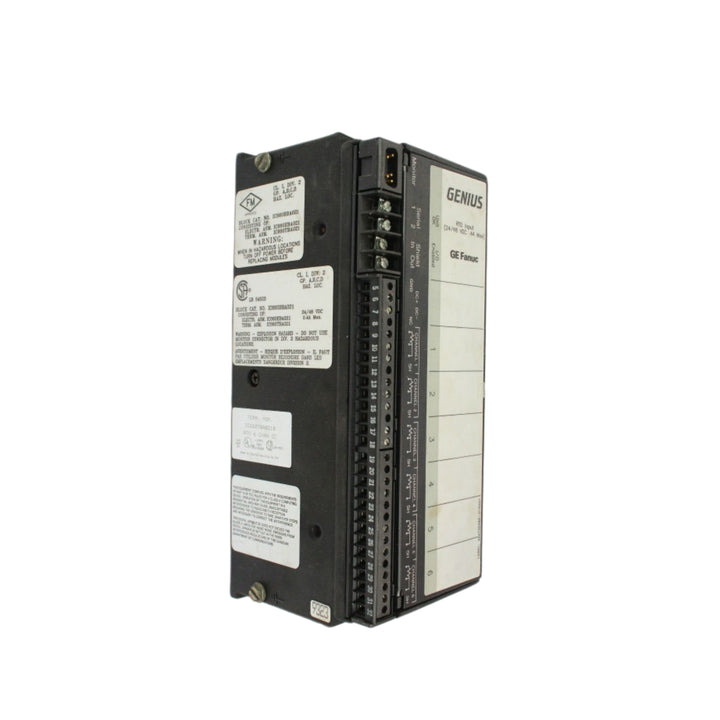

GE Fanuc IC660BBA021 | 6-Channel RTD Input Block | 24/48 VDC | Genius I/O Series

Overview

The GE Fanuc IC660BBA021 is a 6-channel RTD (Resistance Temperature Detector) input block designed for the Genius I/O system. It facilitates precise temperature monitoring in industrial environments by accepting inputs from platinum, nickel, or copper RTDs. With its robust design and advanced diagnostics, it ensures reliable operation in demanding applications.

Key Features

• Input Channels: 6 RTD inputs, grouped in three isolated pairs

• Supported RTD Types: Platinum (DIN 43760), Nickel (DIN 43760), Copper

• Input Resolution: 0.1°C

• Power Supply: 24/48 VDC

• Diagnostics: Open wire detection, short circuit detection, overrange/underrange indication, high/low alarms

• LED Indicators: Unit OK and I/O Enabled status LEDs

• Isolation: 1500V block-to-block, 300V group-to-group

• Mounting: Field-mountable design suitable for industrial environments

Technical Specifications

• Model Number: IC660BBA021

• Power Supply Voltage: 18–56 VDC (10% max. ripple)

• Power Supply Dropout Time: 10 ms

• Heat Dissipation: 7 Watts maximum

• Dimensions (H x W x D): 8.83 x 3.34 x 3.91 inches (224.4 x 84.8 x 99.3 mm)

• Weight: Approximately 4 lbs (1.8 kg)

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 100°C (-40°F to 212°F)

Applications

• Industrial Automation: Precise temperature monitoring in manufacturing processes

• Process Control: Integration into systems requiring accurate thermal measurements

• HVAC Systems: Monitoring and controlling heating, ventilation, and air conditioning

• Energy Management: Temperature data acquisition for energy-efficient operations

Why Choose the IC660BBA021?

• High Accuracy: 0.1°C resolution for precise temperature measurements

• Versatility: Supports multiple RTD types for diverse applications

• Robust Diagnostics: Comprehensive fault detection ensures system reliability

• Industrial-Grade Design: Built to withstand harsh operating conditions

• Easy Integration: Seamlessly integrates into Genius I/O networks

Order Now

The GE Fanuc IC660BBA021 RTD Input Block is available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
