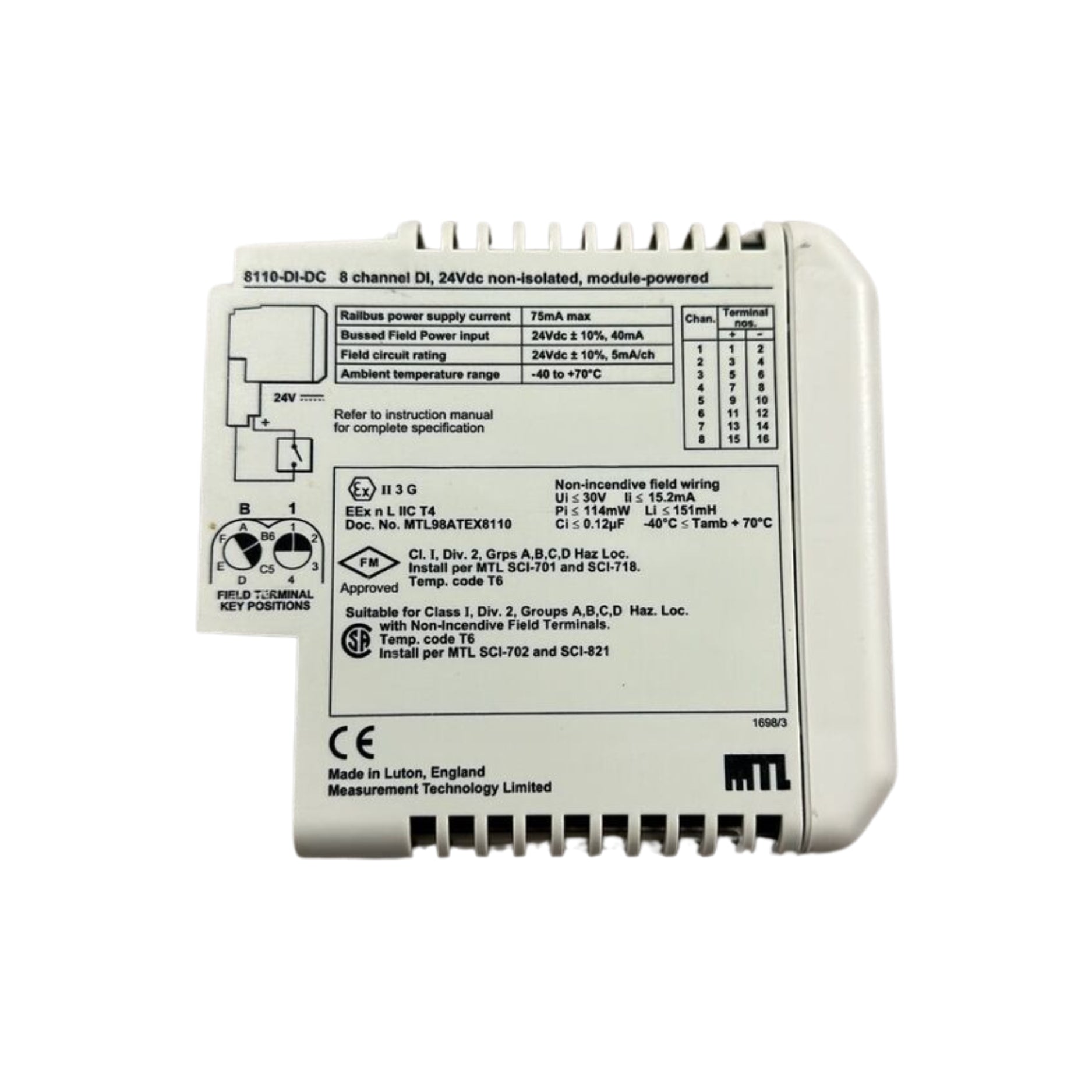

GE 8110-DI-DC

GE 8110-DI-DC | 8-Channel Digital Input Module for PAC8000 I/O Systems

Overview

The GE 8110-DI-DC is an 8-channel, 24VDC, non-isolated digital input module designed for the PAC8000 I/O system. It offers reliable performance in both general-purpose and hazardous area applications, making it ideal for industrial automation environments requiring robust and flexible I/O solutions.

Key Features

• Input Channels: 8 sourcing digital inputs

• Input Voltage: 24VDC field devices with user-definable input threshold

• Input Delay: Configurable between 2 to 512 milliseconds

• Current Consumption: 35 mA typical, 55 mA maximum

• Pulse Counting: Optional pulse counting capability

• Module Power: Powered via the module (no external power required)

• Operating Temperature Range: -40°C to +70°C

• Certifications: Suitable for Class I, Division 2, Groups A, B, C, D hazardous locations; ATEX Zone 2 compliant

Technical Specifications

• Model Number: 8110-DI-DC

• Input Type: Sourcing (non-isolated)

• Field Circuit Rating: 24VDC ±10%, 5 mA per channel

• Bussed Field Power Input: 24VDC ±10%, 40 mA

• Railbus Power Supply: 12VDC, 75 mA maximum

• Environmental Ratings:

  • Temperature: -40°C to +70°C

  • Humidity: 5% to 95% non-condensing

  • Shock: 30g

  • Vibration: 5g

• Dimensions: Approximately 42 mm (W) x 168 mm (D) x 37 mm (H)

• Weight: Approximately 190 grams

Applications

• Industrial Automation: Monitoring digital signals from sensors, switches, and other field devices

• Process Control Systems: Integration into distributed control systems (DCS) for process monitoring

• Hazardous Environments: Suitable for installations in areas classified as Class I, Division 2 or ATEX Zone 2

• Modular I/O Configurations: Seamless integration into PAC8000 modular I/O setups

Why Choose the 8110-DI-DC?

• Modular Design: Easily integrates into existing PAC8000 I/O systems

• Flexible Configuration: User-definable input thresholds and configurable input delays

• Robust Performance: Designed to operate in extreme temperatures and harsh industrial environments

• Hazardous Area Compliance: Certified for use in hazardous locations, ensuring safety and reliability

Order Now

The GE 8110-DI-DC digital input module is available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
