GE 8021-CE-LH

GE 8021-CE-LH | Left-Hand Carrier Extender for PAC8000 I/O Systems

Overview

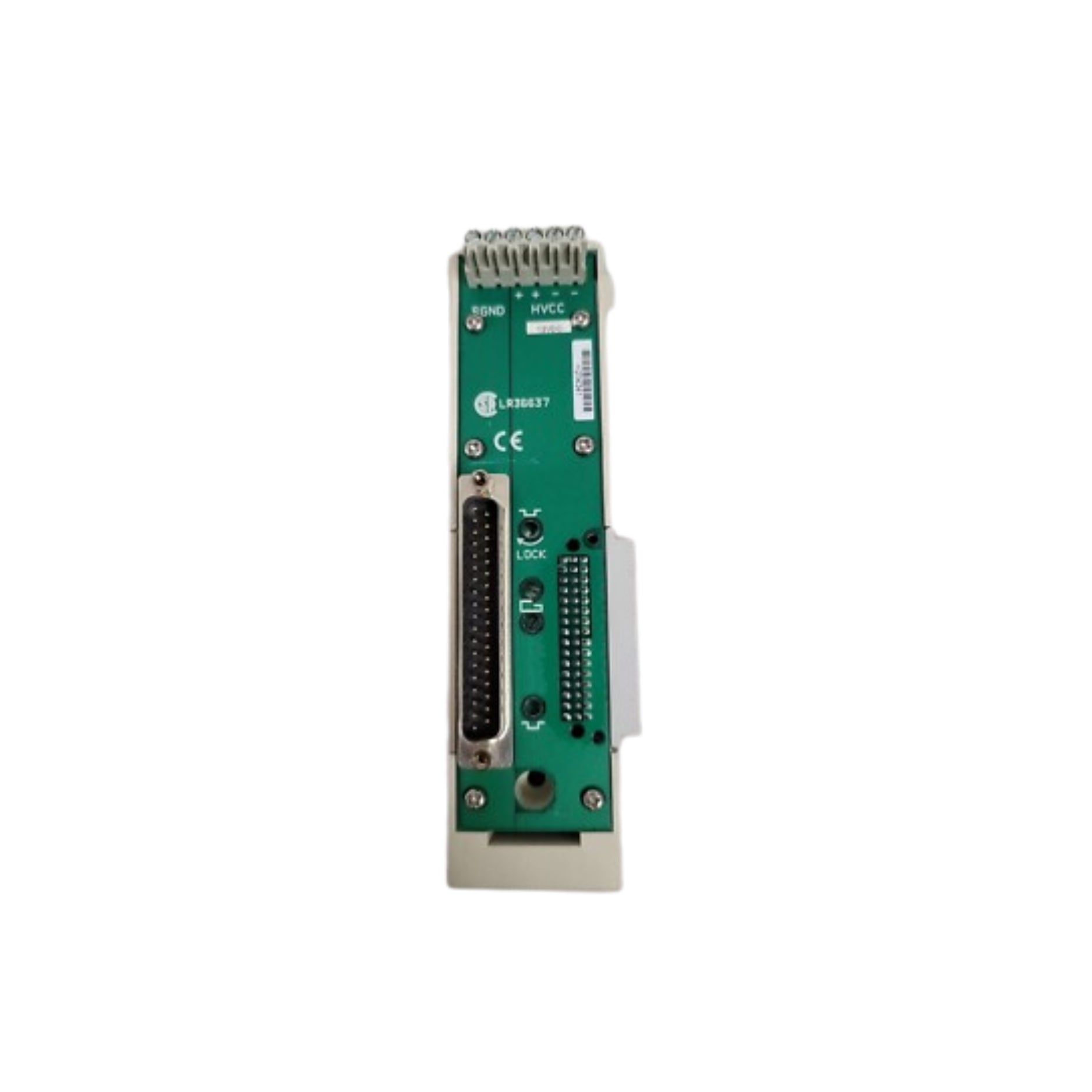

The GE 8021-CE-LH is a left-hand carrier extender designed for GE's PAC8000 I/O systems. It facilitates the extension of the Railbus and power supply across multiple carriers, ensuring seamless communication and power distribution in modular configurations. This component is essential for expanding I/O capacity while maintaining system integrity.

Key Features

• Function: Extends Railbus and power supply to additional carriers

• Compatibility: Designed for GE PAC8000 I/O systems

• Mounting: DIN rail or panel mount

• Connectors: Sub-D, 37-pin male connectors for extender cables

• System Power Connections: Screw terminals for HVCC+ and HVCC- lines, and SGND

• Usage: Supports up to 64 I/O module slots when used with right-hand extender (8020-CE-RH)

Technical Specifications

• Model Number: 8021-CE-LH

• Dimensions: 42 mm (W) x 168 mm (D) x 37 mm (H)

• Weight: Approximately 135 g

• Operating Temperature: -40°C to +70°C

• Mounting Method: Integral DIN-rail fixings compatible with EN 50022 and EN 50035 standards

• Electrical Connections:

  • Extender cable connectors: Sub-D, 37-pin male

  • System power cable connections: Screw terminals (x6)

  • System power cable conductor size: Up to 2.5 mm²

Applications

• Industrial Automation: Expanding I/O modules in process control systems

• Hazardous Environments: Suitable for Class I, Division 2 or Zone 2 areas

• Modular System Configurations: Facilitates the addition of carriers in large-scale automation setups

Why Choose the 8021-CE-LH?

• Scalability: Enables the expansion of PAC8000 I/O systems without compromising performance

• Reliability: Ensures continuous Railbus communication and power distribution

• Ease of Installation: Designed for straightforward integration into existing systems

• Compliance: Meets industry standards for hazardous location installations

Order Now

The GE 8021-CE-LH carrier extender is available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
