Fluke 8808A

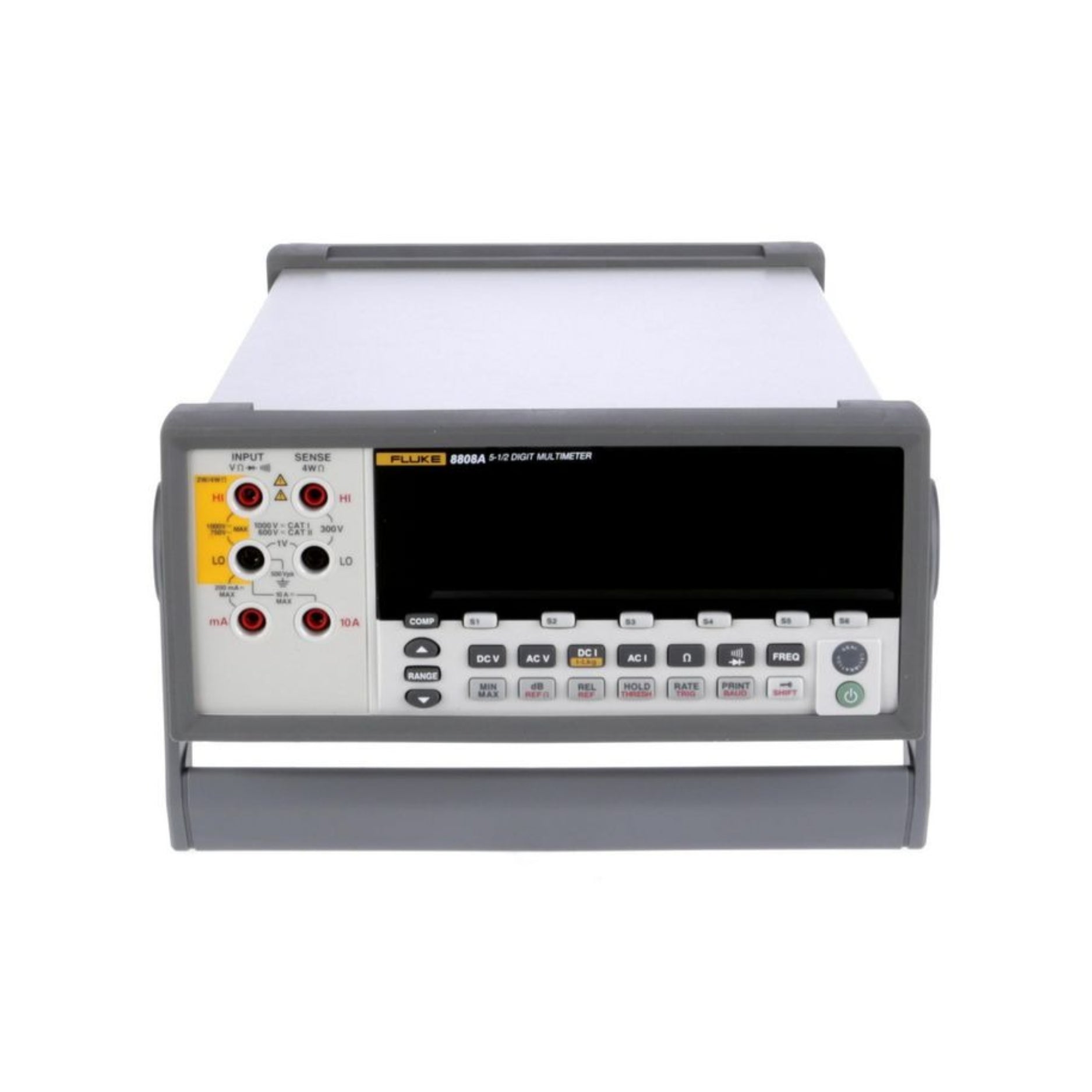

Fluke 8808A – Overview

The Fluke 8808A is a precision 5.5-digit bench multimeter designed for manufacturing, R&D, and service bench applications. It delivers high accuracy on DC voltage, supports dual simultaneous readouts, dedicated low-current (leakage) measurement, and four-wire resistance with split terminal connectors to simplify wiring. Designed for ease of use, it includes preset setup keys and pass/fail limit/comparison features to speed up repetitive tests.

Key Features

• 5.5-digit resolution

• DC voltage basic accuracy of 0.015 %

• Dual vacuum fluorescent display showing two parameters simultaneously

• Dedicated mode for measuring DC leakage currents with high sensitivity

• 2 × 4-wire (4-wire) ohms measurement using only two leads with special test lead accessory

• Six front-panel setup (“preset”) buttons for saving frequent measurement configurations

• Hi/Lo limit compare mode with clear pass/fail indicators

• True-RMS AC measurements

• Three-year warranty

Technical Specifications

• Model: Fluke 8808A

• DC Voltage Range: 200 mV … 1000 V; Resolution: 1 µV

• DC Voltage Accuracy: ±(0.015 % + 0.003 %)

• AC Voltage Range: 200 mV … 750 V; Resolution: 1 µV

• AC Voltage Accuracy: ±(0.2 % + 0.05 %)

• Frequency (Voltage) Range: 20 Hz … 100 kHz

• Resistance Range: 200 Ω … 100 MΩ; Resolution: 1 mΩ

• Resistance Accuracy: ±(0.02 % + 0.003 %)

• DC Current Range: 200 µA … 10 A; Resolution: 1 nA

• DC Current Accuracy: ±(0.02 % + 0.005 %)

• AC Current Range: 20 mA … 10 A; Resolution: 100 µA

• AC Current Accuracy: ±(0.3 % + 0.06 %)

• Frequency Measurement (general): 20 Hz … 1 MHz; Resolution: 0.1 mHz; Accuracy ±0.01 %

• Continuity/Diode Test Function: Yes

• Math / Display Functions: dB / dBm etc.; dual display; limit compare indicator

• Interfaces: RS-232; USB via adapter

• Dimensions: 88 × 217 × 297 mm

• Weight: approx. 2.1 kg

Applications

• Precision bench testing and measurements in electronics R&D

• Quality control in manufacturing where tight tolerances are required

• Measuring sensitive leakage currents and low resistance using four-wire technique

• Production line test setups with presets and pass/fail limits

Why Choose Fluke 8808A

• High resolution and accuracy for demanding measurement tasks

• Dual display and preset buttons speed up repetitive tests

• Sensitive leakage current mode protects circuits and improves accuracy at low levels

• Four-wire resistance measurement with only two leads reduces wiring complexity

Order Now

The Fluke 8808A Bench Digital Multimeter is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
