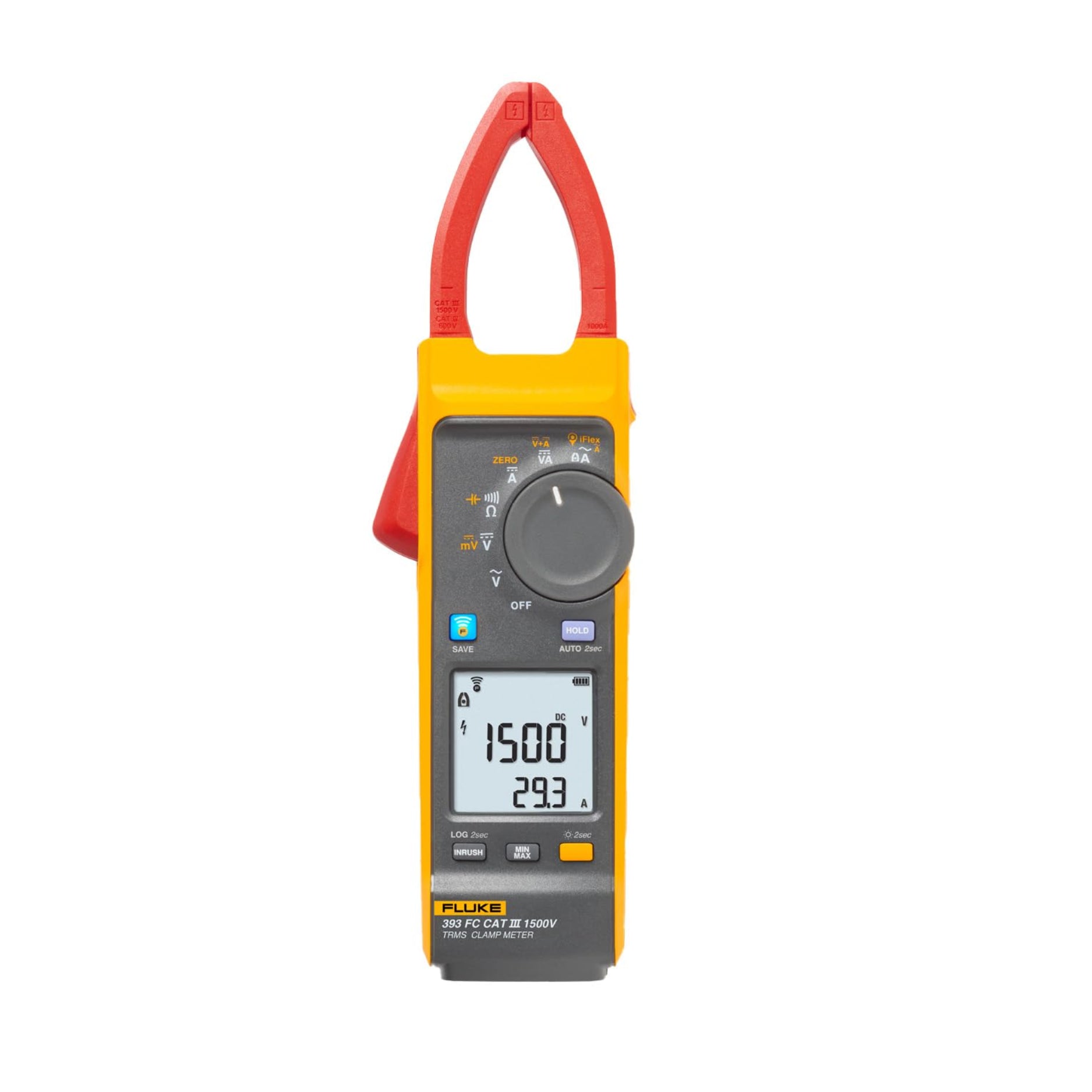

Fluke 393 FC

Fluke 393 FC – Overview

The Fluke 393 FC is a True-RMS clamp meter built for solar, battery, and renewable energy applications. It supports safe measurement up to 1500 V DC and includes a narrow jaw design for tight combiner box access. With capabilities such as DC power (kVA) measurement, logging, and wireless data via Fluke Connect, it is designed for technicians working in high-voltage DC systems.

Key Features

• Measures up to 1500 V DC and 1000 V AC

• True-RMS current up to 999.9 A via jaw

• iFlex flexible current probe extends AC measurement up to 2500 A

• DC power (kVA) calculation for renewable systems

• Thin 34 mm jaw for tight wiring access

• Audio polarity indicator and visual continuity

• Dual display for simultaneous voltage and current readings

• Wireless logging of up to 65,000 data points

• Rugged IP54-rated design for outdoor use

Technical Specifications

• Model: Fluke 393 FC

• AC Voltage: up to 1000 V

• DC Voltage: up to 1500 V

• AC Current (jaw): up to 999.9 A

• AC Current (iFlex probe): up to 2500 A

• DC Current: up to 999.9 A

• Resistance: up to 60 kΩ

• Capacitance: up to 1000 µF

• Frequency: up to 500 Hz

• DC Power: up to 1500 kVA

• Jaw Opening: 34 mm

• Display: Dual backlit with multiple readings

• Logging Memory: up to 65,000 points

• Protection Rating: IP54 (dust and splash resistant)

• Drop Resistance: up to 2 meters

• Operating Temperature: –10 °C to +50 °C

• Storage Temperature: –40 °C to +60 °C

• Weight: ~600 g

Applications

• Solar PV array testing and diagnostics

• Battery bank and DC system measurements

• Renewable energy system maintenance

• Troubleshooting motor drives and power electronics

Why Choose Fluke 393 FC

• Safely measures the highest DC voltage in its class

• Thin jaw and iFlex provide maximum flexibility in tight spaces

• Wireless data logging with large memory capacity

• Built rugged for harsh outdoor conditions

Order Now

The Fluke 393 FC Solar Clamp Meter is available and ships worldwide.
