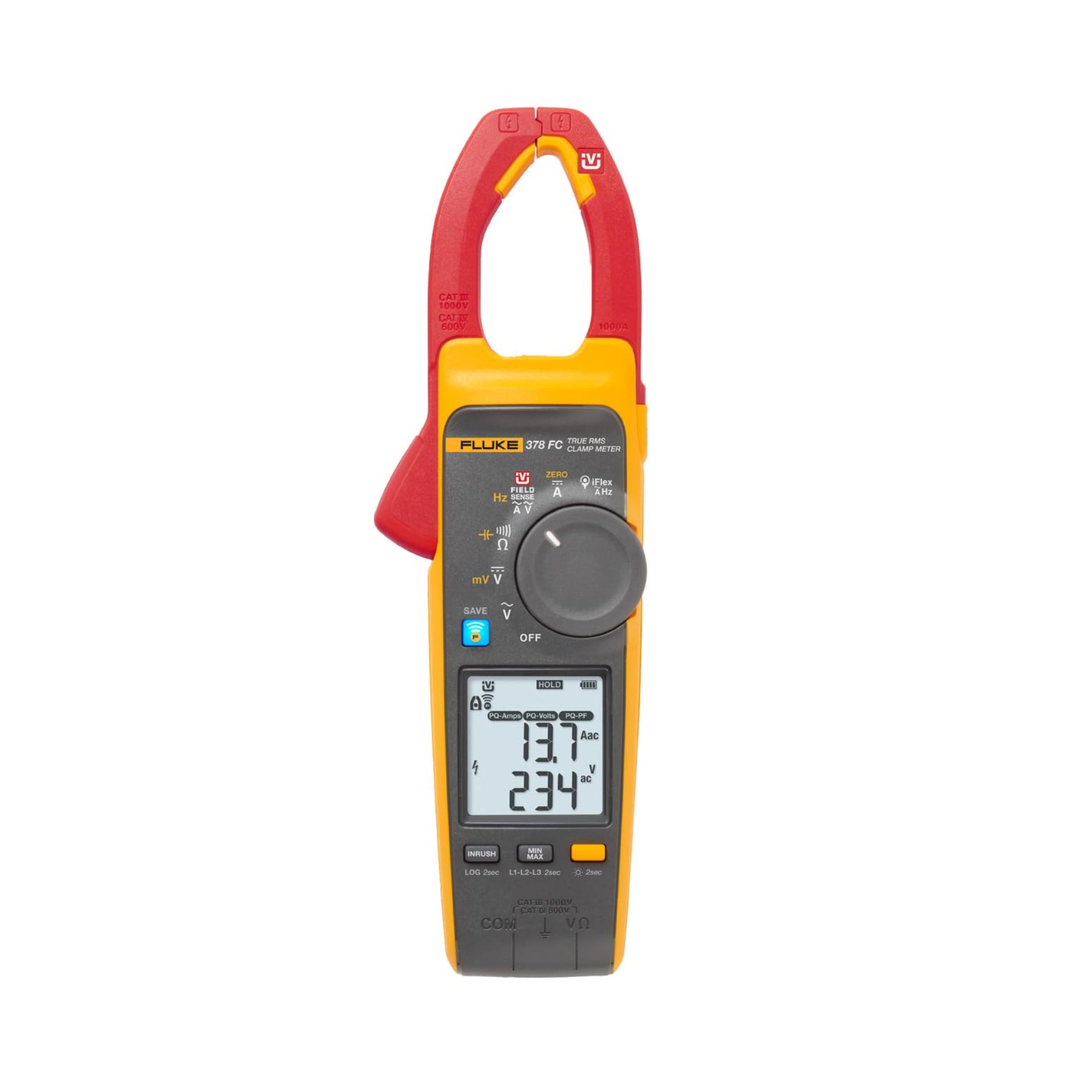

Fluke 378 FC – Overview

The Fluke 378 FC is an advanced clamp meter with FieldSense™ technology that lets you measure AC voltage and current without making direct contact with live conductors. It also includes the flexible iFlex probe for larger conductors, offers True-RMS accuracy, and features a built-in Power Quality Indicator. Wireless Fluke Connect compatibility allows easy data logging and sharing.

Key Features

• FieldSense non-contact voltage and current measurement

• Measures AC/DC current through clamp up to 999.9 A

• iFlex flexible current probe extends measurement range up to 2500 A AC

• True-RMS ensures accuracy on complex waveforms

• Power Quality Indicator identifies voltage, current, and power factor issues

• Measures AC/DC voltage, mV, resistance, and capacitance

• Dual display with backlight and HOLD function

• Wireless connectivity with Fluke Connect for data transfer and logging

Technical Specifications

• Model: Fluke 378 FC

• AC Current (Clamp): up to 999.9 A

• AC Current (iFlex): up to 2500 A

• DC Current: up to 999.9 A

• AC/DC Voltage with Leads: up to 1000 V

• AC Voltage (FieldSense): up to 1000 V

• DC mV Range: up to 500 mV

• Resistance Range: up to 60 kΩ

• Capacitance: up to 1000 µF

• Jaw Opening: 34 mm

• Flexible Probe Length: 1.8 m

• Display: Dual digital with backlight

• Battery: 2 × AA alkaline, approx. 200 hours life

• Operating Temperature: -10 … +50 °C

• Storage Temperature: -40 … +60 °C

• Humidity: up to 90 % non-condensing at lower temperatures

• Safety Rating: CAT IV 600 V / CAT III 1000 V

Applications

• Fast current and voltage checks without direct contact to live conductors

• Industrial maintenance, utility inspections, and field troubleshooting

• Diagnosing harmonics, inrush, or power factor problems

• Measuring current on large conductors where flexibility is needed

Why Choose Fluke 378 FC

• Safer, faster testing with FieldSense non-contact technology

• Extended current range with iFlex for large conductors

• True-RMS accuracy for real-world distorted signals

• Integrated Power Quality Indicator to detect problems early
