Fluke 116/323

Fluke 116/323 – Overview

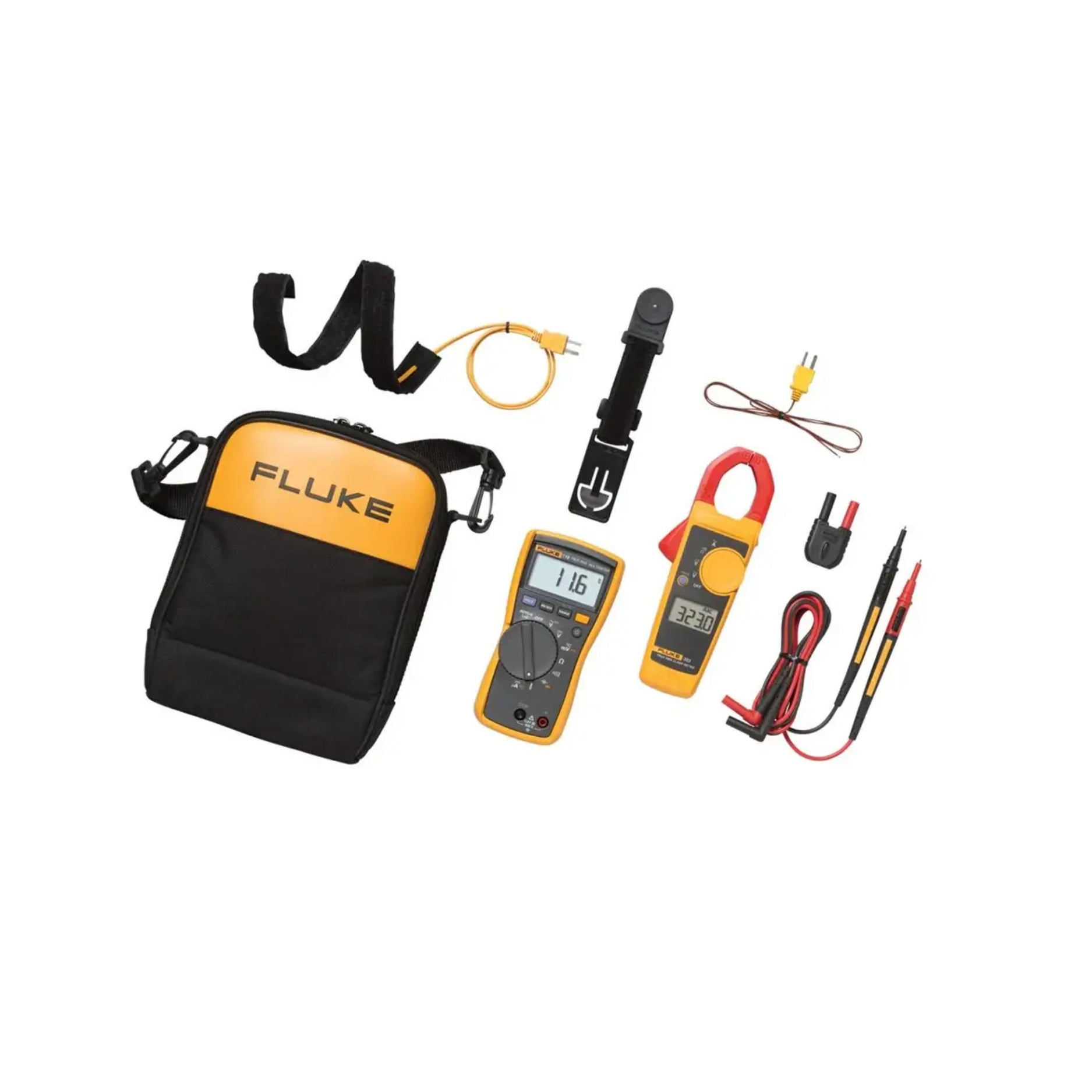

The Fluke 116/323 HVAC Combo Kit bundles a versatile HVAC multimeter with a True-RMS clamp meter, giving technicians a powerful and portable toolkit. The 116 offers built-in temperature measurement and microamp capability for flame sensors, while the 323 clamp meter provides current testing up to 400 A. The combo is ideal for HVAC, refrigeration, and general electrical troubleshooting.

Key Features

• Multimeter (116): built-in thermometer, microamp range, and AutoV/LoZ to prevent ghost voltage

• True-RMS voltage and current measurement

• Clamp meter (323): 400 A AC current range, 600 V AC/DC voltage range

• Measures resistance, continuity, capacitance, frequency, and diodes

• Large white LED backlight in the multimeter for low-light work

• Slim ergonomic design, suitable for one-hand use

• Rugged build with surge protection and safe operation ratings

Technical Specifications

Multimeter – Fluke 116

• Maximum Voltage (terminal to earth): 600 V

• Display: 6,000 counts, refresh ~4 per second

• DC voltage ranges: 6.000 V, 60.00 V, 600.0 V, with ±0.5 % + 2 counts accuracy

• AC voltage (True-RMS): up to 600 V, accuracy ~1.0 % + 3 (45–500 Hz)

• Continuity: beeper below ~20 Ω, open > 250 Ω

• Resistance: up to 40.00 MΩ, with typical accuracy ±0.9 % + 1

• Diode test: up to 2.000 V, accuracy ±0.9 % + 2

• Capacitance: to 9,999 µF, mixed accuracy tiers

• Temperature (Type-K): –40 °C to +400 °C, resolution 0.1 °C, accuracy ~1 % + offset

• Microamp ranges (AC/DC): up to 600.0 µA, accuracy ~1 % + 2

• Operating temp: –10 °C to +50 °C; Storage: –40 °C to +60 °C

• Battery: 9 V alkaline, ~400 h typical usage

Clamp Meter – Fluke 323

• AC current (jaw): up to 400 A, accuracy ~2.0 % + 5 digits (45–65 Hz)

• AC/DC voltage range: up to 600 V

• Resistance: up to 40 kΩ

• Continuity: audible for ≤ ~70 Ω

• True-RMS AC measurement

• Jaw opening: ~30 mm

• Safety rating CAT III 600 V, CAT IV 300 V

• Dimensions & weight: compact for field use

Applications

• HVAC and refrigeration diagnostics (thermocouples, flame sensors)

• Electrical system troubleshooting (voltage, current, resistance)

• Panel testing, wiring inspection, and load measurements

• Field work where both multimeter and clamp meter are needed

Why Choose Fluke 116/323

• Combines specialized HVAC measurement (temp + microamps) with a robust clamp meter

• True-RMS capabilities provide accurate results on modern electronics

• AutoV/LoZ helps avoid false volt readings in capacitive circuits

• Compact, rugged, and field-ready — one kit replaces two tools

Order Now

The Fluke 116/323 HVAC Combo Kit is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
