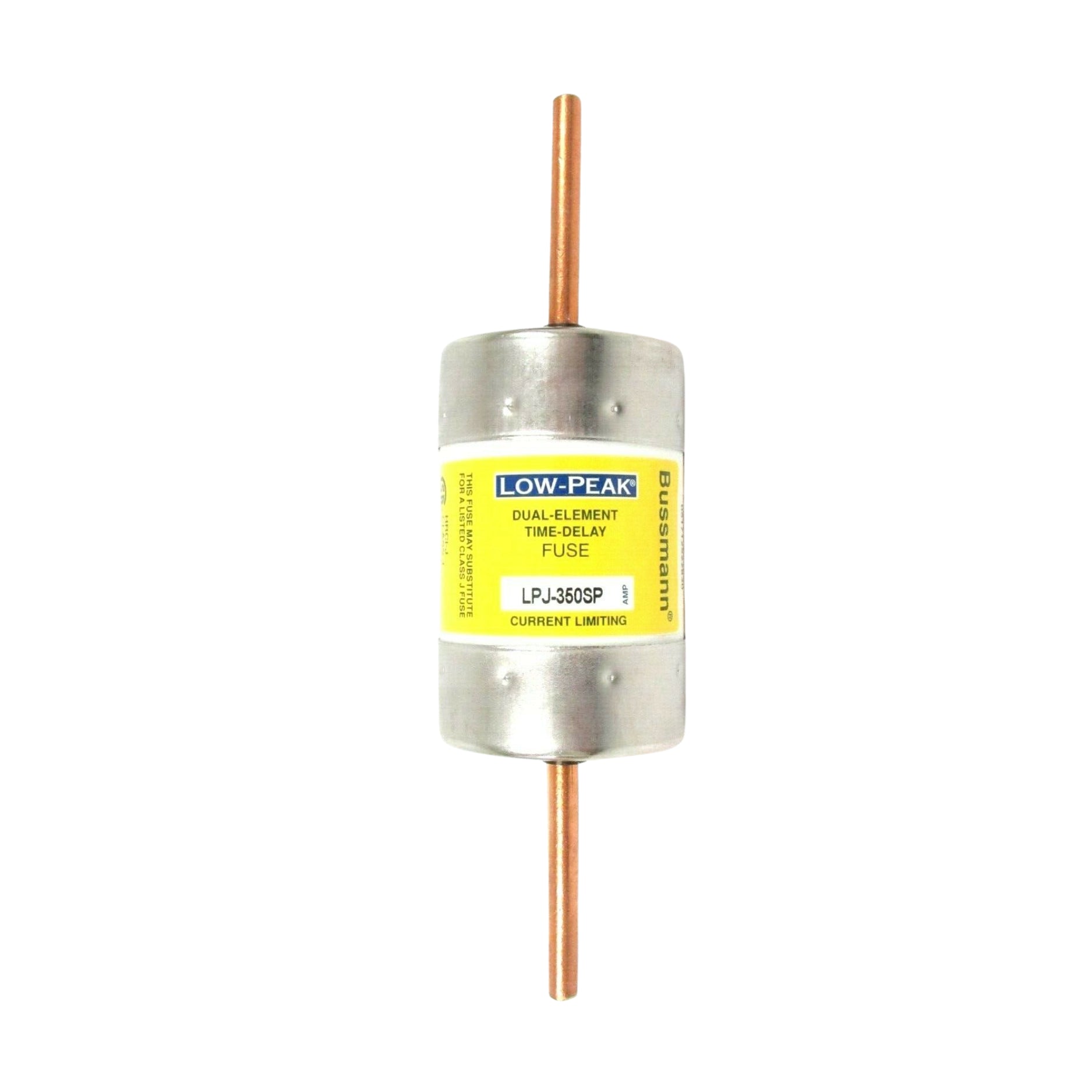

Bussmann LPJ-350SP

Eaton Bussmann LPJ-350SP

Overview

The Eaton Bussmann LPJ-350SP is a Class J dual-element time-delay fuse designed to provide reliable overcurrent protection for demanding industrial applications. With a 350 A rating and voltage capacity of 600 V AC / 300 V DC, this fuse delivers superior performance in motor circuits and high in-rush current environments.

Its current-limiting and time-delay characteristics prevent nuisance openings while offering protection against short circuits and overloads. Featuring bolted blade connections, the LPJ-350SP ensures secure installation and durability in harsh operating conditions.

Key Features

• Amperage Rating: 350 A

• Voltage Rating: 600 V AC / 300 V DC

• Interrupt Rating: 300 kAIC (AC), 100 kAIC (DC)

• Class J, dual-element fuse

• Time-delay and current-limiting design

• Response Time: 10 seconds at 500% overload

• Bolted blade end x bolted blade end connection

• High in-rush current motor protection

• CE Marked and RoHS Compliant

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: LPJ-350SP

• UPC: 051712522830

• Fuse Class: J

• Fuse Type: Time-delay, current-limiting

• Elements: Dual

• Dimensions: 7.13 in (L) × 2 in (H) × 2 in (W)

• Weight: 1.5 lb

• Packaging Type: Standard

• Warranty: Not Applicable

Applications

• Motor circuit protection

• Transformers and inductive loads

• Industrial power distribution systems

• High in-rush current circuits

• General-purpose branch and feeder protection

Why Choose the Eaton Bussmann LPJ-350SP

• High interrupt rating for maximum system safety

• Dual-element design for overload and short-circuit protection

• Time-delay feature reduces nuisance fuse openings

• Secure bolted blade connection for industrial use

• Trusted Bussmann performance in demanding applications

Order Now

The Eaton Bussmann LPJ-350SP Class J fuse is available and ships worldwide.

Return to the Bussmann Fuses collection.

Browse the Industrial Fuses main category explore our full range.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
