Bussmann LP-CC-2-1/2

Eaton Bussmann LP-CC-2-1/2

Overview

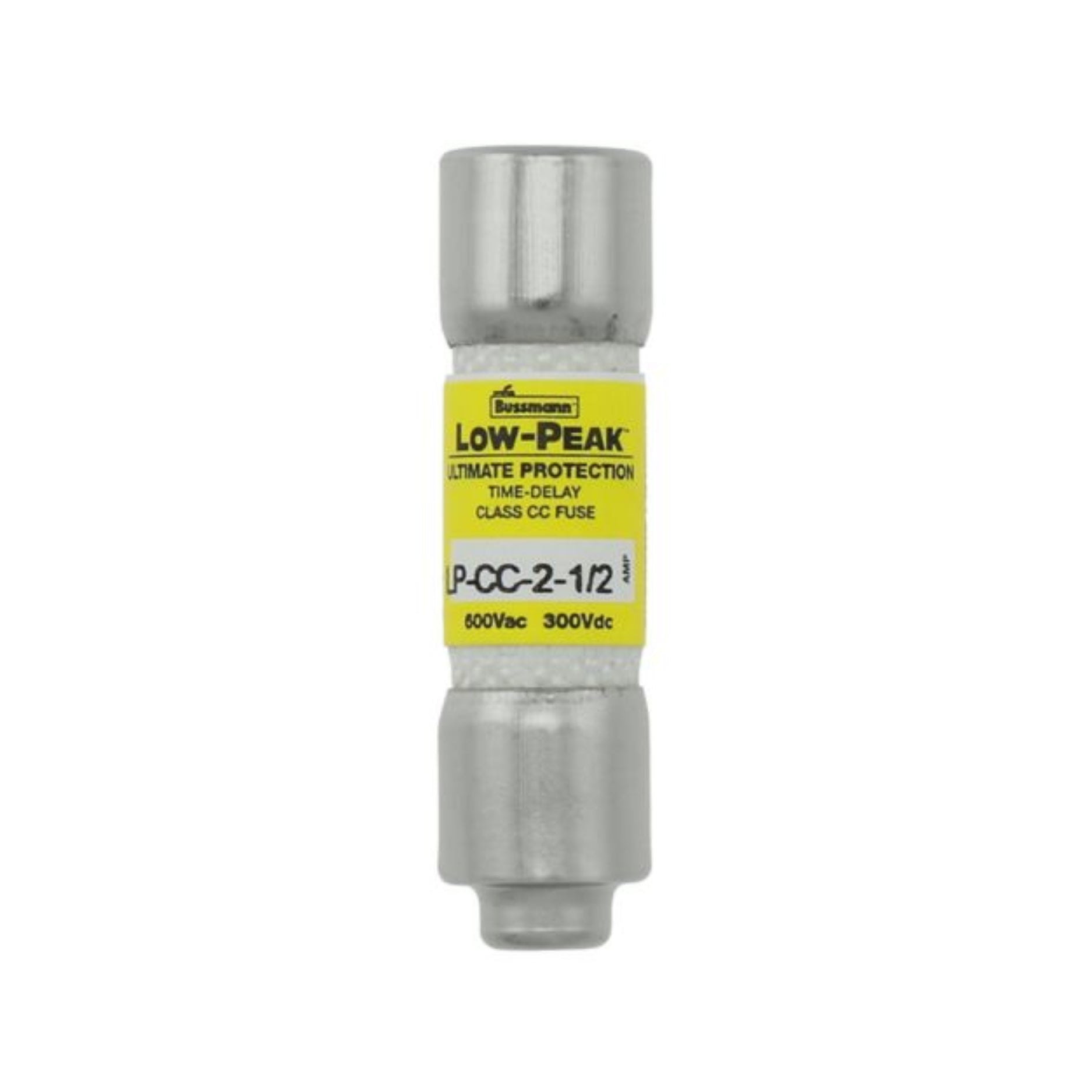

The Eaton Bussmann LP-CC-2-1/2 is a Class CC dual-element time-delay fuse designed to protect specialized circuits and industrial control systems. Rated at 2.5 A, it supports up to 600 V AC and 300 V DC operation, with interrupt ratings of 200 kAIC (AC) and 20 kAIC (DC). Its time-delay characteristics handle high inrush currents, making it ideal for sensitive equipment and transformer loads. The current-limiting rejection-style design prevents improper fuse substitution and ensures maximum system protection.

Key Features

• Amperage Rating: 2.5 A

• Voltage Rating: 600 V AC / 300 V DC

• Interrupt Rating: 200 kAIC (AC), 20 kAIC (DC)

• Dual-element, current-limiting fuse

• Time-delay performance for inrush tolerance

• Ferrule x ferrule connection

• Rejection-style design for safety

• Non-indicating type

• CE Marked, RoHS Compliant, UL Listed, CSA Certified

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: LP-CC-2-1/2

• UPC: 051712180542

• Fuse Class: Class CC, time-delay

• Number of Elements: Dual

• Response Time: 12 seconds at 200% overload

• Dimensions: 1.5 in (L) × 0.41 in (W) × 0.41 in (H)

• Weight: 0.15 lb

• Body Material: Melamine tube

• Connection: Ferrule end x ferrule end

• Packaging: Standard (Qty: 10)

• Warranty: Not Applicable

Applications

• Specialized control circuits

• Industrial automation equipment

• Branch circuit protection

• Motor and transformer loads

• Sensitive equipment requiring time-delay protection

Why Choose the Eaton Bussmann LP-CC-2-1/2

• Reliable Class CC fuse with dual-element design

• Handles inrush currents without nuisance tripping

• Current-limiting protection reduces fault energy

• Rejection-style design prevents misapplication

• Certified to UL, CSA, CE, and RoHS standards

Order Now

The Eaton Bussmann LP-CC-2-1/2 Class CC time-delay fuse is available and ships worldwide.
