Bussmann LP-CC-1-1/2

Eaton Bussmann LP-CC-1-1/2

Overview

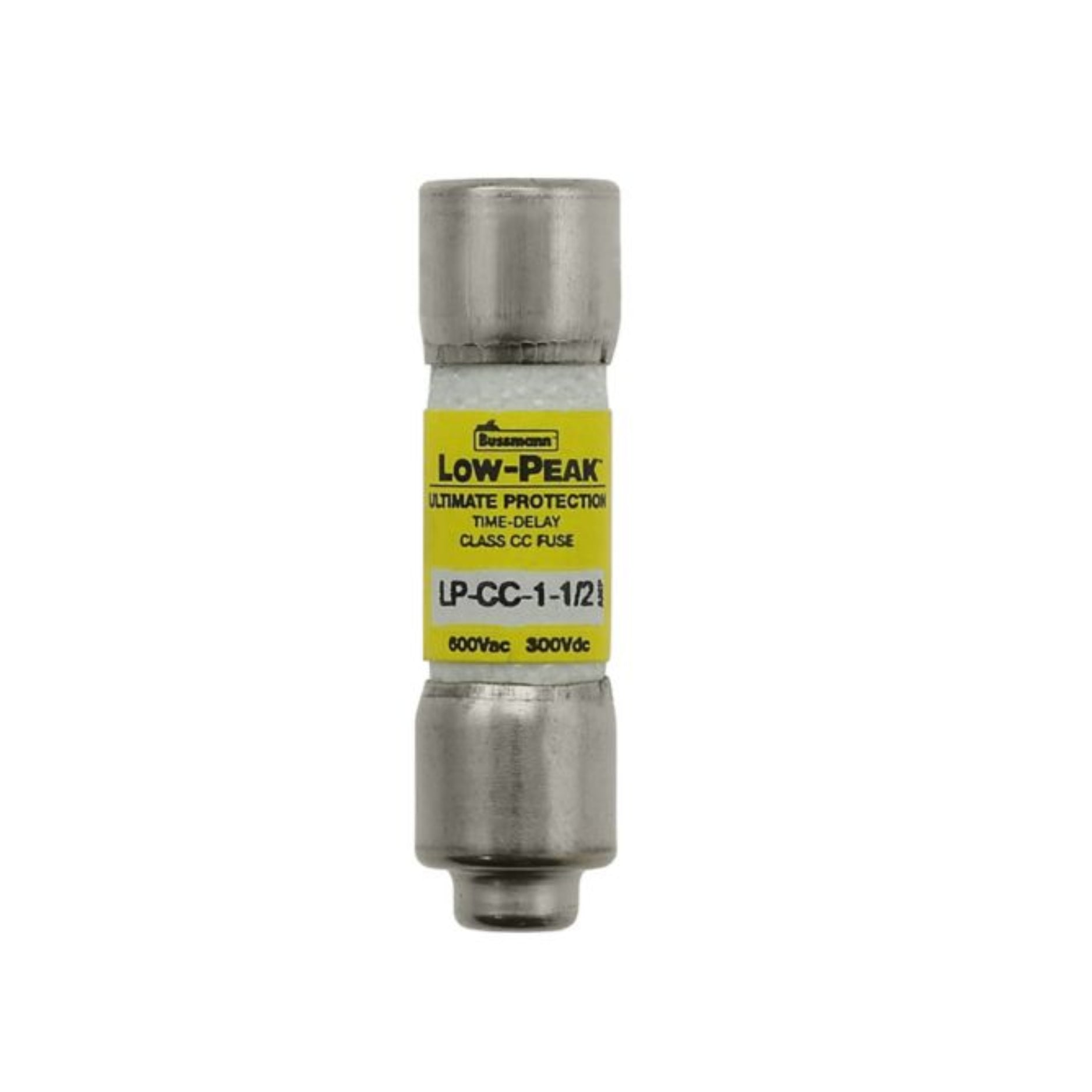

The Eaton Bussmann LP-CC-1-1/2 is a Class CC dual-element time-delay fuse designed for reliable circuit protection in specialized circuits and industrial control applications. Rated at 1.5 A, it supports up to 600 V AC and 300 V DC operation with high interrupting capacities of 200 kAIC (AC) and 20 kAIC (DC). Its time-delay characteristics allow for inrush current handling, while the current-limiting rejection-style design prevents improper fuse substitution, ensuring maximum system safety.

Key Features

• Amperage Rating: 1.5 A

• Voltage Rating: 600 V AC / 300 V DC

• Interrupt Rating: 200 kAIC (AC), 20 kAIC (DC)

• Dual-element construction

• Current-limiting, time-delay performance

• Ferrule x ferrule connection

• Rejection-style fuse for enhanced safety

• Non-indicating type

• CE Marked, RoHS Compliant, UL Listed, CSA Certified

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: LP-CC-1-1/2

• UPC: 051712180474

• Fuse Type: Class CC, time-delay, current-limiting

• Number of Elements: Dual

• Response Time: 12 seconds at 200% overload

• Dimensions: 1.5 in (L) × 0.41 in (W) × 0.41 in (H)

• Weight: 0.15 lb

• Body Material: Melamine tube

• Connection: Ferrule end x ferrule end

• Packaging: Standard (Qty: 10)

• Warranty: Not Applicable

Applications

• Specialized control circuits

• Industrial automation systems

• Protection of branch circuits

• Motor and transformer loads

• Equipment requiring time-delay and current-limiting fuses

Why Choose the Eaton Bussmann LP-CC-1-1/2

• Dual-element design for superior overload and short-circuit protection

• Current-limiting performance reduces equipment damage risk

• Rejection-style construction prevents misapplication

• Certified to UL, CSA, CE, and RoHS standards

• Trusted Bussmann reliability for industrial environments

Order Now

The Eaton Bussmann LP-CC-1-1/2 Class CC time-delay fuse is available and ships worldwide.
