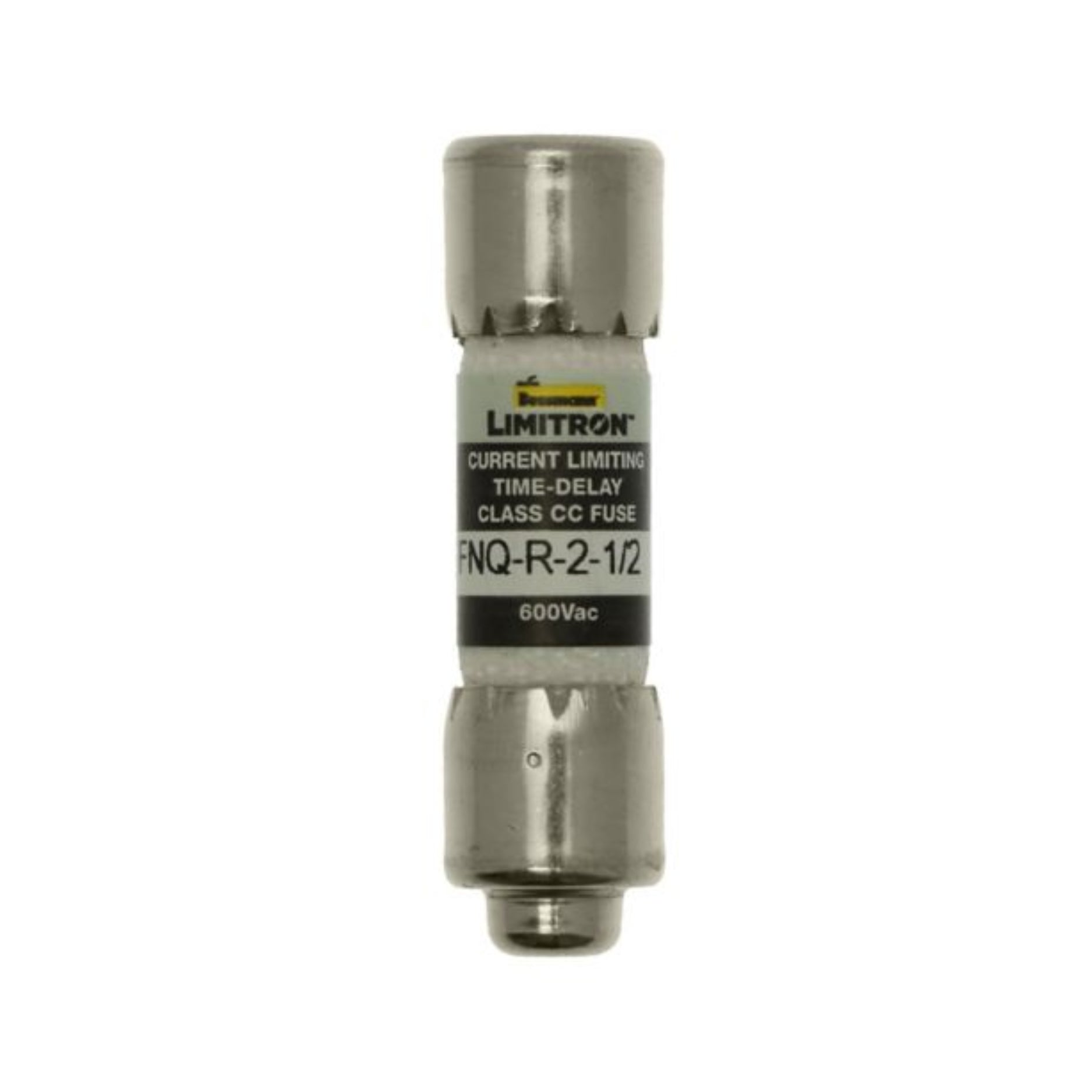

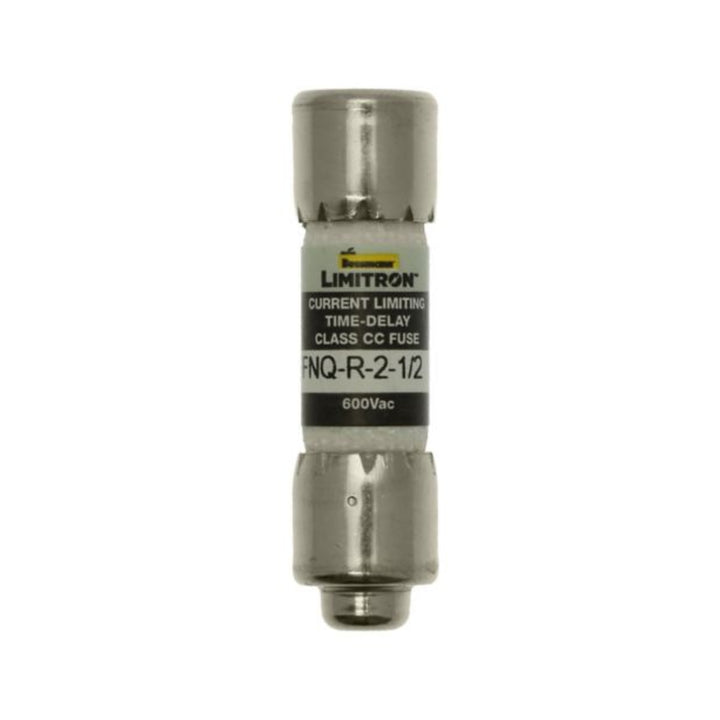

Bussmann FNQ-R-2-1/2

Eaton Bussmann FNQ-R-2-1/2

Overview

The Eaton Bussmann FNQ-R-2-1/2 is a Class CC current-limiting time-delay fuse rated at 2.5 A and 600 V. With a high interrupt rating of 200 kAIC, this fuse is built to provide reliable overcurrent protection for small control transformers, branch circuits, and industrial control systems. Its time-delay characteristics allow it to handle high inrush currents, making it ideal for sensitive loads and transformer protection. Designed with a rejection-style feature, it prevents the substitution of fuses with lower interrupting ratings, ensuring safety and compliance.

Key Features

• Amperage Rating: 2.5 A

• Voltage Rating: 600 V

• Interrupt Rating: 200 kAIC

• Class CC, current-limiting design

• Time-delay fuse with high inrush tolerance

• Ferrule x ferrule connection

• Non-indicating type

• Rejection-style construction

• CE marked and RoHS compliant

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: FNQ-R-2-1/2

• UPC: 051712147071

• EAN: 5027590449694

• Fuse Type: Current-limiting, high inrush time-delay

• Class: Class CC

• Dimensions: 1.5 in (L) × 0.41 in (W) × 0.41 in (H)

• Weight: 0.015 lb

• Body Material: Melamine tube

• Packaging: Standard

• Response Time: 12 sec at 200%

• Warranty: Not Applicable

Applications

• Line protection

• Small control transformers

• Industrial control circuits

• Branch circuit protection

• Equipment requiring inrush tolerance

Why Choose the Eaton Bussmann FNQ-R-2-1/2

• Reliable Class CC time-delay protection

• Handles high inrush currents without nuisance tripping

• High interrupt rating up to 200 kAIC

• Rejection-style design for added safety

• Backed by Eaton Bussmann engineering quality

Order Now

The Eaton Bussmann FNQ-R-2-1/2 Class CC time-delay fuse is available and ships worldwide.

Return to the Bussmann Fuses collection.

Browse the Industrial Fuses main category explore our full range.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
