Bussmann C10G2

Eaton Bussmann C10G2

Overview

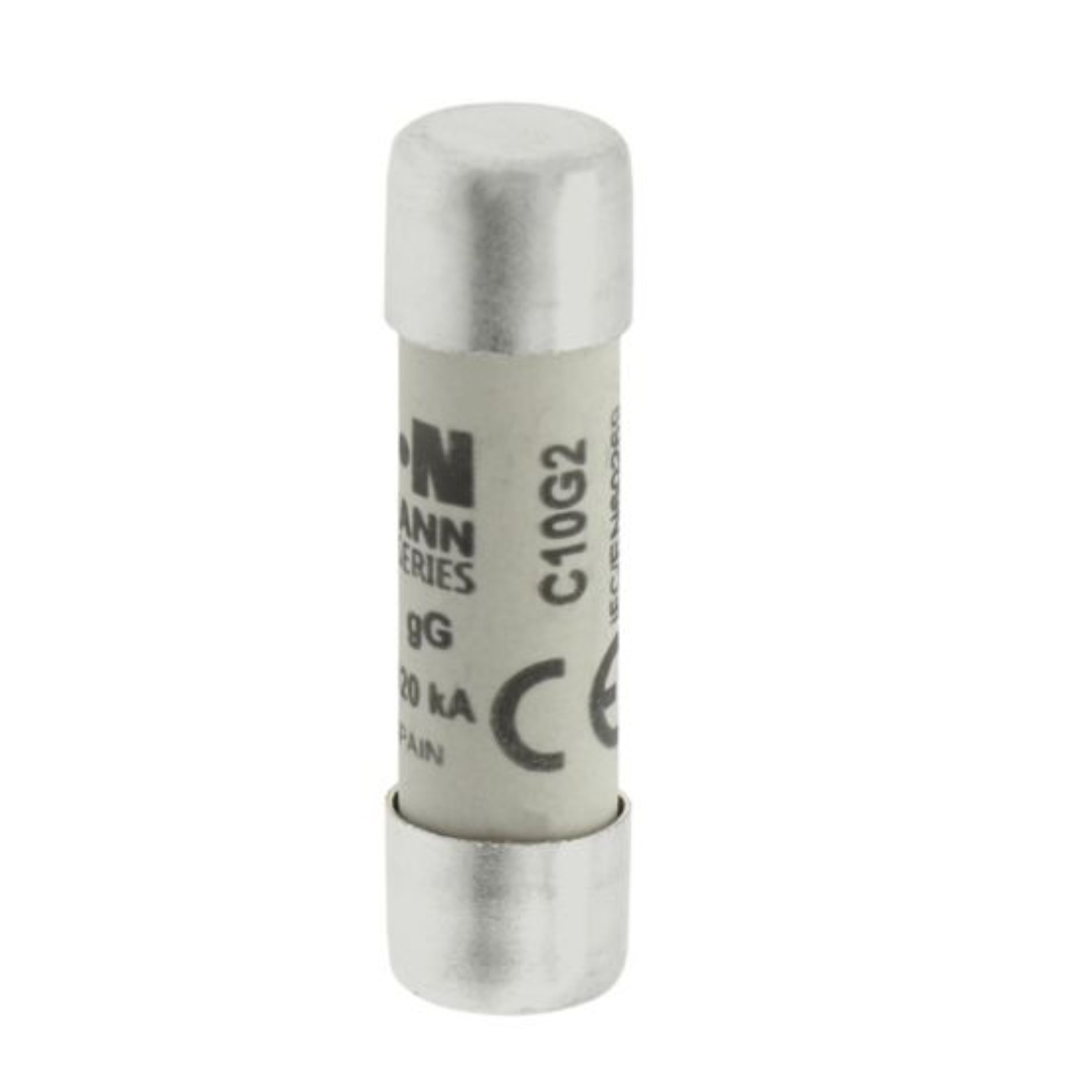

The Eaton Bussmann C10G2 is a low voltage cylindrical fuse designed for industrial and general-purpose applications. Rated at 2 A and 500 V AC, this Class C gL/gG fuse offers reliable cable and equipment protection with a breaking capacity of 120 kA. Built with a ceramic body and ferrule connections (10 x 38 mm), it ensures durability, high performance, and compatibility with CHM modular fuse holders.

Key Features

• Amperage Rating: 2 A

• Voltage Rating: 500 V AC

• Breaking Capacity: 120 kA

• Fuse Size: 10 x 38 mm

• Class C, gL/gG utilization category

• Ceramic cylindrical body

• Ferrule x ferrule connection

• Watt Loss: 0.6 W

• CE Marked, RoHS Compliant, GoST-R certified

• IEC 60269 compliant

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: C10G2

• Model Code: Cylindrical Fuse 10 × 38, 2 A GG, 500 V AC

• UPC: 051712754224

• EAN: 5027590493468

• Fuse Type: Cylindrical, low voltage

• Construction Size: 10 mm × 38 mm

• Dimensions: 38 mm (L) × 10 mm (H) × 10 mm (W)

• Weight: 8.2 g

• Frequency Range: 45–62 Hz

• Mounting: Holder-based (suitable for CHM modular fuse holder)

• Packaging: Standard (Qty: 10)

Applications

• Industrial equipment protection

• Cable and line protection

• General-purpose electrical circuits

• Power distribution panels

• Use with CHM modular fuse holders

Why Choose the Eaton Bussmann C10G2

• Compact 10 × 38 mm cylindrical fuse design

• High breaking capacity of 120 kA for reliability

• Versatile gL/gG utilization category protection

• Compatible with CHM modular fuse holders

• Certified to IEC 60269, CE, RoHS, and GoST-R standards

Order Now

The Eaton Bussmann C10G2 cylindrical fuse is available and ships worldwide.
