Bussmann C10G10

Eaton Bussmann C10G10

Overview

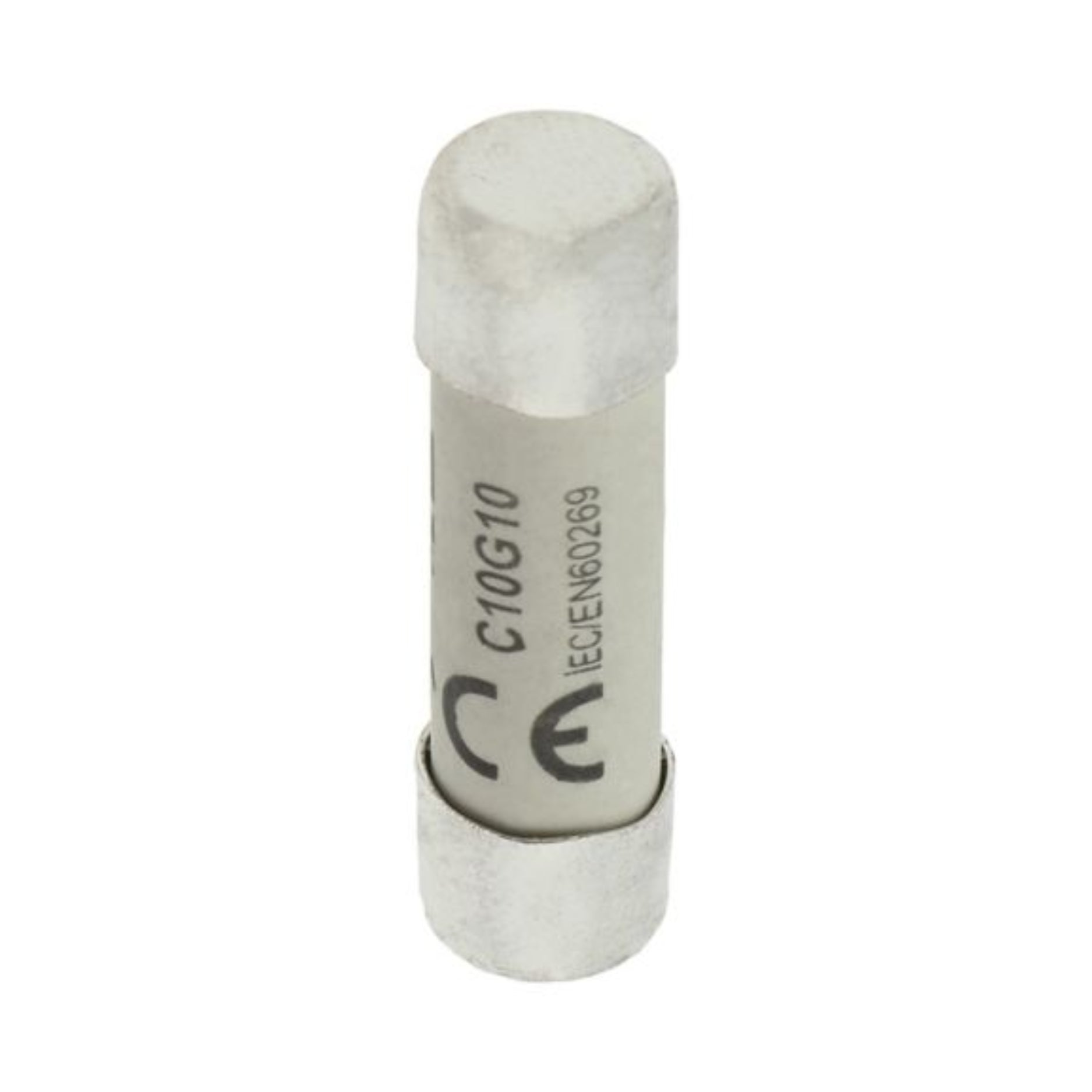

The Eaton Bussmann C10G10 is a low voltage cylindrical fuse designed for reliable protection of cables and equipment in both industrial and general-purpose electrical applications. With a 10 A rating and 500 V AC capacity, this Class C gL/gG fuse ensures safe and efficient performance. Built with a ceramic body and ferrule connections (10 × 38 mm), it is highly durable, compact, and fully compatible with CHM modular fuse holders.

Key Features

• Amperage Rating: 10 A

• Voltage Rating: 500 V AC

• Breaking Capacity: 120 kA

• Fuse Size: 10 × 38 mm

• Class C, gL/gG utilization category

• Ceramic cylindrical body construction

• Ferrule x ferrule connection

• Watt Loss: 1 W

• CE Marked, RoHS Compliant, GoST-R certified

• IEC 60269 compliant

• 1-year limited warranty

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: C10G10

• Model Code: Cylindrical Fuse 10 × 38, 10 A GG, 500 V AC

• UPC: 051712754262

• EAN: 5027590493390

• Fuse Type: Cylindrical, low voltage

• Construction Size: 10 × 38 mm

• Dimensions: 38 mm (L) × 10 mm (H) × 10 mm (W)

• Weight: 8.2 g

• Frequency Range: 45–62 Hz

• Mounting: Holder-based (compatible with CHM modular fuse holder)

• Packaging: Standard (Qty: 10)

Applications

• Industrial electrical protection

• Cable protection

• Equipment protection

• General-purpose circuits

• Use with CHM modular fuse holders

Why Choose the Eaton Bussmann C10G10

• Reliable fuse protection up to 500 V AC

• High breaking capacity of 120 kA

• Compact 10 × 38 mm cylindrical design

• Compatible with CHM modular holders

• Certified to IEC 60269, CE, RoHS, and GoST-R standards

Order Now

The Eaton Bussmann C10G10 cylindrical fuse is available and ships worldwide.
