Bussmann 170M6814D

Eaton Bussmann 170M6814D

Overview

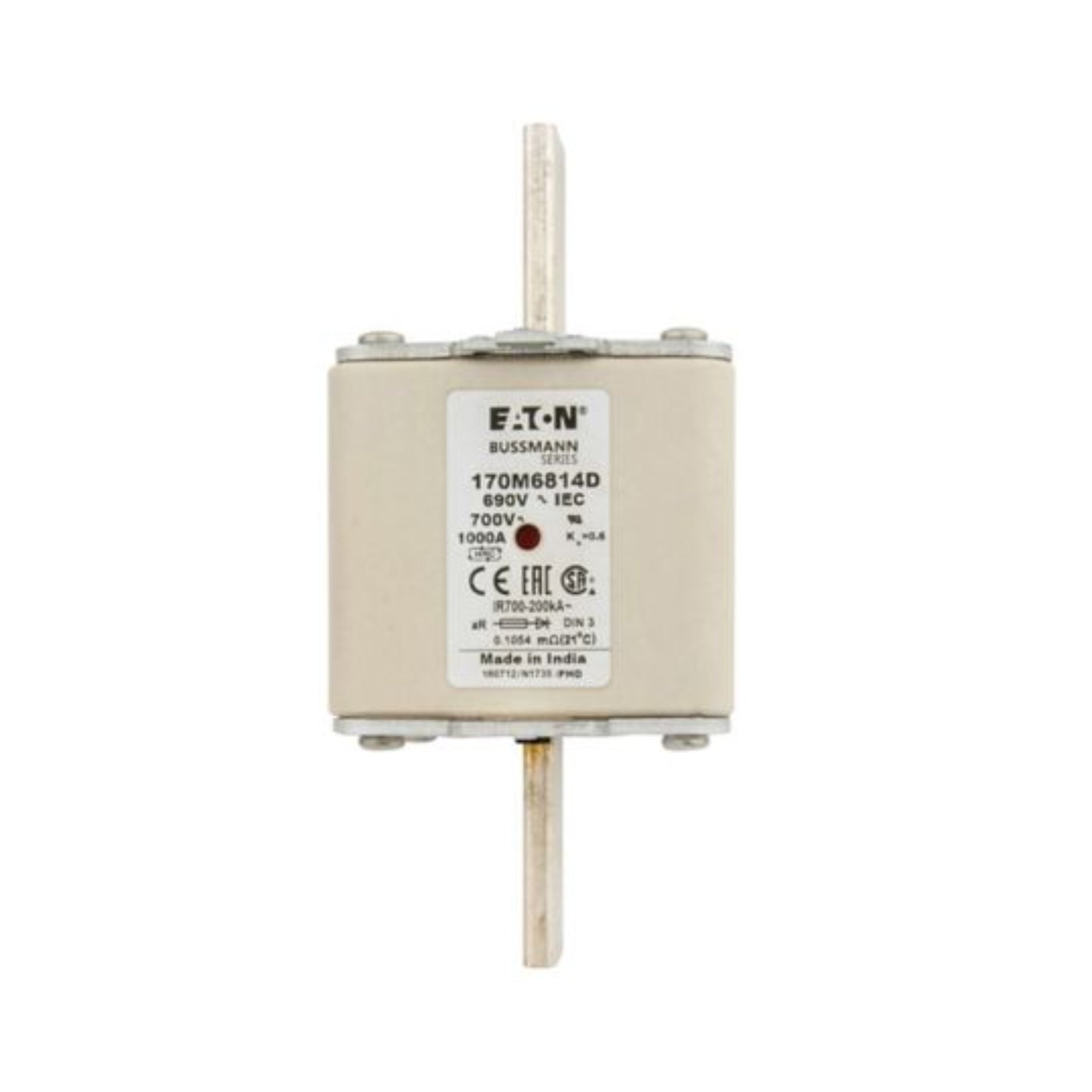

The Eaton Bussmann 170M6814D is a high-speed square body fuse designed for semiconductor protection and power electronics. Rated at 1000 A with a 690 V AC (IEC) / 700 V AC (UL) voltage capacity, this Class aR fuse offers fast-acting performance and a high breaking capacity of 200 kA. Built to the DIN 43-620 standard with knife blade contacts, it provides secure installation, efficient power handling, and long-term reliability in demanding environments.

Equipped with a dual combination status indicator, the 170M6814D ensures quick and safe fuse condition monitoring, reducing downtime in critical applications.

Key Features

• Amperage Rating: 1000 A

• Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)

• Interrupt Rating: 200 kAIC

• Fuse Class: aR (semiconductor protection)

• Fuse Size: 3, square body design

• DIN 43-620 knife blade contacts

• Dual combination fuse status indicator

• Clearing I²t: 985,000 at 660 V

• Pre-arc I²t: 140,000

• Watt Loss: 56 W

• CE Marked, RoHS Compliant, UL Recognized, IEC Rated

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: 170M6814D

• UPC: 051712335270

• EAN: 5027590463287

• Fuse Type: High-speed, semiconductor fuse

• Fuse Shape: Square body, knife blade contacts

• Construction Size: 3

• Dimensions: 150 mm (L) × 87 mm (H) × 71 mm (W)

• Weight: 1112 g

• Packaging: Standard

• Compliance: IEC 60269, UL standards, CE, RoHS

Applications

• Semiconductor protection

• DC common bus systems

• DC motor drives and inverters

• Power converters and rectifiers

• High-power electronic circuits

Why Choose the Eaton Bussmann 170M6814D

• High-speed fuse designed for semiconductor protection

• Massive 200 kA breaking capacity

• Dual indicator for quick status monitoring

• Rugged square body with knife blade contacts

• Trusted Bussmann reliability for critical systems

Order Now

The Eaton Bussmann 170M6814D high-speed square body fuse is available and ships worldwide.

Return to the Bussmann Fuses collection.

Browse the Industrial Fuses main category explore our full range.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
