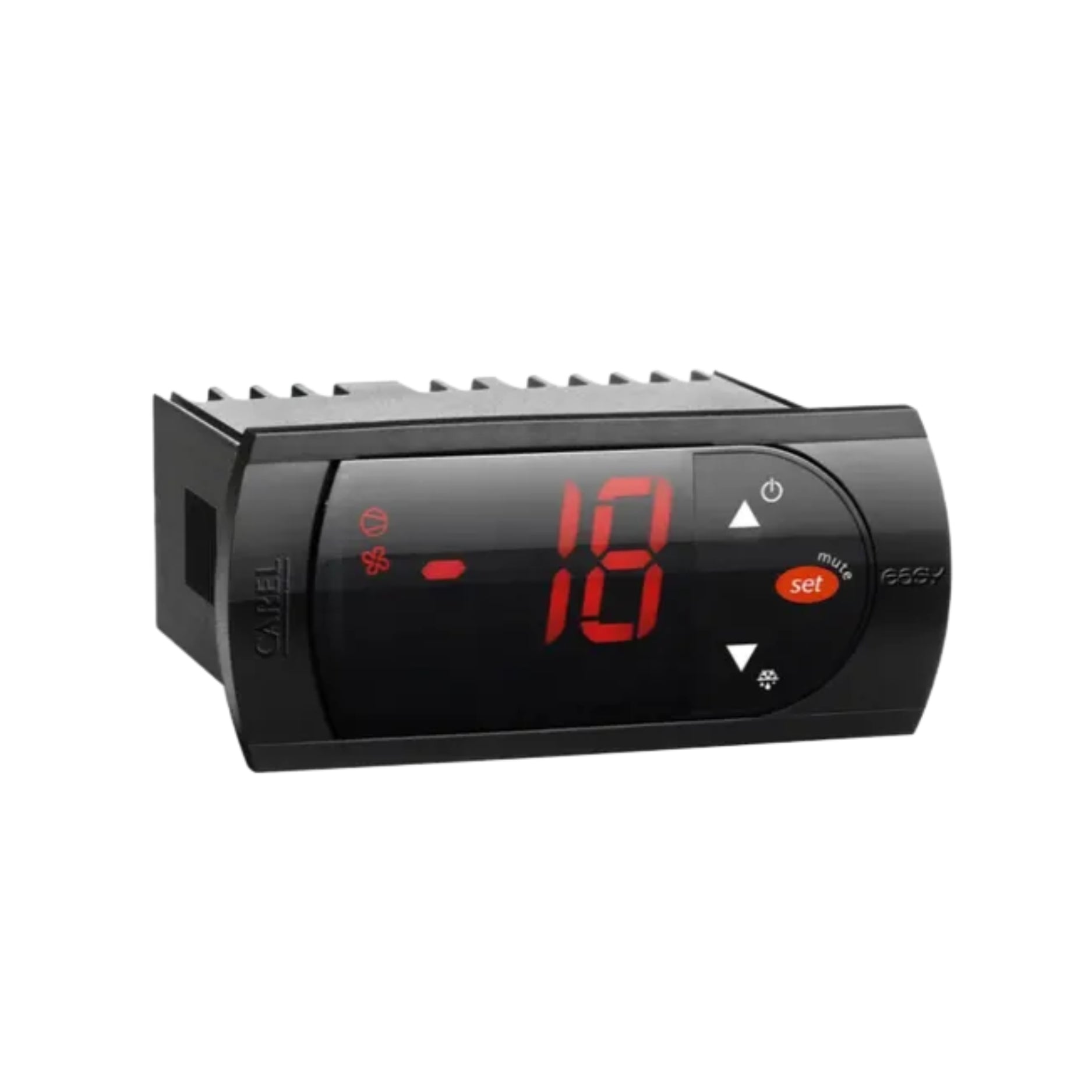

Carel PJEZSNH100

Carel PJEZSNH100

Overview

The Carel PJEZSNH100 is a compact electronic temperature controller from the Easy series, designed for precise control in refrigeration and HVAC systems. Operating on 115 VAC and supporting a 2 HP relay output, this unit features a user-friendly red LED display and dual NTC sensor inputs, offering a reliable and hygienic interface for foodservice and cooling applications.

Key Features

• Supply Voltage: 115 VAC

• Output Relay: 2 HP (SPST)

• Sensor Inputs: 2 × NTC thermistors

• Red LED display for clear visibility

• Flat keypad for easy cleaning

• Compact panel-mount design

• Pre-set parameters for fast installation

• Designed for static refrigeration or HVAC systems

Technical Specifications

• Part Number: PJEZSNH100

• Voltage Range: 115 VAC ±10%

• Relay Output: 1 × SPST relay, up to 2 HP load

• Sensor Type: NTC thermistor

• Number of Inputs: 2

• Display Type: Red LED

• Mounting: Front-panel clip

• Protection Class: IP20 (front)

• Dimensions: 48 × 48 mm panel cutout (typical)

• Operating Temp: 0 °C to +55 °C

• Storage Temp: –25 °C to +70 °C

• Relative Humidity: 10% to 90%, non-condensing

• Weight: Approx. 150 g

Applications

• Refrigerated display cabinets

• Static refrigeration units

• HVAC and ambient temperature monitoring

• OEM refrigeration systems

• Foodservice and beverage equipment

Why Choose the PJEZSNH100

• Fast setup with preloaded configuration

• Reliable switching for motors up to 2 HP

• Clear display and compact form factor

• Ideal for hygienic environments

• Dual probe support for more accurate readings

Order Now

The Carel PJEZSNH100 Easy Temperature Controller is available and ready for worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
