Carel PJEZS0P100

Carel PJEZS0P100

Overview

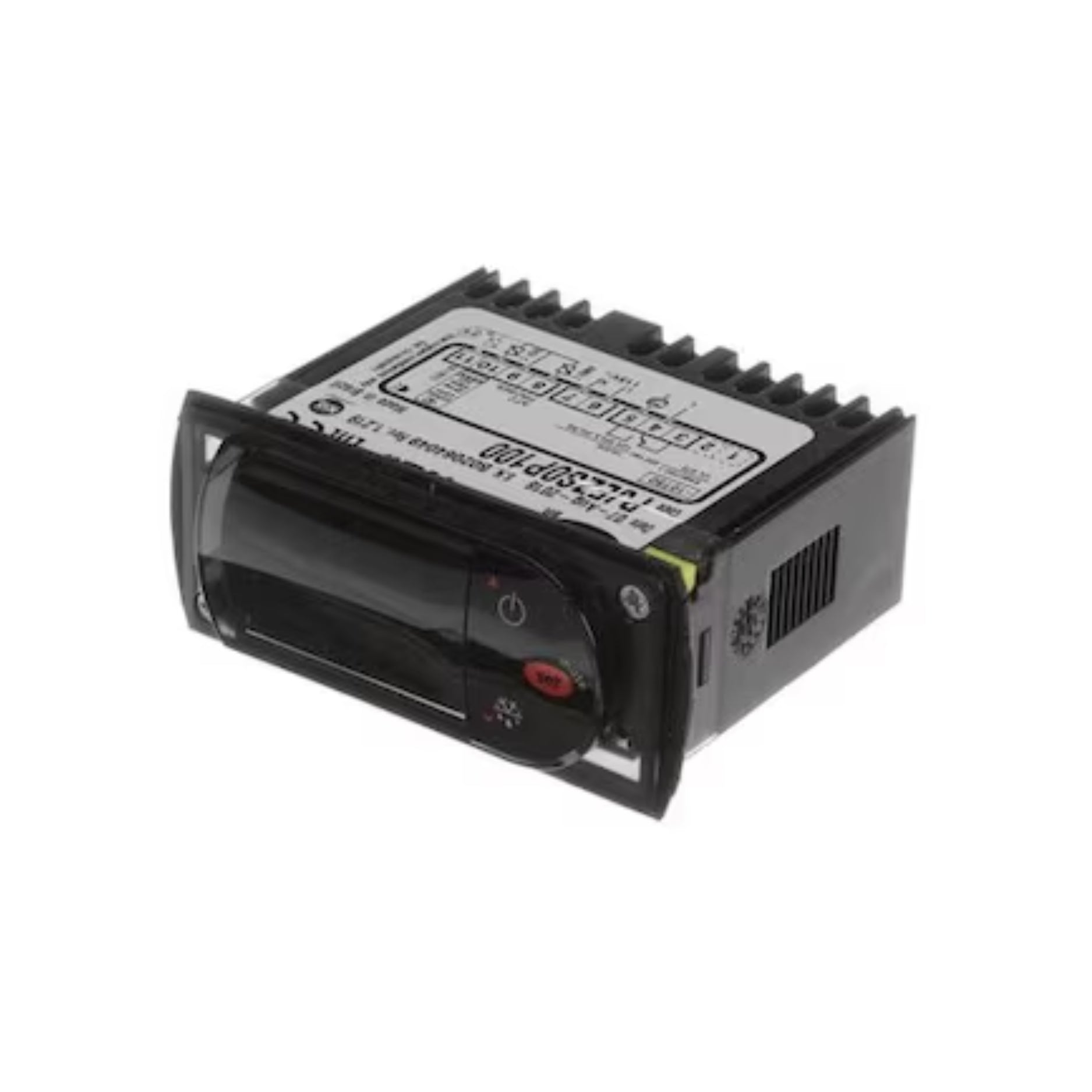

The Carel PJEZS0P100 is a compact temperature controller from the Easy Series, designed for use in refrigeration systems. Operating on 115 VAC, it features a powerful 16 A relay for controlling compressors or fans, and includes two NTC sensor inputs. With a bright red LED display and hygienic flat keypad, it offers reliable and simple temperature regulation for commercial and industrial environments.

Key Features

• Power Supply: 115 VAC

• Relay Output: 16 A (suitable for compressors or fans)

• Dual NTC inputs for temperature and defrost sensors

• Red LED display with large digits for clear visibility

• Flat keypad for hygienic use and easy cleaning

• Pre-set parameter sets for fast configuration

• IP65 front panel for protection against dust and liquids

• Panel-mount design with secure clip system

Technical Specifications

• Part Number: PJEZS0P100

• Voltage: 115 VAC ±10%

• Relay: SPDT, 16 A resistive load

• Sensor Inputs: 2 × NTC thermistors

• Display: 3-digit red LED

• Mounting: Panel mount (clip-in)

• Front Protection: IP65

• Dimensions: Approx. 78 × 36 mm front panel

• Weight: Approx. 145 g

• Operating Temp: 0 °C to +55 °C

• Storage Temp: –25 °C to +70 °C

• Humidity: 10% to 90%, non-condensing

Applications

• Commercial refrigeration cabinets

• Static and ventilated cooling units

• Beverage coolers and vending equipment

• Cold rooms and compact HVAC panels

• OEM systems requiring robust temperature control

Why Choose the PJEZS0P100

• Compact and powerful with 16 A relay output

• Easy setup with preloaded configuration profiles

• Dual NTC inputs allow greater control and safety

• Red LED and flat keypad for user-friendly interface

• Sealed front panel suitable for demanding environments

Order Now

The Carel PJEZS0P100 temperature controller is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
