Bussmann FWP-80A22F

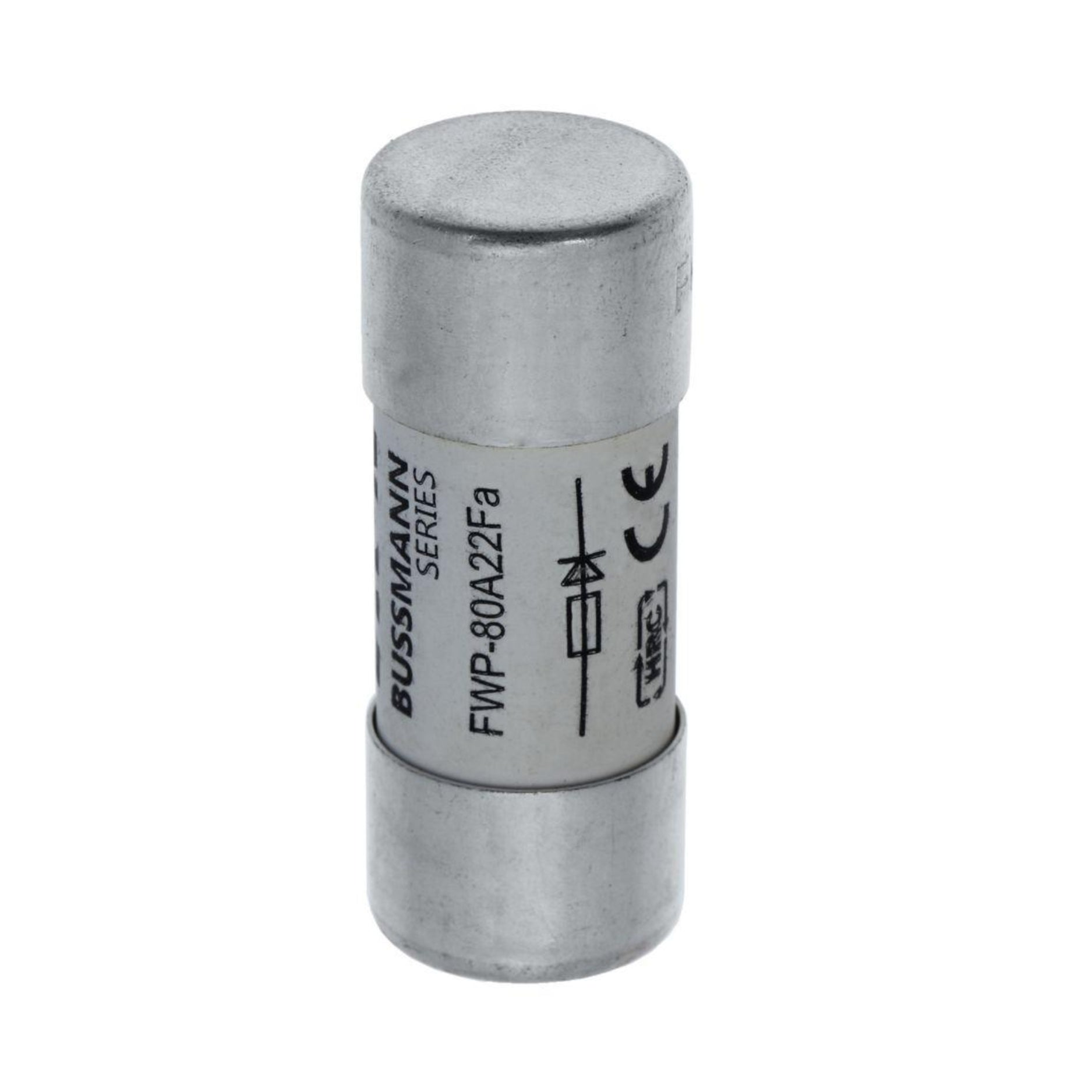

Bussmann FWP-80A22F High Speed Cylindrical Fuse

Overview

The Bussmann FWP-80A22F is a high speed cylindrical fuse designed for semiconductor protection and demanding power electronics applications. With a current rating of 80 A and voltage rating of 700 V AC/DC, it provides reliable short-circuit protection in DC drives, power converters, and rectifiers.

This compact 22 × 58 mm fuse offers a breaking capacity of 200 kA, ensuring safe interruption under fault conditions. Built with a ceramic body and ferrule connections, it maintains high durability and thermal stability.

Key Features

• Amperage Rating: 80 A

• Voltage Rating: 700 V AC / 700 V DC

• Breaking Capacity: 200 kA

• Frequency Range: 45–62 Hz

• Clearing (I²t): 7800 A²s

• Pre-arc (I²t): 550 A²s

• Watt Losses: 15 W

• Fuse Size: 22 × 58 mm

• Connection Type: Ferrule end × ferrule end

• Material: Ceramic construction

• Compliance: CE Marked, RoHS Compliant, UL Recognized, CSA Certified

Applications

• Semiconductor protection

• DC common bus systems

• DC drives

• Power converters and rectifiers

• Industrial automation equipment

Why Choose the FWP-80A22F

• High speed performance for sensitive semiconductor devices

• Compact 22 × 58 mm size for easy integration

• 200 kA interrupting capacity for maximum protection

• Designed for reliable operation in AC and DC circuits

• Certified for global industrial standards
