B&R 4PP420.0571-75

B&R 4PP420.0571-75

Overview

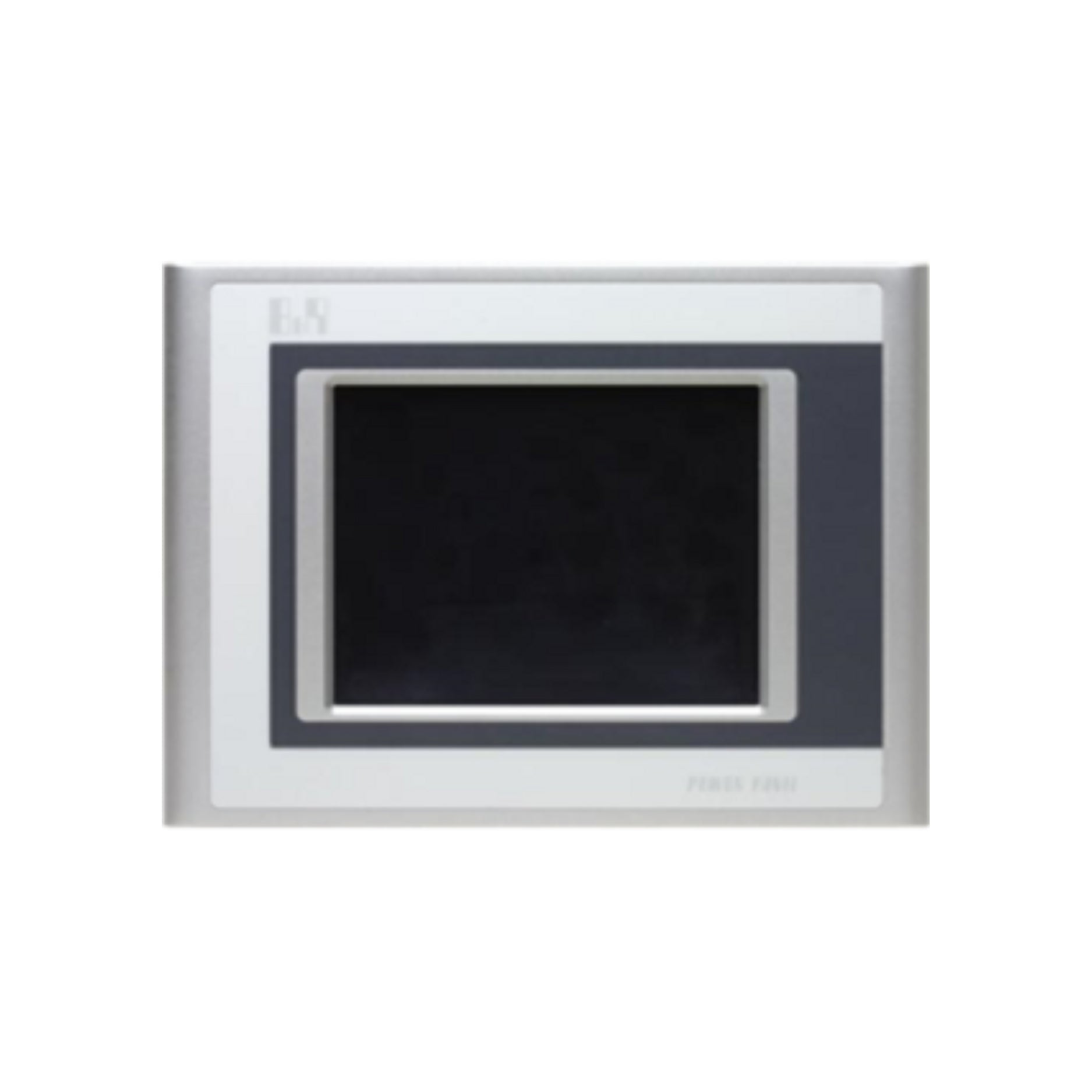

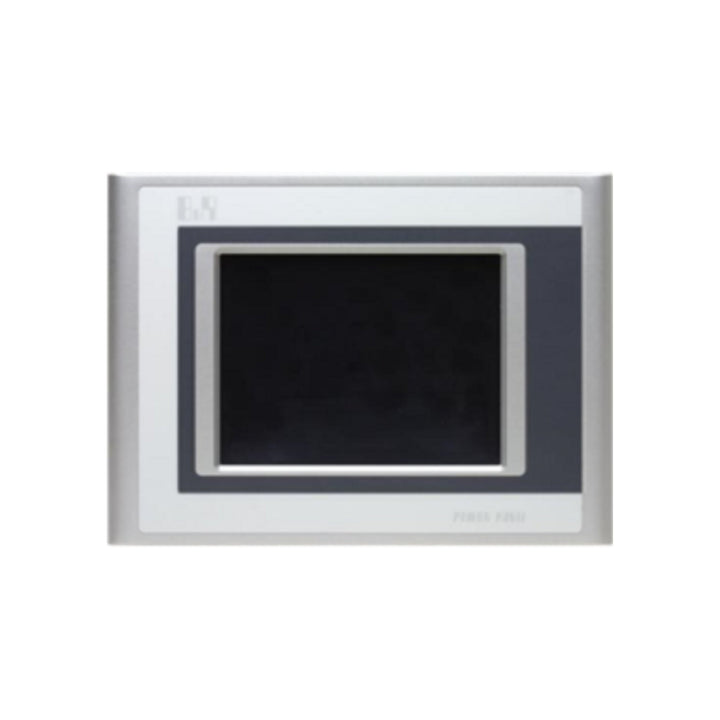

The B&R 4PP420.0571-75 is a compact industrial panel PC from the Power Panel 400 series, featuring a 5.7-inch QVGA TFT display with integrated touch control. Powered by an AMD Geode LX800 processor, this unit is optimized for machine-level HMI tasks, combining visualization and control in a fanless, space-saving design. With its industrial-grade build and flexible I/O, it’s ideal for embedded automation applications.

Key Features

• Display: 5.7" TFT, QVGA (320 × 240 pixels)

• Touchscreen: Analog resistive

• Processor: AMD Geode LX800, 500 MHz

• Memory: 128 MB DDR SDRAM + 2 MB Flash

• Expansion: 1 × CF Type I slot, 1 × PCI slot

• Connectivity:
  – 2 × USB 2.0 Type A
  – 1 × RJ45 Ethernet
  – 1 × RS-232 (9-pin D-Sub)

• Cooling: Fanless passive design

• Backlight: CCFL

• Mounting: Landscape flush installation

• Power Supply: 18–30 VDC (24 VDC nominal)

• Protection: IP65 / NEMA 4X (front)

• Operating Temperature: 0 °C to +50 °C

• Color: Gray bezel

Applications

• Compact HMI for automation equipment

• Machine interface in OEM systems

• Industrial control and monitoring

• Embedded systems with PCI expansion needs

Why Choose the 4PP420.0571-75

• Integrated display and control in a compact format

• Reliable fanless design with wide voltage range

• PCI slot and USB for expansion flexibility

• B&R Automation Runtime ready

• IP65 front rating ensures durability

Order Now

The B&R 4PP420.0571-75 Power Panel is available and ships worldwide.
