Bosch Rexroth MKD071B-061-KP1-KN

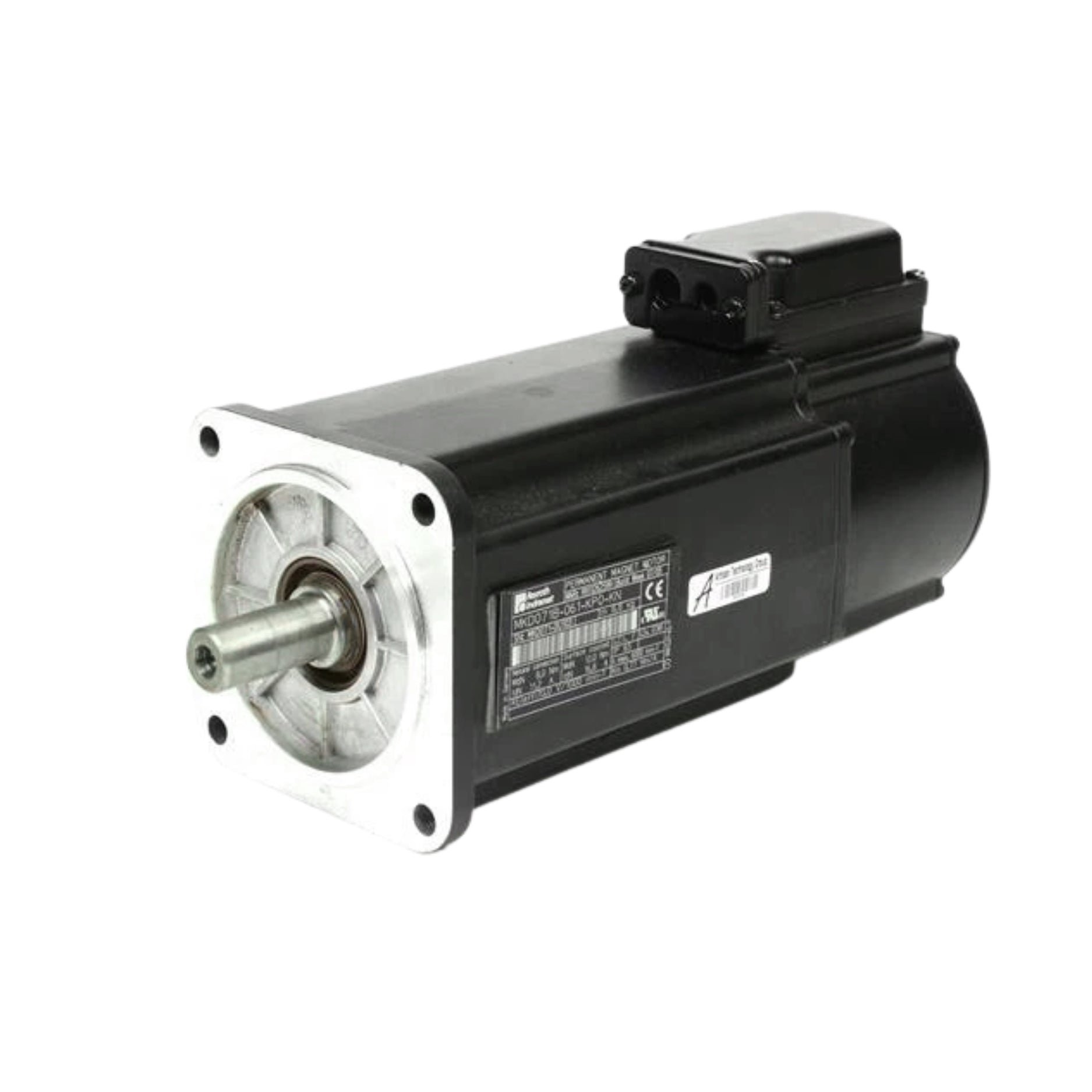

Bosch Rexroth Indramat MKD071B-061-KP1-KN Synchronous Motor

Overview

The Bosch Rexroth Indramat MKD071B-061-KP1-KN is a high-performance synchronous servo motor from the MKD Synchronous Motors series, engineered for precise motion control in industrial automation. Built with a shaft with keyway, a flange size of 115 mm, and a centering diameter of 95 mm, it ensures robust mechanical stability.

This motor delivers 8.0 Nm continuous torque at standstill with a theoretical maximum torque of 32 Nm, making it suitable for dynamic applications. It comes equipped with a 5 Nm holding brake, a resolver feedback encoder with absolute position detection (>4096 revs), and is rated IP65 for protection in harsh environments. Finished with a prime black coat (RAL 9005), it combines durability, precision, and ease of integration.

Key Features

• Shaft with keyway and integrated shaft seal

• 8.0 Nm continuous torque at standstill

• 32 Nm theoretical maximum torque

• 5 Nm holding brake torque

• Resolver feedback with integrated encoder

• Absolute position detection (>4096 revs)

• IP65 protection rating

• Prime black RAL 9005 coating

Technical Specifications

• Series: MKD

• Motor Size: 071

• Motor Length: B

• Winding Code: 061

• Shaft Design: Shaft with keyway

• Shaft Seal: Yes

• Holding Brake: With holding brake (5 Nm)

• Encoder Type: Resolver feedback w/ integrated encoder

• Position Detection: Absolute (>4096 revs)

• Continuous Torque at Standstill: 8.0 Nm

• Theoretical Maximum Torque: 32 Nm

• Centering Diameter: 95 mm

• Flange Size: 115 mm

• Connection Type: Connection box

• Rotor Inertia: 8.7 × 10⁻⁴ kgm²

• Protection Rating: IP65

• Housing Coat: Prime coat black, RAL 9005

• Storage Temperature Range: -20 °C to +80 °C

Applications

• CNC machining centers

• Packaging and assembly systems

• Robotics and automation cells

• High-precision industrial motion control

Order Now

The Bosch Rexroth Indramat MKD071B-061-KP1-KN is available for fast worldwide shipping.

Return to the Indramat MHD Synchronous Servo Motors collection for more models and technical options tailored to your automation needs.

Explore our Bosch Rexroth Industrial Automation Products main category to discover a complete range of drives, motors, amplifiers, and control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
