Bosch Rexroth MKD071B-035-KG1-KN

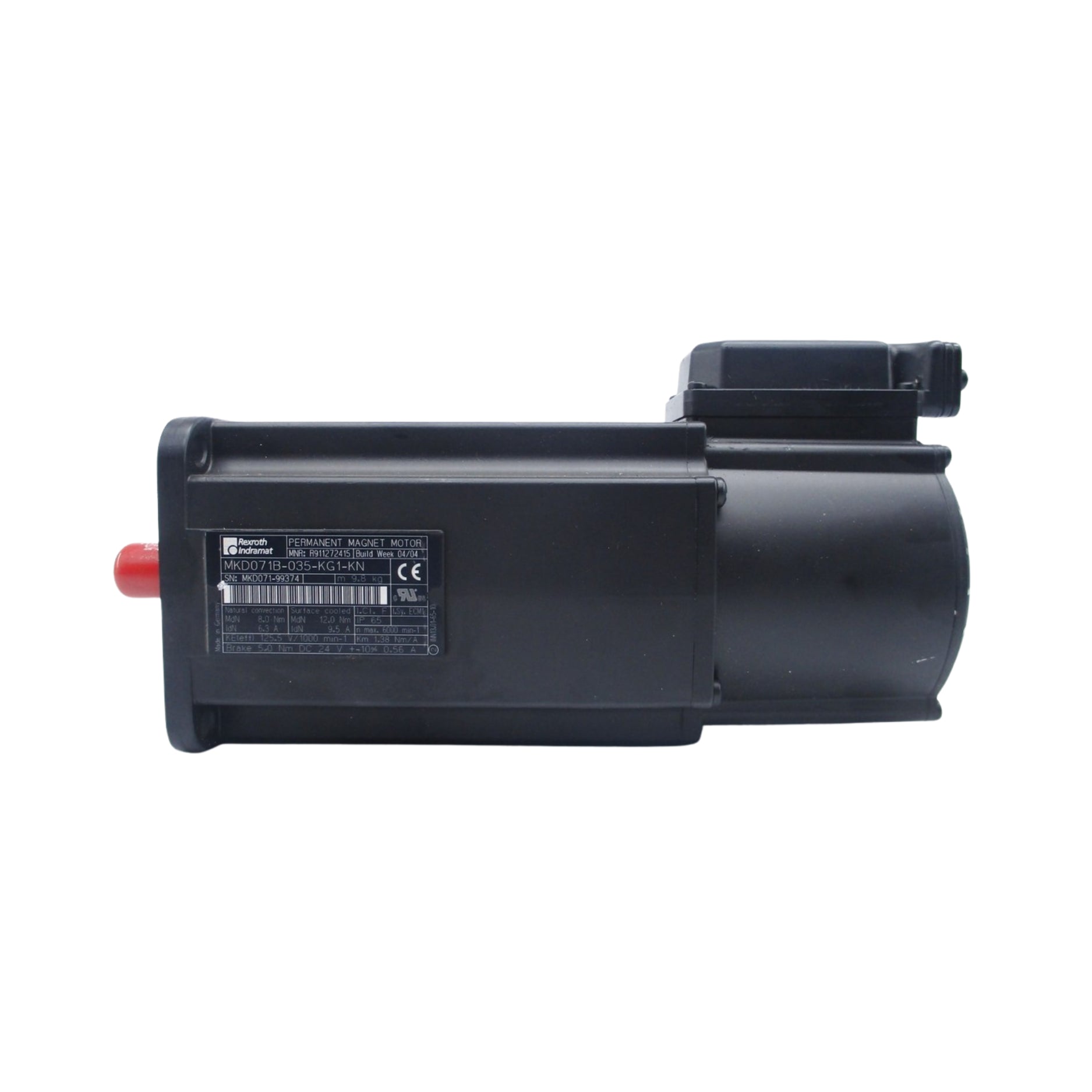

Bosch Rexroth Indramat MKD071B-035-KG1-KN Servo Motor

Overview

The Bosch Rexroth Indramat MKD071B-035-KG1-KN is a high-performance MKD Synchronous Servo Motor designed for precision industrial automation. With a motor size 071 and motor length B, it delivers a continuous torque of 8.0 Nm at standstill while operating at speeds up to 2500 RPM. The plain shaft with seal ensures robust coupling and extended service life in demanding environments.

This model integrates a holding brake rated at 5 Nm, providing secure positioning during machine downtime or emergency stops. Equipped with resolver feedback and an integrated encoder, the motor enables absolute position detection over 4096 revolutions, ensuring accurate synchronization in multi-axis systems.

A connection box facilitates straightforward electrical integration, while the 95 mm centering diameter ensures compatibility with standardized mechanical interfaces. With a torque constant of 0.91 Nm/A and a winding inductance of 25.3 mH, the MKD071B-035-KG1-KN achieves efficient torque response and smooth motor control in dynamic applications.

Key Features

• MKD Synchronous Servo Motor – MKD Series

• Continuous torque at standstill: 8.0 Nm

• Maximum speed: 2500 RPM

• Holding brake torque: 5 Nm for secure positioning

• Feedback system: Resolver with integrated encoder

• Absolute positioning capability: >4096 revolutions

• Connection type: Connection box for easy wiring

• Shaft design: Plain shaft with shaft seal

• Centering diameter: 95 mm

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat

• Product Type: MKD Synchronous Servo Motor

• Series: MKD

• Model: MKD071B-035-KG1-KN

• Motor Size: 071

• Motor Length: B

• Winding Code: 035

• Shaft Design: Plain shaft

• Shaft Seal: Yes

• Holding Brake: Yes, 5 Nm torque

• Encoder Type: Resolver feedback with integrated encoder

• Position Detection: Absolute, >4096 revolutions

• Continuous Torque at Standstill: 8.0 Nm

• Continuous Current at Standstill: 5.8 A

• Torque Constant (20°C): 0.91 Nm/A

• Winding Inductance: 25.3 mH

• Speed Rating: 2500 RPM

• Connection Type: Connection box

• Centering Diameter: 95 mm

Applications

• CNC machining centers

• Robotics and automated assembly lines

• Printing and packaging machinery

• High-precision material handling systems

• Multi-axis automation equipment

Why Choose the MKD071B-035-KG1-KN

• Robust braking system with 5 Nm holding torque

• High precision feedback with resolver and absolute positioning

• Efficient torque response with 0.91 Nm/A torque constant

• Flexible integration via connection box and standard centering diameter

• Proven MKD Series reliability for industrial automation

Order Now

The Bosch Rexroth Indramat MKD071B-035-KG1-KN Servo Motor is available with fast worldwide shipping and technical support for seamless integration.

Return to the Indramat MHD Synchronous Servo Motors collection for more models and technical options tailored to your automation needs.

Explore our Bosch Rexroth Industrial Automation Products main category to discover a complete range of drives, motors, amplifiers, and control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
