Bosch Rexroth MHD090B-035-NG0-UN

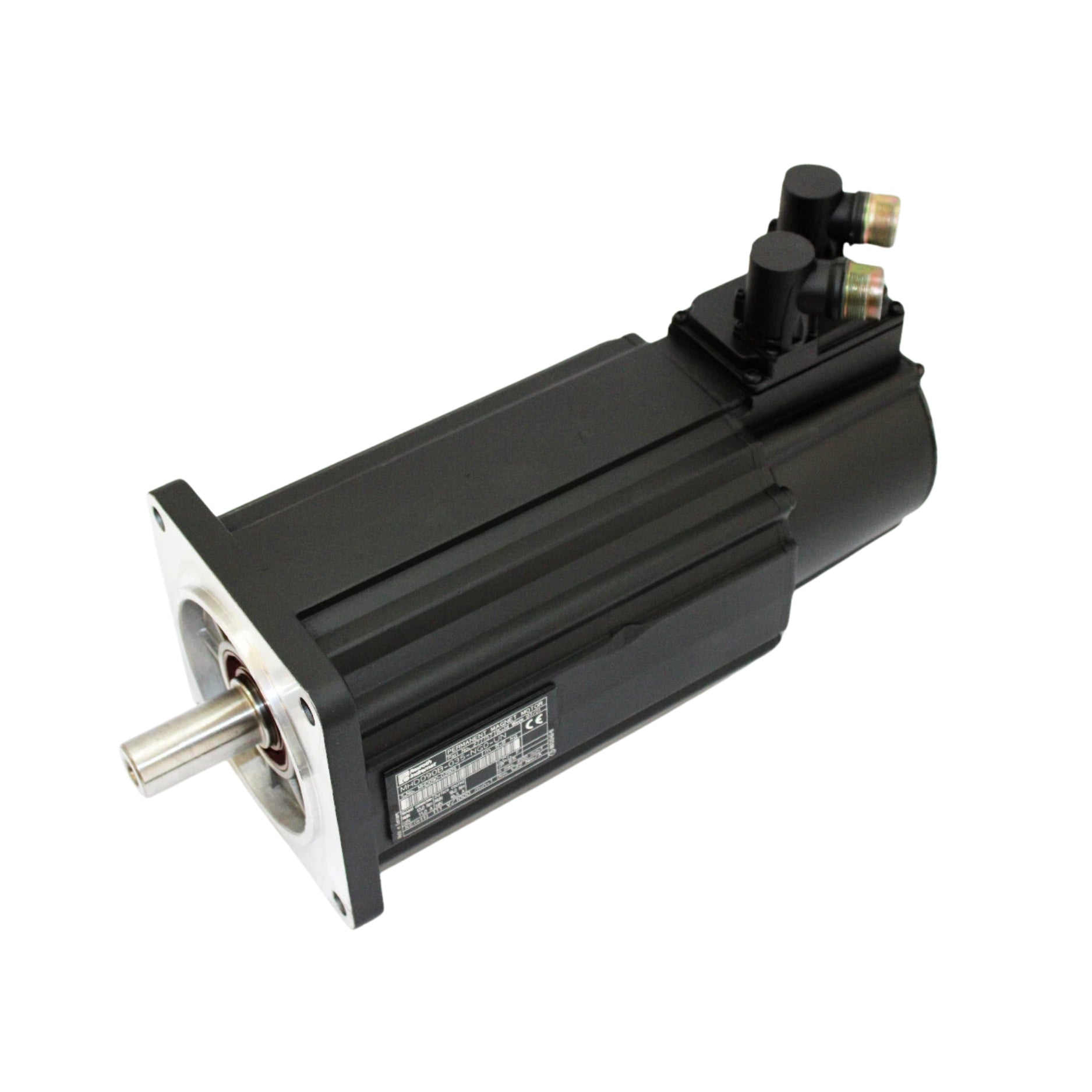

Bosch Rexroth Indramat MHD090B-035-NG0-UN Servo Motor

Overview

The Bosch Rexroth Indramat MHD090B-035-NG0-UN is a synchronous servo motor from the MHD series, designed for precision automation and dynamic control. With a motor size of 090 and 12 Nm continuous torque at standstill, it delivers reliable performance for torque-intensive applications.

This model uses a liquid-cooled housing for efficient thermal management, making it suitable for continuous high-load operations. Its plain shaft with integrated shaft seal ensures secure coupling and long service life. The rotatable power connector (up to 270°) provides flexibility for installation in compact control cabinets.

Key Features

• Part of the Bosch Rexroth MHD Synchronous Motor Series

• Continuous torque at standstill: 12.0 Nm

• Cooling type: Liquid cooling

• Encoder: Digital servo feedback (HSF)

• Position detection: Relative type

• Motor size: 090, length B

• Flange size: 140 mm

• Centering diameter: 110 mm

• Shaft design: Plain shaft with shaft seal

• Power connector orientation: Turnable within 270°

• Unified power and feedback connectors

• Delivered without holding brake (optional brake module available)

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat

• Product Type: Servo Motor

• Series: MHD

• Motor Size: 090

• Motor Length: B

• Winding Code: 035

• Continuous Torque at Standstill: 12.0 Nm

• Cooling: Liquid cooling

• Encoder Type: Digital servo feedback (HSF)

• Position Detection: Relative

• Flange Size: 140 mm

• Centering Diameter: 110 mm

• Shaft Design: Plain shaft with shaft seal

• Holding Brake: Without holding brake

• Power Connection Type: Power and feedback connectors

• Power Connection Direction: Rotatable within 270°

Applications

• CNC machining and milling equipment

• Packaging and converting machines

• Robotics and automated gantries

• Assembly and handling systems

Why Choose the MHD090B-035-NG0-UN

• High dynamic response with optimized winding design

• Liquid cooling for continuous operation in demanding environments

• Flexible installation with turnable connectors

• Compact build with motor length B for reduced installation depth

• Durable sealing for long service life in industrial environments
