Schneider Electric BMXEHC0800 | Modicon M340 Counter Module

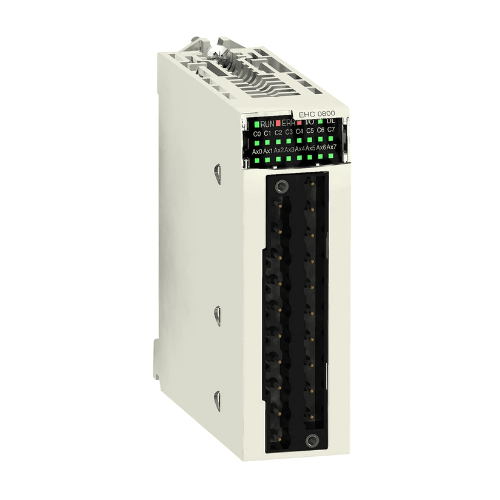

Schneider Electric BMXEHC0800 | High-Speed Counter Module – 8 Channels for Modicon M340 PLC

Overview

The Schneider Electric BMXEHC0800 is a high-speed counter module designed for use with the Modicon M340 PLC platform. It provides 8 independent counting channels, making it ideal for applications that require fast, precise pulse counting and position tracking.

With real-time performance, this module supports functions such as frequency measurement, quadrature encoder input, and pulse accumulation, making it a key component in industrial automation systems requiring motion monitoring and speed control.

Key Features

• 8-Channel High-Speed Input – For fast pulse counting and encoder feedback

• Modicon M340 Compatible – Seamless integration into M340 racks

• Real-Time Processing – Ensures accuracy in high-speed automation tasks

• Encoder Support – Works with quadrature encoders

• Compact DIN Rail Mounting – Saves space in control panels

Technical Specifications

• Catalog Number: BMXEHC0800

• Product Type: High-Speed Counter Module

• Input Channels: 8

• Max Input Frequency: Up to 100 kHz (per channel)

• Supported Encoders: Quadrature, SSI (select models)

• Power Supply: Via M340 backplane

• Mounting: DIN rail, M340 rack

• Operating Temperature: 0°C to +60°C

• Weight: Approx. 200 g

Applications

• Material Handling Systems – Position and speed tracking

• Packaging and Labeling – Encoder-based motion feedback

• Industrial Automation – Pulse counting, frequency monitoring, and fast input processing

Why Choose the BMXEHC0800?

• Designed for precision motion tasks

• Reliable performance in high-speed environments

• Fully integrated into the M340 system architecture

Order Now

In stock and available for international shipping. Optimize your Modicon M340 system with this high-performance counter module.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
