Schneider Electric BMXEHC0200

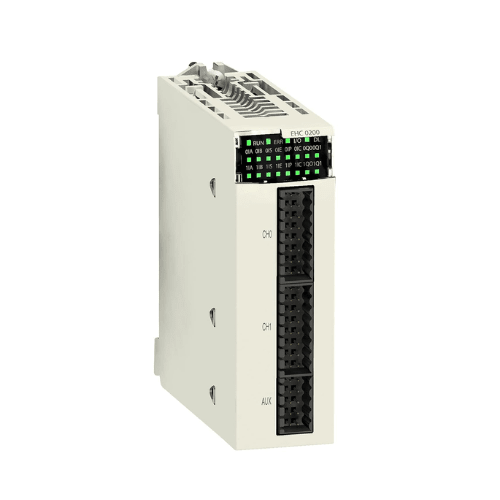

Schneider Electric BMXEHC0200 | High-Speed Counter Module for Modicon M340

Overview

The Schneider Electric BMXEHC0200 is a 2-channel high-speed counter (HSC) module from the Modicon M340 series, engineered for fast, accurate counting and positioning operations. Designed for use in high-speed automation systems, it is ideal for applications such as machine tools, packaging lines, and conveyor systems.

Key Features

• Channels: 2 independent high-speed counter channels
• Input Types: Supports incremental encoders (A, B, Z signals)
• Frequency Range: Up to 100 kHz per channel
• Functions Supported:
  • Frequency and period measurement
  • Pulse counting
  • Quadrature decoding
  • Position and speed monitoring
• Real-Time Processing: Fast response for precision applications
• Diagnostics: Built-in diagnostics for signal loss and encoder errors
• Compatibility: Works with Modicon M340 PLCs via X80 backplane

Technical Specifications

• Model: BMXEHC0200
• Series: Modicon M340
• Channels: 2 x high-speed counter inputs
• Max Frequency: 100 kHz per channel
• Signal Type: Differential or single-ended (A/B/Z encoder signals)
• Resolution: 32-bit counting range
• Power Supply: 24V DC from base rack
• Current Consumption: Approx. 150 mA at 3.3 V
• Isolation: Optical isolation between channels and logic
• Mounting: DIN rail (via base rack)
• Operating Temperature: 0°C to 60°C
• Protection Rating: IP20
• Dimensions (W x H x D): 32 mm x 100 mm x 115 mm
• Weight: Approx. 0.2 kg

Applications

• Positioning Systems: Track and control linear or rotary encoder feedback
• Machine Automation: Synchronize motion in high-speed production lines
• Packaging Machinery: Monitor and control fast-moving operations
• Material Handling: Track conveyor movement and item count

Why Choose the Schneider Electric BMXEHC0200?

• High-Speed Performance: Up to 100 kHz for fast counting
• Reliable Encoder Input Processing: Supports quadrature decoding
• Modicon M340 Integration: Easy to configure in Unity Pro / EcoStruxure Control Expert
• Robust and Accurate: Designed for precision automation tasks

Order Now

Fast shipping and worldwide delivery available.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
