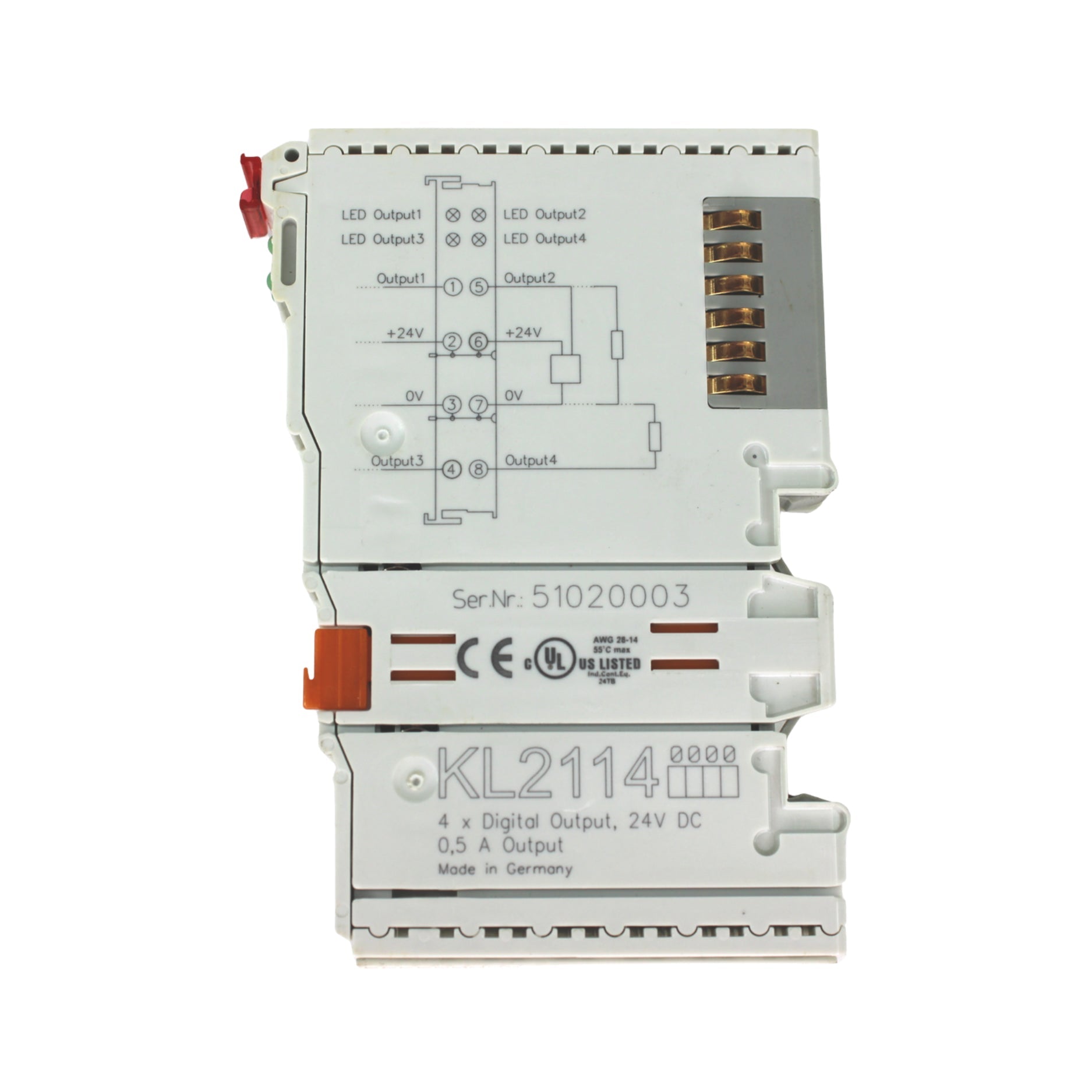

Beckhoff KL2114

Beckhoff KL2114

Overview

The Beckhoff KL2114 is a 4-channel digital output terminal for the K-Bus I/O system. It switches 24 V DC loads with up to 0.5 A per channel, enabling direct control of actuators, signal lamps, and other devices. Compact and robust, the KL2114 ensures reliable digital output for modular automation systems.

Key Features

• 4 digital output channels

• Output voltage: 24 V DC

• Maximum load: 0.5 A per channel

• Compact 12 mm K-Bus housing

• Electrical isolation between I/O and bus

• Diagnostic LEDs for each channel

• Seamless TwinCAT integration

Technical Specifications

• Part Number: KL2114

• Manufacturer: Beckhoff

• Function: Digital output terminal

• Channels: 4 outputs

• Output Voltage: 24 V DC

• Max Current: 0.5 A per channel

• Housing Width: 12 mm

• Electrical Isolation: Yes (I/O to K-Bus)

• Mounting: DIN rail (K-Bus Terminal system)

• Operating Temperature: –25 °C to +60 °C

Applications

• Driving actuators and relays

• Switching lamps, indicators, and solenoids

• Machine and process automation

• Building and energy automation systems

• Distributed I/O using Beckhoff K-Bus

Why Choose the KL2114

• Reliable 4-channel digital output in a compact module

• 24 V DC switching at 0.5 A per channel

• Diagnostic LEDs simplify monitoring

• Electrical isolation ensures safe operation

• Backed by Beckhoff’s proven automation technology

Order Now

The Beckhoff KL2114 4-channel 24 V DC digital output terminal is available and ships worldwide.
