Beckhoff EP2338-1001

Beckhoff EP2338-1001

Overview

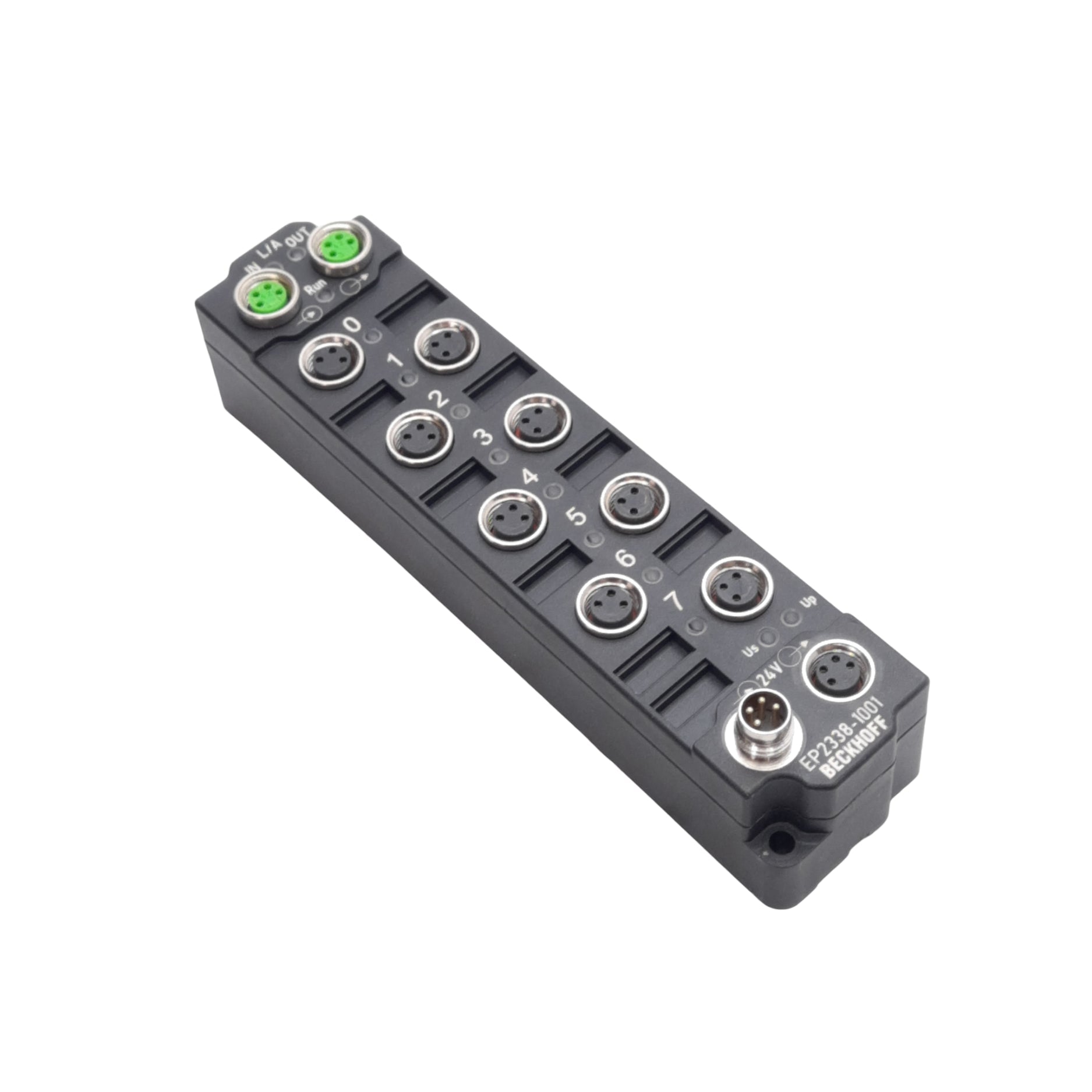

The Beckhoff EP2338-1001 is an EtherCAT Box for digital outputs with 8 channels, each capable of switching up to 2 A at 24 V DC. Built in a rugged IP67 housing, it is designed for direct machine installation without requiring a control cabinet. With M12 connectors and diagnostic LEDs, it simplifies distributed automation in harsh industrial environments.

Key Features

• 8 digital output channels

• Output rating: 24 V DC, 2 A per channel

• Rugged IP67 housing for field installation

• M12 connectors for secure cabling

• Diagnostic LEDs for status and error monitoring

• Short-circuit and overload protection

• Seamless EtherCAT real-time communication

Technical Specifications

• Part Number: EP2338-1001

• Manufacturer: Beckhoff

• Function: Digital output EtherCAT Box

• Channels: 8 outputs

• Output Voltage: 24 V DC

• Max Output Current: 2 A per channel

• Connectors: M12 (I/O, EtherCAT, power)

• Protection Class: IP67

• Power Supply: 24 V DC

• Operating Temperature: –25 °C to +60 °C

Applications

• Distributed digital outputs in machine automation

• Robotics and handling systems

• Packaging and assembly line equipment

• Harsh environments requiring IP67 field I/O

• Modular EtherCAT-based automation architectures

Why Choose the EP2338-1001

• High output power with 2 A per channel

• IP67 housing for outdoor or harsh environments

• Reduces cabinet wiring with field-level installation

• Built-in protection for reliability

• Proven Beckhoff EtherCAT technology with TwinCAT integration

Order Now

The Beckhoff EP2338-1001 EtherCAT Box digital output module is available and ships worldwide.

Return to Beckhoff EtherCAT Box I/O Systems

Return to Beckhoff Category

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
