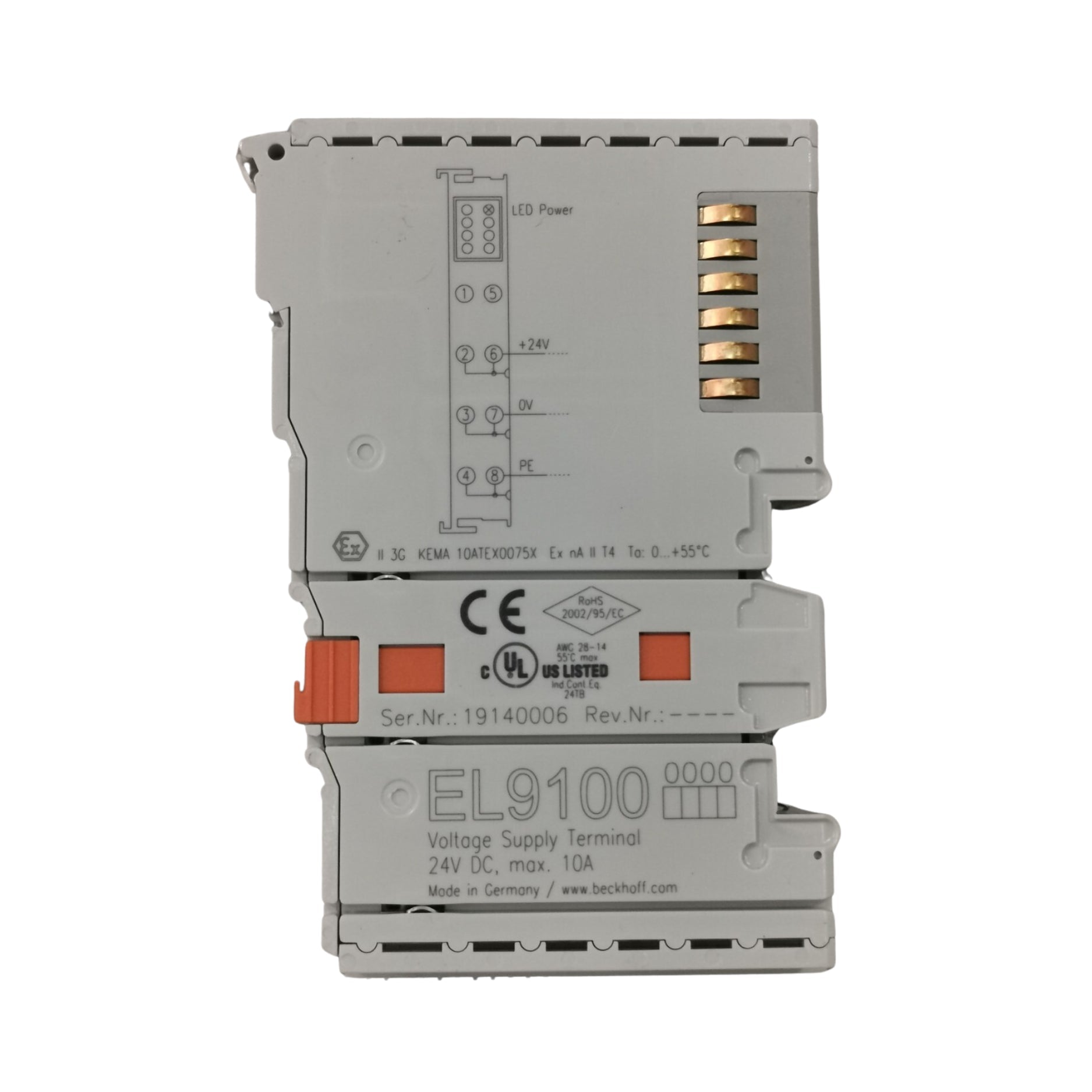

Beckhoff EL9100

Beckhoff EL9100

Overview

The Beckhoff EL9100 is a power feed terminal designed to supply 24 V DC to EtherCAT I/O systems. It enables voltage distribution within terminal segments and provides electrical isolation between different sections, ensuring reliable operation in industrial automation setups.

Key Features

• 24 V DC power feed for EtherCAT terminals

• Electrical isolation between I/O segments

• Compact 12 mm housing width

• DIN-rail mount for easy installation

• Diagnostic LEDs for power status

• Designed for seamless integration in EtherCAT systems

Technical Specifications

• Part Number: EL9100

• Manufacturer: Beckhoff

• Function: Power feed terminal

• Supply Voltage: 24 V DC

• Max. Current Load: 10 A

• Isolation: Electrical separation between segments

• Housing Width: 12 mm

• Mounting: DIN-rail terminal

• Operating Temperature: –25 °C to +60 °C

Applications

• Voltage supply for EtherCAT I/O stations

• Power segmentation in control cabinets

• Industrial automation systems

• Machine and process control

Why Choose the EL9100

• Reliable 24 V DC power distribution

• Compact size for space-saving installations

• Electrical isolation for system protection

• Easy integration into existing EtherCAT systems

Order Now

The Beckhoff EL9100 power feed terminal is available and ships worldwide.

Return to Beckhoff EL/ELM7xxx Compact Drive Technology

Return to Beckhoff Category

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
