Overview

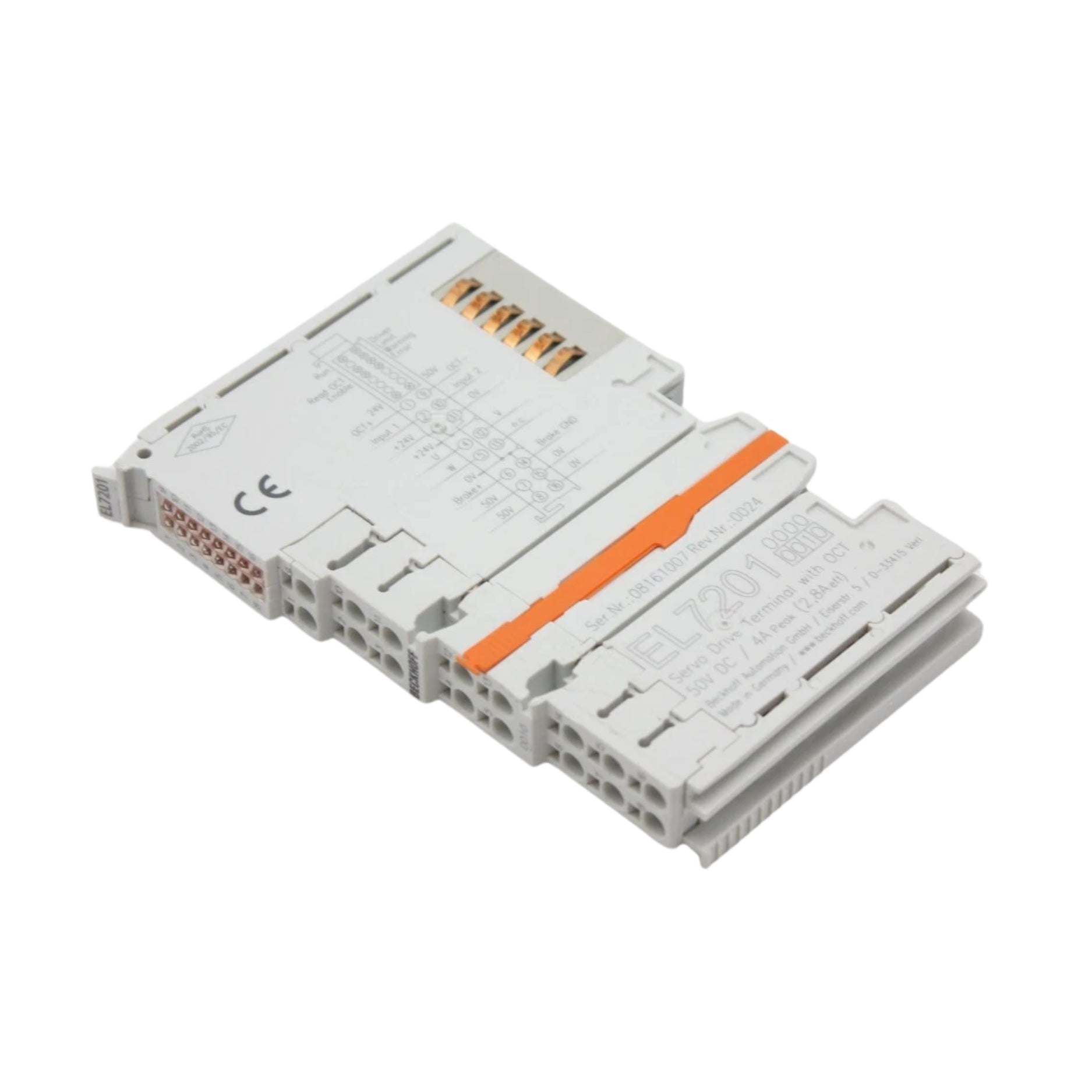

The Beckhoff EL7201-0010 is a 1-channel EtherCAT servo terminal with an integrated servo drive, delivering up to 8 A output current. Designed for direct connection of Beckhoff AM3100 series servomotors, it enables highly dynamic positioning tasks with compact, cabinet-space-saving integration.

Key Features

• 1-channel servo terminal with integrated drive

• Rated output current: up to 8 A

• Direct connection for AM3100 series servomotors

• Compact EtherCAT terminal design (12 mm width)

• Integrated diagnostics and feedback monitoring

• Supports torque, velocity, and position control

• Seamless TwinCAT integration for motion control

Technical Specifications

• Part Number: EL7201-0010

• Manufacturer: Beckhoff

• Function: Servo terminal with integrated drive

• Channels: 1

• Rated Current: up to 8 A

• Supported Motors: Beckhoff AM3100 series

• Control Modes: Position, velocity, torque

• Communication: EtherCAT real-time fieldbus

• Housing Width: 12 mm

• Mounting: DIN rail (EtherCAT Terminal system)

• Operating Temperature: –25 °C to +60 °C

Applications

• Motion control in compact machines

• Robotics and handling equipment

• Packaging and labeling automation

• Laboratory automation requiring precise positioning

• Distributed EtherCAT I/O with integrated servo drives

Why Choose the EL7201-0010

• Combines servo drive and terminal in one compact unit

• Saves space compared to external servo amplifiers

• High dynamic performance with up to 8 A output

• Real-time EtherCAT communication for precise control

• Proven Beckhoff motion technology and TwinCAT support

Order Now

The Beckhoff EL7201-0010 servo terminal with integrated drive is available and ships worldwide.
