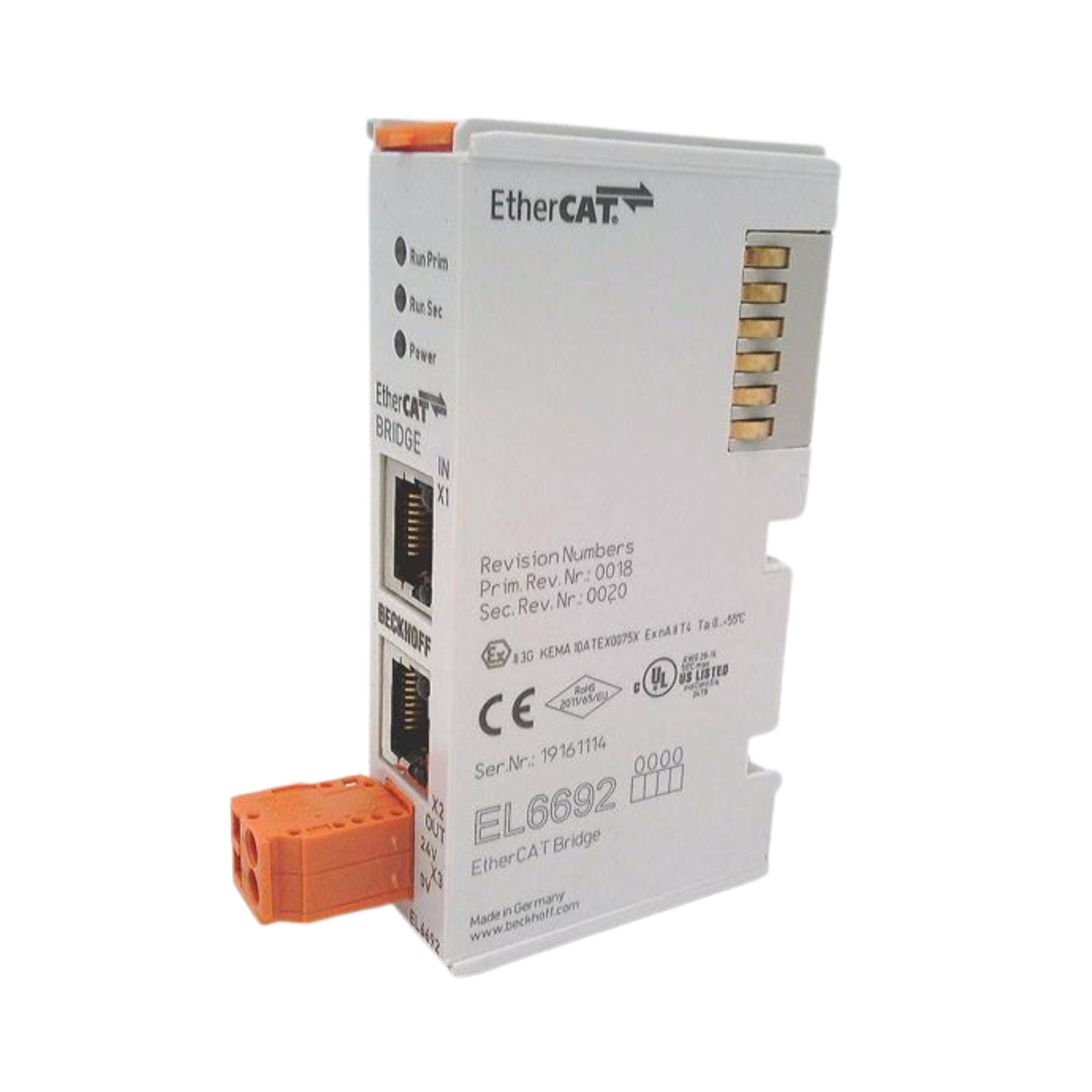

Beckhoff EL6692

Beckhoff EL6692

Overview

The Beckhoff EL6692 is an EtherCAT bridge terminal designed for seamless real-time communication between two independent EtherCAT networks. With its dual-port architecture, the EL6692 allows data exchange between segments while maintaining deterministic performance. This makes it ideal for applications where multiple EtherCAT masters or separate machine modules need to be interconnected.

Its compact terminal format allows easy integration into existing I/O systems, reducing wiring complexity and enabling modular automation concepts.

Key Features

• Dual-port EtherCAT bridge for connecting two EtherCAT networks

• Supports distributed clocks for precise synchronization

• Real-time data exchange with low latency

• Compact DIN-rail terminal design for space efficiency

• Suitable for modular and decentralized machine architectures

• Seamless integration into Beckhoff EtherCAT I/O systems

Technical Specifications

• Part Number: EL6692

• Manufacturer: Beckhoff

• Function: EtherCAT bridge terminal

• Ports: 2x EtherCAT IN/OUT

• Data Rate: 100 Mbps full-duplex

• Housing Width: 24 mm

• Mounting: DIN-rail terminal

• Operating Temperature: –25 °C to +60 °C

• Protocol Support: EtherCAT with distributed clocks

• Isolation: Electrical isolation between EtherCAT segments

Applications

• Connecting machine modules with separate EtherCAT masters

• Linking EtherCAT-based subsystems in large installations

• Synchronizing motion control across multiple networks

• Modular production lines with independent control systems

Why Choose the EL6692

• Enables high-speed, deterministic data exchange between EtherCAT segments

• Compact form factor for easy integration

• Ideal for modular, scalable automation architectures

• Maintains precise timing and synchronization

Order Now

The Beckhoff EL6692 EtherCAT bridge terminal is available and ships worldwide.
