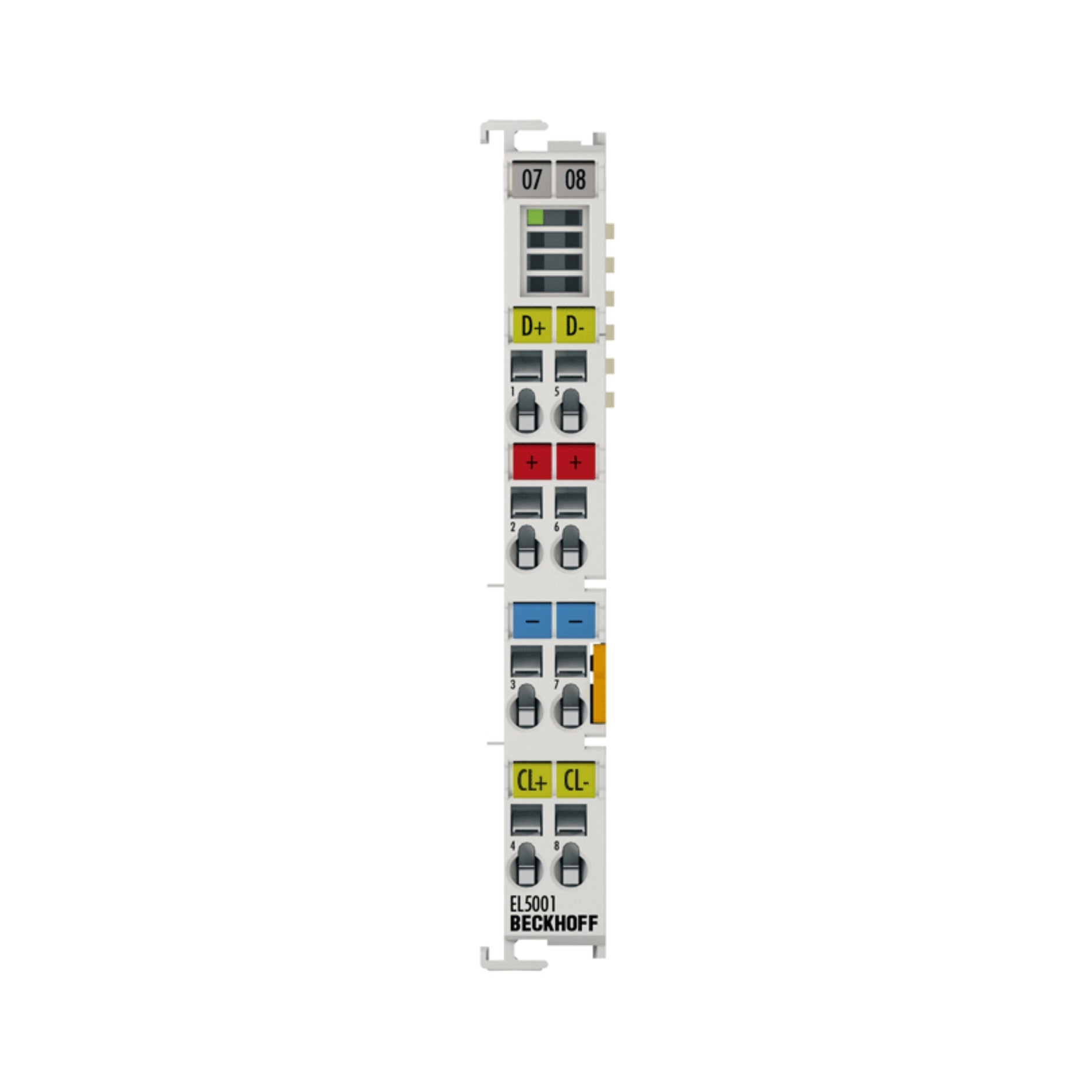

Beckhoff EL5001

Beckhoff EL5001

Overview

The Beckhoff EL5001 is an EtherCAT Terminal designed to connect an SSI (Synchronous Serial Interface) encoder for accurate position measurement in automation systems. With one input channel, it provides precise data acquisition, seamless integration with EtherCAT, and reliable operation for motion and positioning applications.

Key Features

• EtherCAT terminal for SSI encoder connection

• 1-channel SSI interface

• Supports various SSI protocols and clock rates

• Compact and modular terminal design

• High precision position data acquisition

• Integrated diagnostics and monitoring

• Reliable performance in motion applications

Technical Specifications

• Beckhoff Code: EL5001

• Series: EtherCAT Terminals

• Channels: 1 input (SSI encoder)

• Interface: SSI (Synchronous Serial Interface)

• Data Width: Up to 32-bit

• Bus System: EtherCAT

• Protection Rating: IP20

• Power Supply: 24 V DC (via EtherCAT)

• Operating Temperature: –25 °C to +60 °C

• Certifications: CE, UL

Applications

• Motion control systems

• Position measurement in automation

• Robotics and CNC machines

• Conveyor and material handling systems

• Packaging and printing equipment

Why Choose Beckhoff EL5001?

• Accurate position acquisition with SSI encoders

• Easy EtherCAT-based integration

• Compact and space-saving design

• Trusted Beckhoff reliability for motion systems

Order Now

Enable precise motion control with the Beckhoff EL5001 — efficient, reliable, and designed for demanding industrial automation tasks.
