Overview

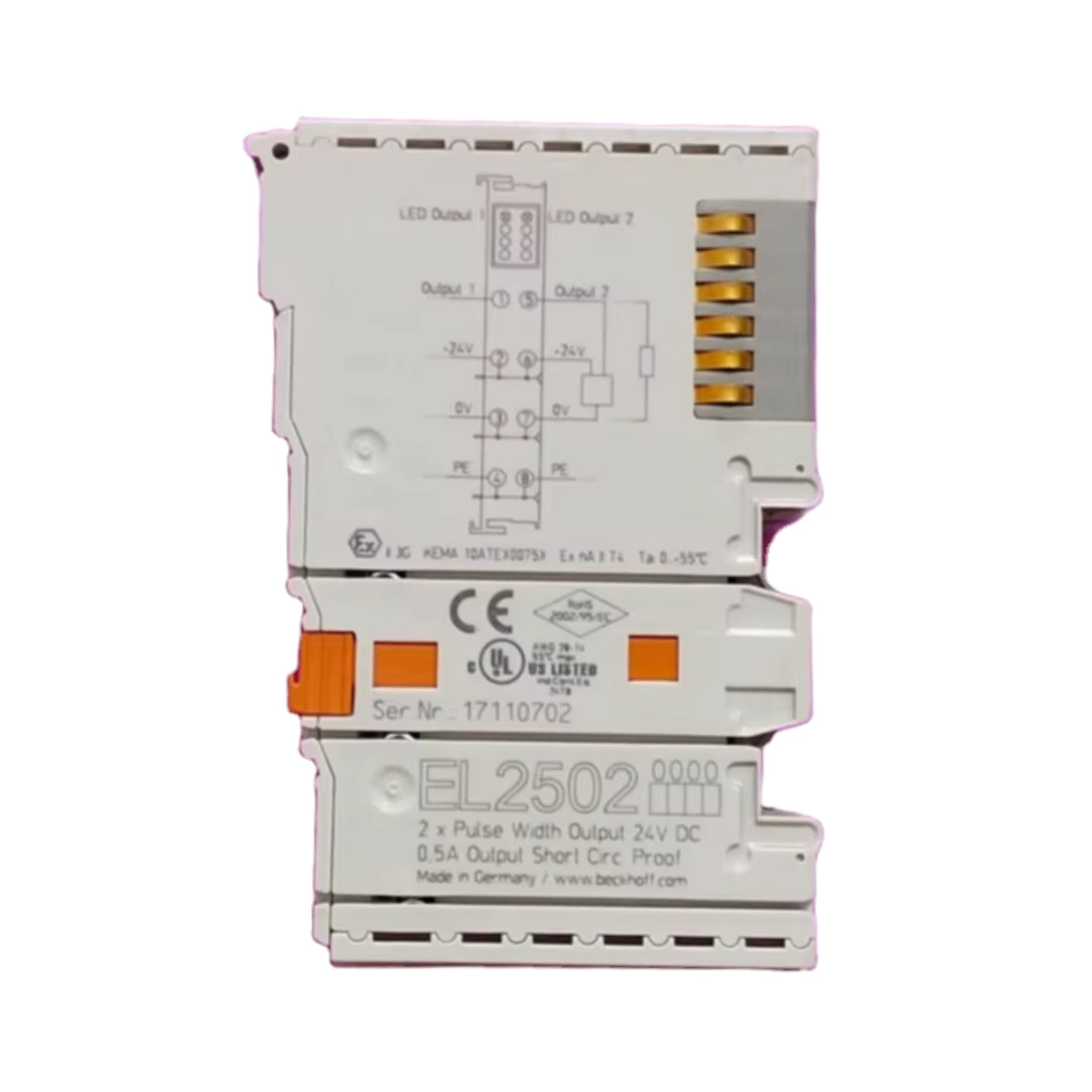

The Beckhoff EL2502 is a 2-channel digital output terminal with pulse width modulation (PWM) capability. Designed for the EtherCAT I/O system, it enables precise control of actuators, valves, LEDs, and other loads requiring PWM-driven signals. Compact and DIN-rail mounted, it integrates seamlessly into distributed EtherCAT networks for advanced automation tasks.

Key Features

• 2 digital output channels with PWM functionality

• Supports configurable PWM frequency and duty cycle

• Output voltage: 24 V DC

• Electrical isolation between I/O and bus system

• Diagnostic LEDs for channel and bus monitoring

• Compact 12 mm EtherCAT housing

• Seamless integration into TwinCAT

Technical Specifications

• Part Number: EL2502

• Manufacturer: Beckhoff

• Function: Digital output with PWM

• Channels: 2

• Output Voltage: 24 V DC

• Output Current: Up to 0.5 A per channel

• Features: PWM output (frequency/duty cycle configurable)

• Electrical Isolation: 500 V (I/O to bus system)

• Housing Width: 12 mm

• Mounting: DIN rail (EtherCAT Terminal system)

• Operating Temperature: –25 °C to +60 °C

Applications

• PWM-based control of actuators and solenoids

• Dimming and LED control in lighting systems

• Proportional valve actuation in process automation

• Signal generation for testing and R&D setups

• Machine automation with EtherCAT integration

Why Choose the EL2502

• Provides two independent PWM outputs

• Compact, space-saving EtherCAT design

• Configurable frequency and duty cycle for flexibility

• Reliable performance with electrical isolation

• Backed by Beckhoff’s TwinCAT integration and EtherCAT technology

Order Now

The Beckhoff EL2502 2-channel digital output PWM terminal is available and ships worldwide.
