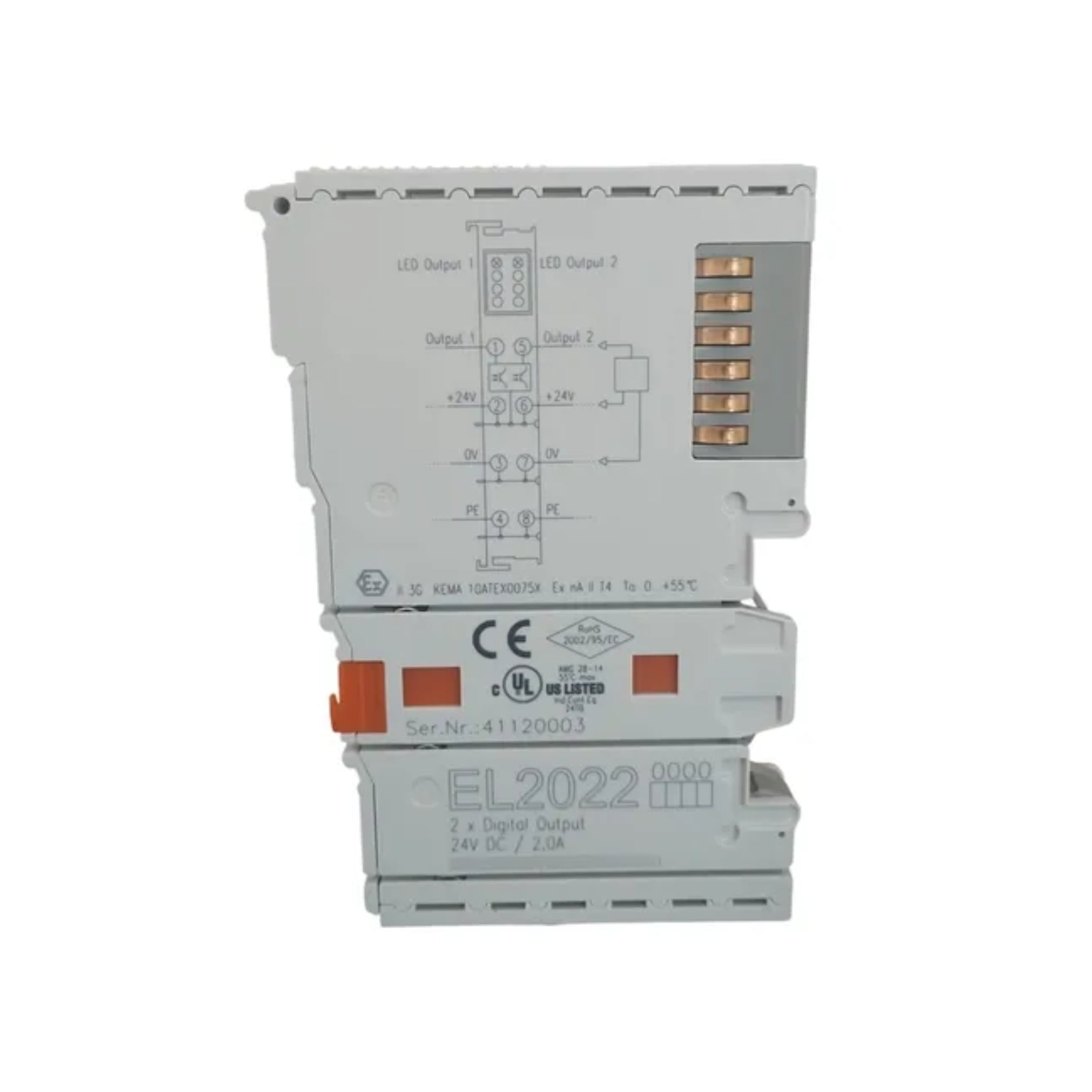

Beckhoff EL2022

Beckhoff EL2022

Overview

The Beckhoff EL2022 is a 2-channel digital output terminal designed for controlling devices, relays, and actuators using 24 V DC signals. It provides secure switching with overload and short-circuit protection, ideal for industrial automation and machine control applications.

Key Features

• 2 digital output channels

• Output voltage: 24 V DC

• Max output current per channel: 0.5 A

• Short-circuit and overload protection

• Diagnostic LEDs for channel status

• Compact DIN-rail design for modular integration

Technical Specifications

• Beckhoff Code: EL2022

• Type: Digital Output Terminal

• Channels: 2

• Output Voltage: 24 V DC

• Max Output Current per Channel: 0.5 A

• Current Consumption (from bus): typ. 20 mA

• Response Time: 0.5 ms typ.

• Operating Temperature: 0 °C to +55 °C

• Mounting: DIN rail

• Certifications: CE, UL

Applications

• Switching actuators, relays, and devices

• Machine and process automation

• Integration with Beckhoff EtherCAT I/O systems

• Industrial control and monitoring

• Modular automation setups

Why Choose Beckhoff EL2022?

• Reliable 2-channel digital output terminal

• Compact and space-saving design

• Fast and secure switching

• Fully compatible with Beckhoff modular I/O systems

Order Now

Optimize your automation system with the Beckhoff EL2022, providing precise 24 V DC digital output control for industrial applications.
