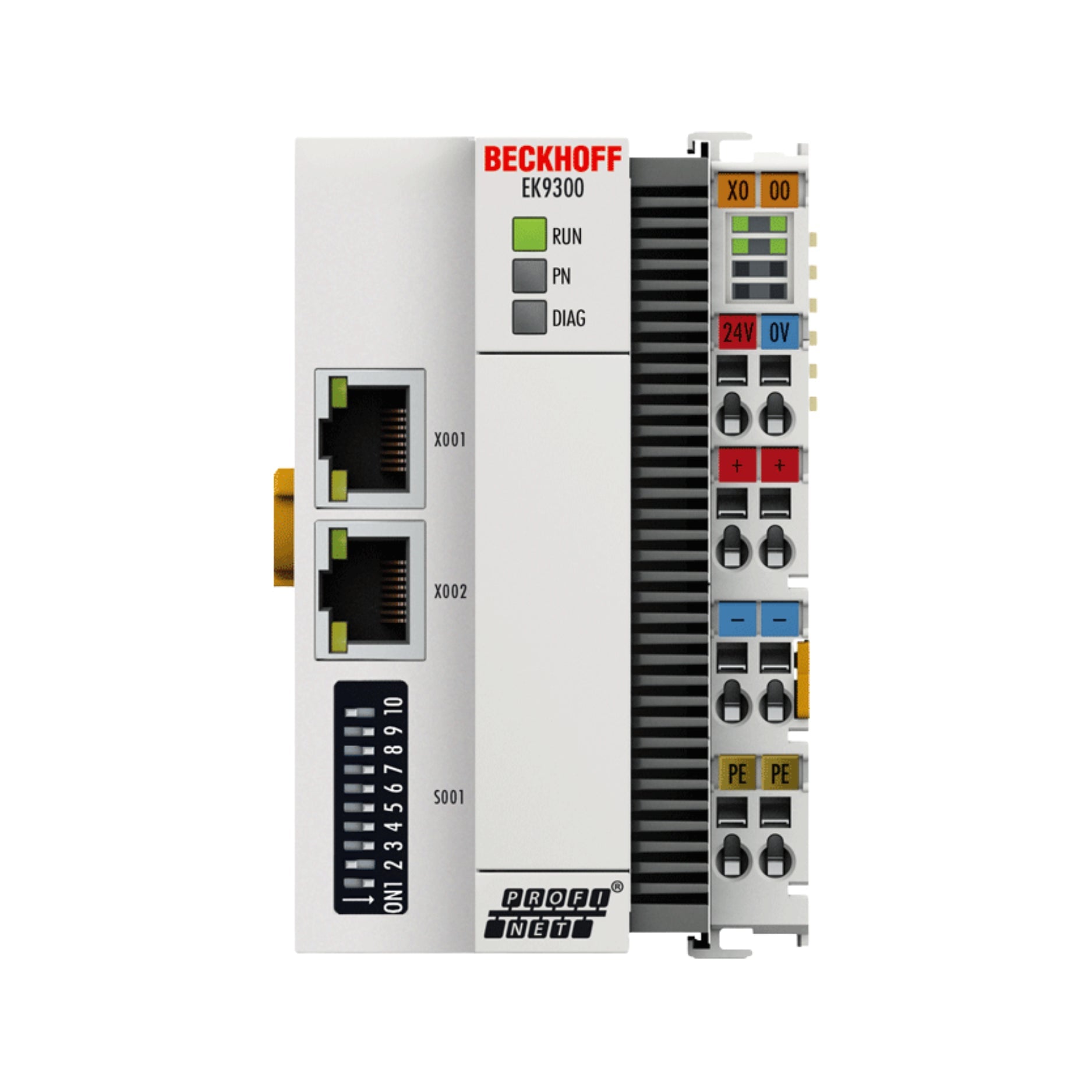

Beckhoff EK9300

Beckhoff EK9300

Overview

The Beckhoff EK9300 is a PROFINET IO bus coupler that enables communication between EtherCAT I/O terminals and PROFINET controllers. This compact gateway allows up to 65,535 I/O channels, offering high flexibility in integrating Beckhoff EtherCAT systems into PROFINET-based automation environments.

Key Features

• Connects EtherCAT I/O terminals to PROFINET controllers

• Supports up to 65,535 I/O channels

• Automatic detection of connected I/O terminals

• DIN-rail mount for easy installation

• LED indicators for diagnostics and network status

• Compact housing for space-saving control cabinets

Technical Specifications

• Part Number: EK9300

• Manufacturer: Beckhoff

• Protocol Conversion: EtherCAT to PROFINET IO

• Max. I/O Terminals: 65,535

• Power Supply: 24 V DC

• Mounting: DIN-rail

• Operating Temperature: 0 °C to +55 °C

• Housing Width: 44 mm

Applications

• Integration of EtherCAT terminals into PROFINET systems

• Industrial automation gateways

• Machine and process control

• Multi-protocol factory networks

Why Choose the EK9300

• Seamless EtherCAT to PROFINET integration

• Large I/O capacity for complex systems

• Compact, reliable, and easy to configure

• Built for demanding industrial automation environments

Order Now

The Beckhoff EK9300 PROFINET IO bus coupler is available and ships worldwide.

Return to Beckhoff Bus Terminals

Return to Beckhoff Category

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
