Overview

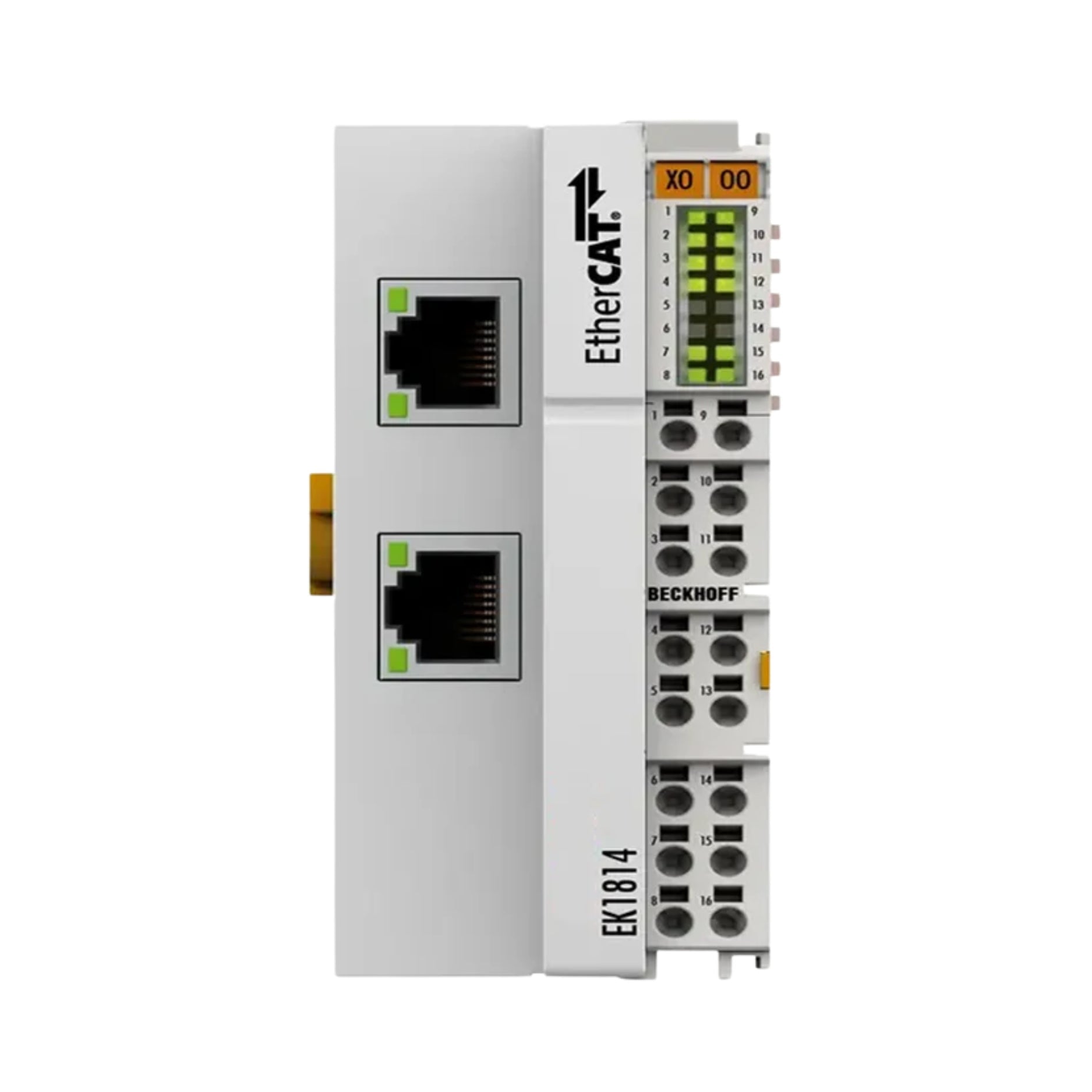

The Beckhoff EK1814 is a compact EtherCAT coupler with 16 integrated digital inputs. Designed for 24 V DC signals, it eliminates the need for separate input terminals by combining coupler and digital inputs in a single housing. With IP20 protection and DIN-rail mounting, the EK1814 is ideal for cabinet-based distributed automation systems.

Key Features

• EtherCAT coupler with integrated 16 digital inputs

• Input voltage: 24 V DC

• IP20-rated housing for cabinet installation

• Compact design for space-saving setups

• Diagnostic LEDs for each channel

• EtherCAT communication for real-time performance

• Seamless TwinCAT integration

Technical Specifications

• Part Number: EK1814

• Manufacturer: Beckhoff

• Function: EtherCAT coupler with integrated I/Os

• Digital Inputs: 16 channels, 24 V DC

• Signal Type: IEC 61131-2, Type 1/3

• Housing Width: 44 mm

• Mounting: DIN rail (control cabinet)

• Protection Class: IP20

• Operating Temperature: –25 °C to +60 °C

Applications

• Machine and plant automation with EtherCAT

• Centralized control cabinets with compact I/O needs

• Process automation with high-density digital inputs

• Building and energy automation

• Distributed EtherCAT architectures with integrated I/O

Why Choose the EK1814

• Combines coupler and digital inputs in one device

• Saves space and simplifies wiring in control cabinets

• Real-time EtherCAT performance for automation tasks

• Easy diagnostics with integrated status LEDs

• Proven Beckhoff reliability with TwinCAT support

Order Now

The Beckhoff EK1814 EtherCAT coupler with 16 digital inputs is available and ships worldwide.
