Beckhoff EK1501

Beckhoff EK1501

Overview

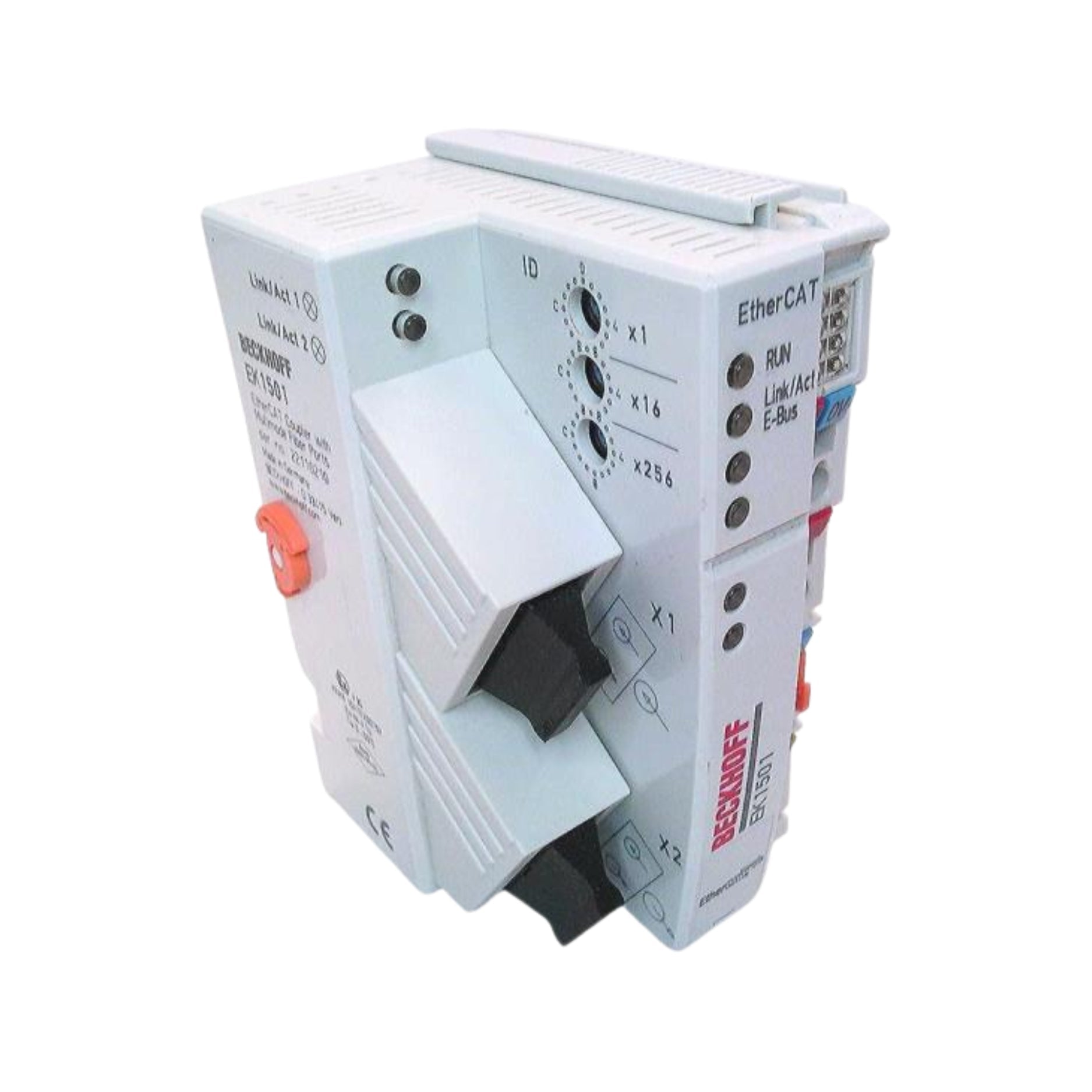

The Beckhoff EK1501 is an EtherCAT coupler that connects standard EtherCAT terminals to an EtherCAT network via a single RJ45 port. Designed for compact and efficient integration, it offers fast communication, robust performance, and DIN-rail mounting for industrial automation environments.

Key Features

• 1-port RJ45 EtherCAT coupler

• Connects EtherCAT terminals to the main network

• Compact and space-saving design

• High-speed data transfer for real-time control

• Diagnostic LEDs for link and activity status

• DIN-rail mount for easy installation

Technical Specifications

• Part Number: EK1501

• Manufacturer: Beckhoff

• Interface: EtherCAT (1-port RJ45)

• Data Transfer Rate: 100 Mbps full duplex

• Mounting Type: DIN-rail

• Housing Width: 44 mm

• Supply Voltage: 24 V DC

• Power Consumption: Typically < 2 W

• Protection Class: IP20

• Operating Temperature: –25 °C to +60 °C

Applications

• Industrial automation networks

• Machine control systems

• Motion control and robotics

• Distributed I/O systems

• Process monitoring and data acquisition

Why Choose the EK1501

• Reliable EtherCAT connection with minimal footprint

• Easy integration with Beckhoff terminals

• Robust design for industrial environments

• Simple DIN-rail mounting and maintenance

Order Now

The Beckhoff EK1501 EtherCAT coupler is available and ships worldwide.
