Beckhoff CX9020-0115

Beckhoff CX9020-0115

Overview

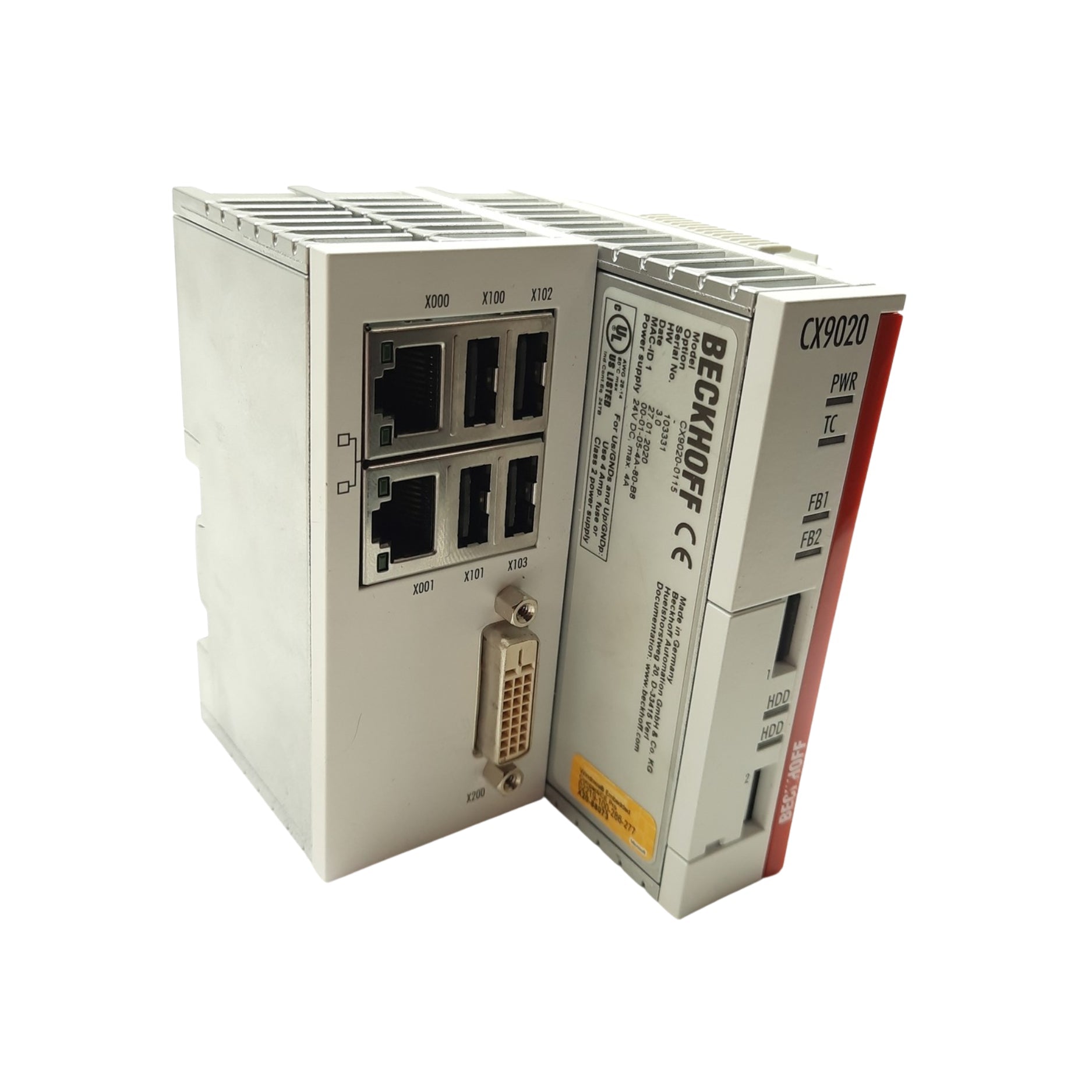

The Beckhoff CX9020-0115 is a powerful embedded PC designed for industrial automation applications. Equipped with an ARM Cortex-A8 1 GHz processor and 1 GB DDR3 RAM, it provides reliable performance in compact control environments. The device supports direct connection of EtherCAT Terminals and Bus Terminals, making it a scalable and cost-efficient solution for PLC, motion control, and HMI applications.

Key Features

• ARM Cortex-A8 1 GHz CPU

• 1 GB DDR3 RAM (expandable)

• Integrated microSD card slot for storage

• Fanless, compact design for industrial use

• Direct connection for EtherCAT Terminals (EL/ES series)

• Compatible with Beckhoff TwinCAT 3 software

• Multiple interfaces: Ethernet, USB, DVI-D, serial port

• Low power consumption for energy-efficient control

Technical Specifications

• Part Number: CX9020-0115

• Manufacturer: Beckhoff

• CPU: ARM Cortex-A8, 1 GHz

• RAM: 1 GB DDR3

• Storage: MicroSD card slot, up to 4 GB pre-installed (expandable)

• Operating System: Windows Embedded Compact 7 or TwinCAT/BSD

• Interfaces: 2 × Ethernet, 4 × USB 2.0, 1 × DVI-D, 1 × serial interface

• Fieldbus: EtherCAT

• Mounting: DIN rail

• Operating Temperature: –25 °C to +60 °C

Applications

• Compact PLC and automation control

• HMI and SCADA systems

• Building automation

• Motion and drive control

• Machine and process control systems

Why Choose the CX9020-0115

• High-performance embedded PC with low power consumption

• Expandable I/O through EtherCAT and Bus Terminals

• Cost-effective solution for industrial control applications

• Fanless, durable design for long-term operation

Order Now

The Beckhoff CX9020-0115 Embedded PC with ARM Cortex-A8 CPU and EtherCAT connectivity is available and ships worldwide.
