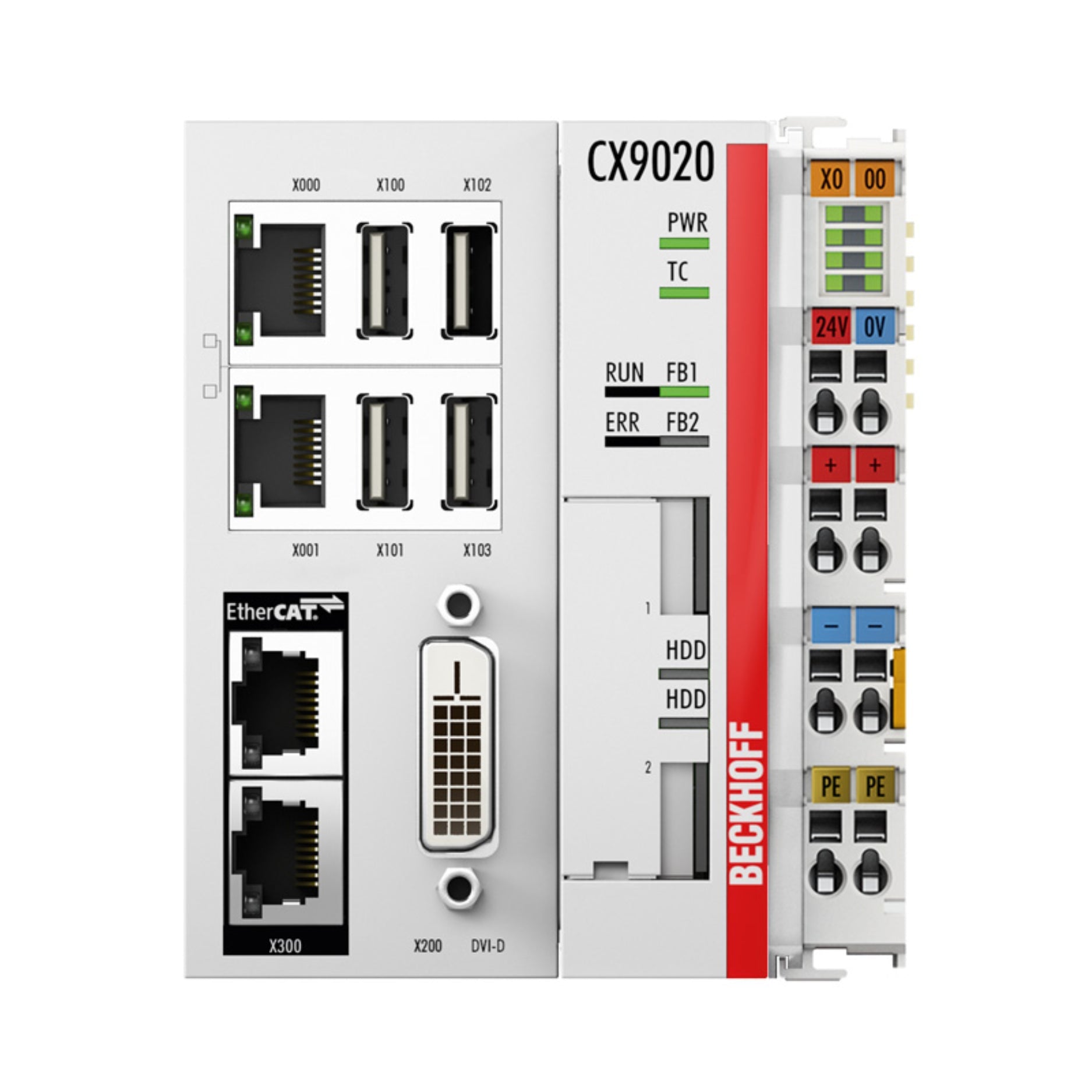

Beckhoff CX9020-0111

Beckhoff CX9020-0111

Overview

The Beckhoff CX9020-0111 is a compact embedded PC designed for industrial automation tasks. Equipped with an ARM Cortex-A8 1 GHz processor and 512 MB DDR3 RAM, it delivers reliable performance for PLC, HMI, and motion control applications. The CX9020 integrates seamlessly with EtherCAT Terminals and Bus Terminals, offering flexible modular expansion for a wide range of automation needs.

Key Features

• ARM Cortex-A8 1 GHz CPU

• 512 MB DDR3 RAM onboard

• Fanless design for reliable operation

• Integrated microSD slot for storage

• EtherCAT master interface onboard

• Support for Beckhoff TwinCAT 3 automation software

• Modular expansion with EtherCAT and Bus Terminals

• Multiple communication ports (Ethernet, USB, serial)

Technical Specifications

• Part Number: CX9020-0111

• Manufacturer: Beckhoff

• CPU: ARM Cortex-A8, 1 GHz

• RAM: 512 MB DDR3

• Storage: MicroSD card slot (up to 4 GB pre-installed, expandable)

• Interfaces: 2 × Ethernet, 4 × USB 2.0, 1 × DVI-D, 1 × serial port

• Operating System: Windows Embedded Compact 7 or TwinCAT/BSD

• Fieldbus: EtherCAT master, modular I/O expansion

• Power Supply: 24 V DC

• Mounting: DIN rail

• Operating Temperature: –25 °C to +60 °C

Applications

• Compact PLC for machine automation

• Building automation and energy systems

• Motion control and robotics

• HMI and visualization systems

• Distributed EtherCAT-based I/O architectures

Why Choose the CX9020-0111

• Compact, fanless, and cost-efficient embedded PC

• Seamless EtherCAT integration for real-time automation

• Flexible I/O expansion for scalable applications

• Proven Beckhoff design with reliable performance

Order Now

The Beckhoff CX9020-0111 embedded PC controller with ARM Cortex-A8 CPU is available and ships worldwide.
