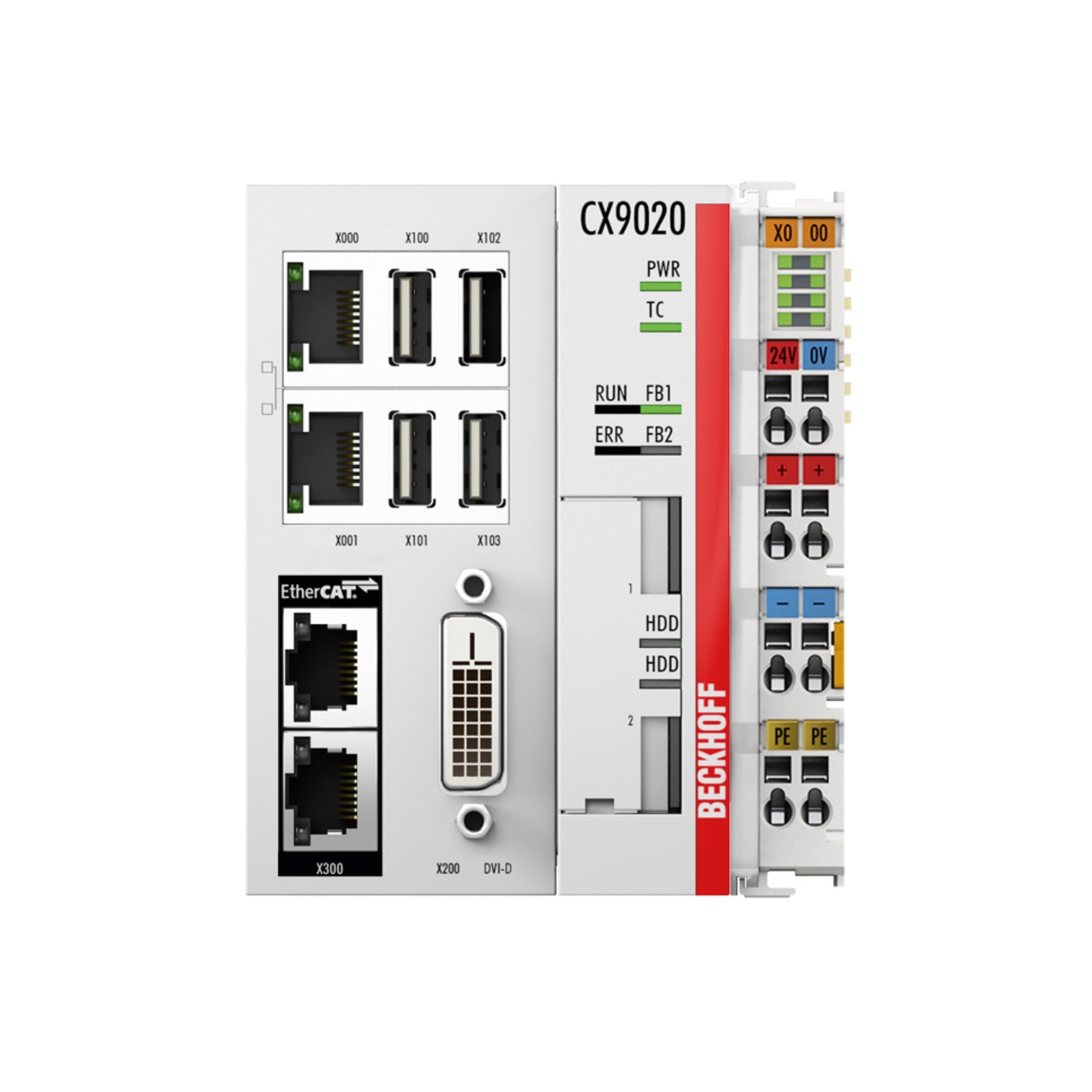

Beckhoff CX9020

Beckhoff CX9020

Overview

The Beckhoff CX9020 is a compact, fanless embedded PC designed for DIN-rail mounting in industrial automation systems. Powered by a 1 GHz ARM Cortex™ A8 processor, it serves as a powerful controller for machine-level applications and supports direct integration with EtherCAT Terminals. Its robust design and energy efficiency make it ideal for control systems with limited space and high reliability requirements.

Key Features

• ARM Cortex™ A8, 1 GHz processor

• Fanless, low-power embedded PC

• 1 GB DDR3 RAM

• Integrated microSD card slot (supports up to 4 GB)

• 2 × RJ45 Ethernet ports

• USB and DVI interfaces (optional)

• Supports TwinCAT 2 and TwinCAT 3 runtime

• DIN-rail mountable

• Modular with EtherCAT I/O compatibility

Technical Specifications

• Part Number: CX9020

• Manufacturer: Beckhoff

• CPU: ARM Cortex A8, 1 GHz

• RAM: 1 GB DDR3

• Storage: microSD (up to 4 GB included)

• Interfaces: 2 × Ethernet, 1 × USB 2.0, optional DVI

• Fieldbus: EtherCAT Master

• Power Supply: 24 V DC

• Mounting Type: DIN-rail

• Operating Temperature: –25 °C to +60 °C

• Protection Class: IP20

• Dimensions: Approx. 100 × 100 × 72 mm

Applications

• Machine and factory automation

• Compact PLC and motion control

• Building management systems

• SCADA systems

• Embedded EtherCAT control

Why Choose the CX9020

• Fanless and maintenance-free design

• Ideal for compact and modular automation setups

• Runs both TwinCAT 2 and TwinCAT 3

• Reliable ARM architecture for long-term industrial use

• Seamless integration with Beckhoff I/O modules

Order Now

The Beckhoff CX9020 Embedded PC is available and ships worldwide.
