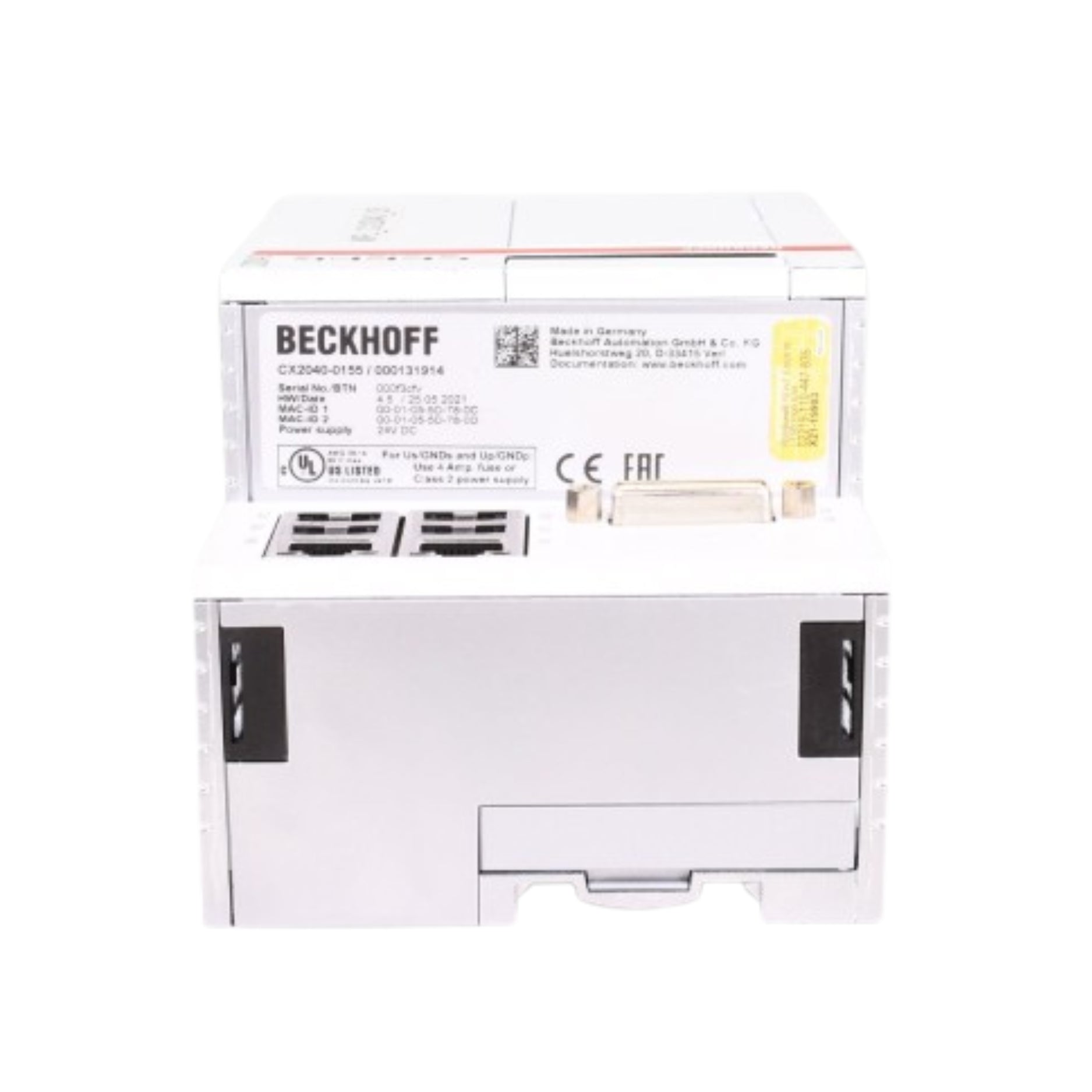

Beckhoff CX2040-0155

Beckhoff CX2040-0155

Overview

The Beckhoff CX2040-0155 is a high-performance Embedded PC from the CX2000 series, equipped with an Intel® Core™ i7 quad-core processor at 2.1 GHz. Designed for DIN rail mounting, it delivers exceptional computing power for demanding automation, motion, and CNC applications. With support for TwinCAT software and a wide range of industrial interfaces, the CX2040-0155 is ideal for complex control systems requiring real-time performance.

Key Features

• Intel® Core™ i7 quad-core processor, 2.1 GHz

• High-performance automation platform

• Supports EtherCAT and optional fieldbus modules

• DIN rail mounting for control cabinet integration

• Interfaces: 2 × Ethernet, 4 × USB 3.0, 1 × DVI-I

• CFast card slot for OS and data storage

• Fully compatible with TwinCAT automation software

Technical Specifications

• Part Number: CX2040-0155

• Manufacturer: Beckhoff

• Series: CX2000 Embedded PC

• CPU: Intel® Core™ i7, quad-core, 2.1 GHz

• RAM: 4 GB DDR3L (expandable)

• Storage: CFast slot (OS and user data)

• Interfaces: 2 × Ethernet, 4 × USB 3.0, 1 × DVI-I

• Operating System: Windows Embedded Standard / Windows 10 IoT / TwinCAT/BSD

• Mounting: DIN rail

• Power Supply: 24 V DC

• Operating Temperature: –25 °C to +60 °C

Applications

• High-end machine automation

• Motion control and CNC systems

• Robotics and handling equipment

• Process automation with real-time demands

• Data-intensive industrial control tasks

Why Choose the CX2040-0155

• Quad-core Intel® Core™ i7 for top-tier performance

• Supports EtherCAT and multiple fieldbus options

• Compact DIN rail design saves cabinet space

• Fanless design ensures reliable, maintenance-free operation

• Full compatibility with Beckhoff TwinCAT software

Order Now

The Beckhoff CX2040-0155 Embedded PC is available and ships worldwide.
