Beckhoff CP6606-0001-0020

Beckhoff CP6606-0001-0020

Overview

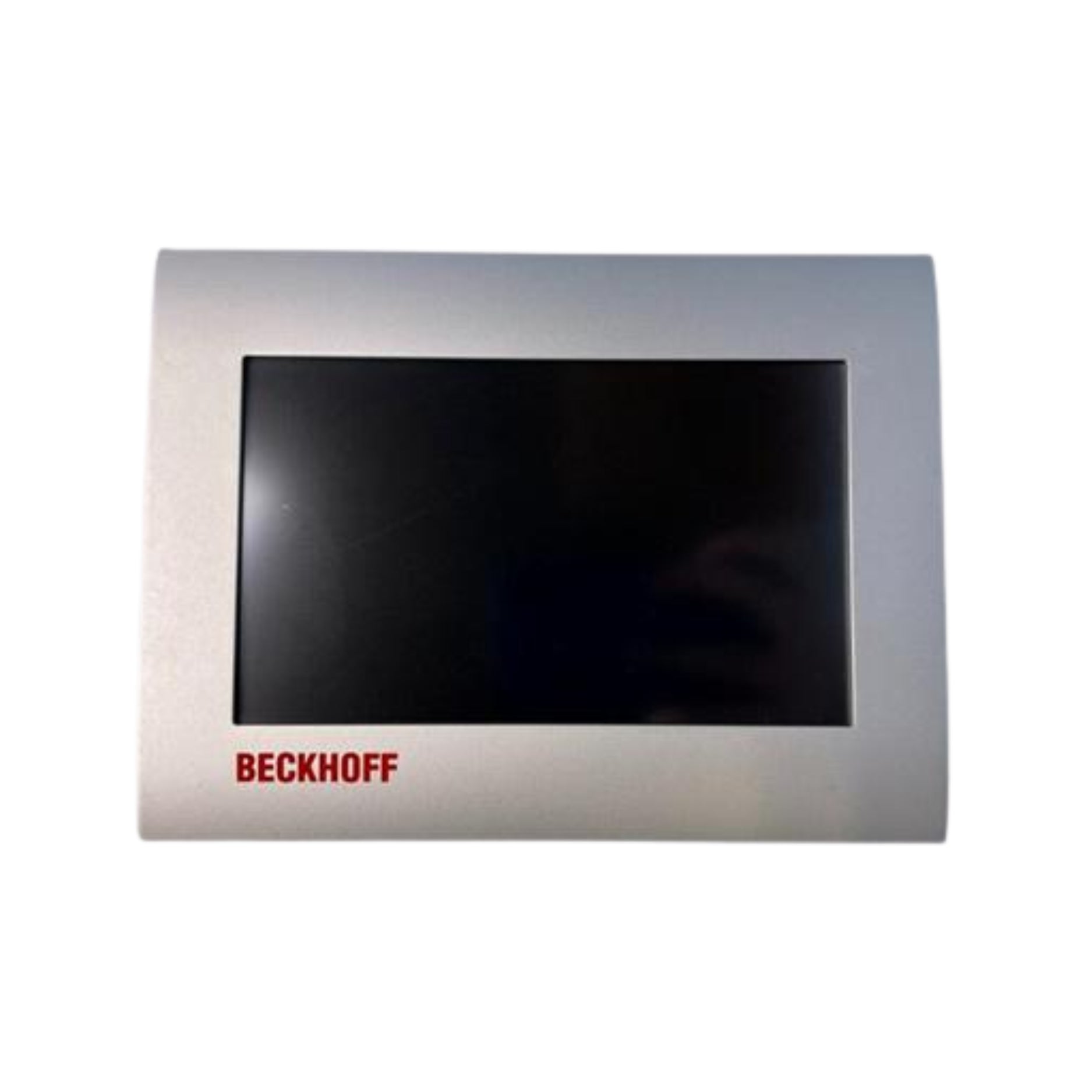

The Beckhoff CP6606-0001-0020 is a compact Panel PC with a 7-inch touch display, powered by an ARM Cortex™-A8 processor. Designed as a fanless, cost-efficient solution for control and visualization tasks, it runs Windows Embedded Compact 7 and integrates seamlessly with TwinCAT automation software. Ideal for small to medium-sized automation projects, the CP6606 combines user interface and control in one device.

Key Features

• 7-inch TFT touchscreen display

• ARM Cortex™-A8 processor, 1 GHz

• Fanless, compact design for cabinet or machine installation

• Operating system: Windows Embedded Compact 7

• Interfaces: 1 × Ethernet, 2 × USB 2.0, 1 × DVI-D

• Integrated microSD slot for storage

• TwinCAT compatibility for control and HMI functions

Technical Specifications

• Part Number: CP6606-0001-0020

• Manufacturer: Beckhoff

• Type: Panel PC

• Display: 7" TFT, touchscreen

• CPU: ARM Cortex™-A8, 1 GHz

• RAM: 512 MB

• Storage: microSD slot

• Interfaces: 1 × Ethernet, 2 × USB 2.0, 1 × DVI-D

• Operating System: Windows Embedded Compact 7

• Mounting: Control cabinet or panel mounting

• Operating Temperature: 0 °C to +55 °C

Applications

• Compact HMI and control solution

• Machine and process automation

• Building and energy management systems

• Visualization of industrial processes

• Cost-efficient automation projects with integrated display and control

Why Choose the CP6606-0001-0020

• Combines visualization and control in one compact device

• Energy-efficient ARM Cortex-A8 processor

• Fanless, reliable design for long-term operation

• Seamless TwinCAT integration for automation tasks

• Proven Beckhoff reliability and global support

Order Now

The Beckhoff CP6606-0001-0020 7" Panel PC is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
