Overview

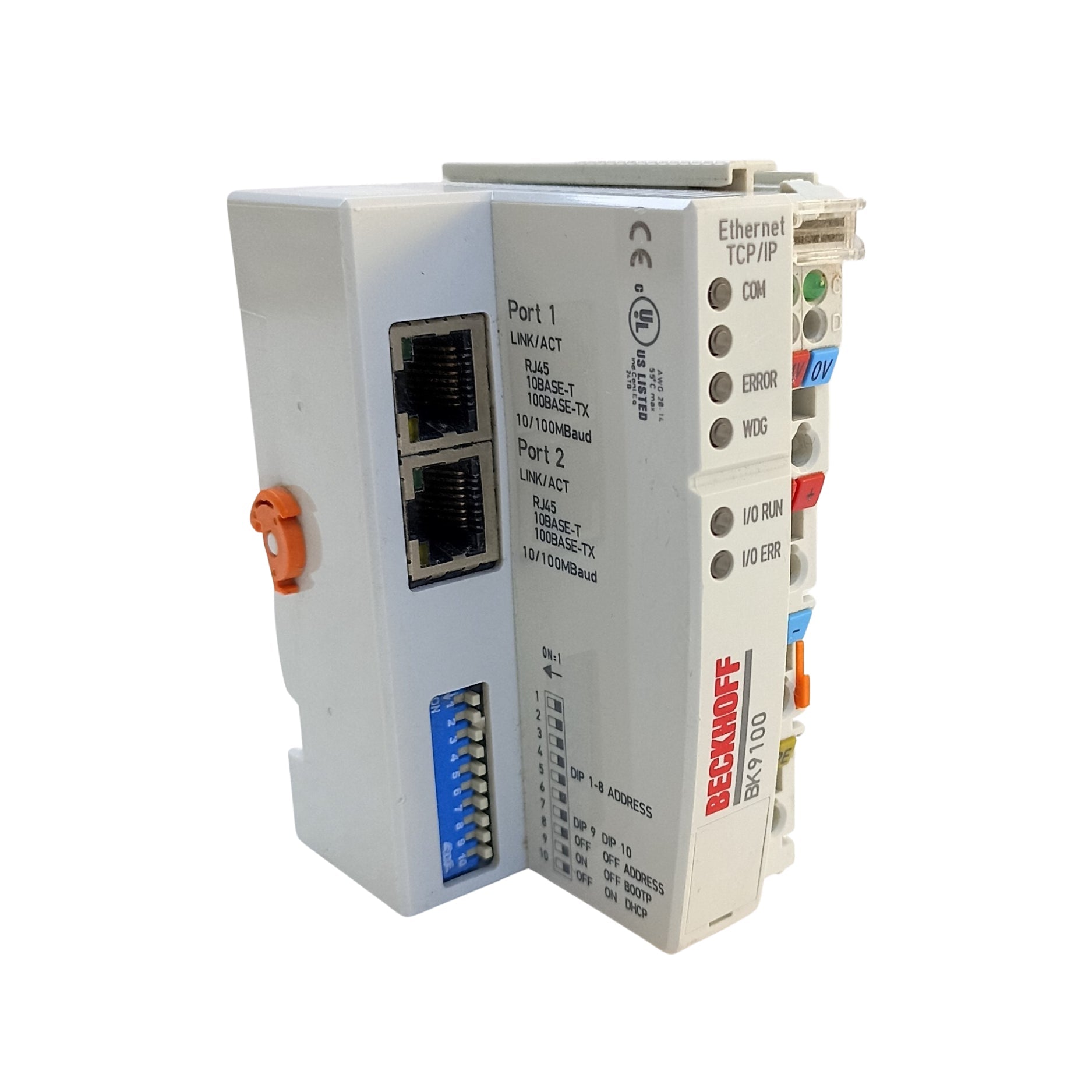

The Beckhoff BK9100 is an EtherCAT bus coupler equipped with an Ethernet TCP/IP interface, enabling the integration of Beckhoff EtherCAT terminals into standard Ethernet networks. It provides a flexible and cost-effective solution for connecting distributed I/O modules to industrial controllers, SCADA systems, or PCs via TCP/IP communication.

Key Features

• Ethernet TCP/IP interface for network integration

• Supports EtherCAT I/O terminals

• Flexible configuration via web interface or software tools

• Automatic terminal recognition for simplified setup

• Compact and modular design

• LED indicators for power, communication, and diagnostics

Technical Specifications

• Part Number: BK9100

• Manufacturer: Beckhoff

• Communication Protocol: Ethernet TCP/IP

• Supported Terminals: EtherCAT I/O terminals

• Data Transmission Rate: 10/100 Mbit/s

• Connection: RJ45 Ethernet port

• Power Supply: 24 V DC

• Mounting: DIN-rail

• Operating Temperature: –25 °C to +60 °C

• Dimensions: 44 mm x 100 mm x 91 mm

Applications

• Connecting EtherCAT terminals to Ethernet networks

• Integration with PLCs, SCADA, and HMI systems

• Distributed I/O in factory automation

• Process monitoring and control systems

• Building automation networks

Why Choose the BK9100

• Seamless connection between EtherCAT I/O and Ethernet-based controllers

• Easy configuration and commissioning

• Compact size for space-constrained control cabinets

• Reliable and high-speed communication

Order Now

The Beckhoff BK9100 EtherCAT bus coupler is available and ships worldwide.
