Balluff BES008L

Balluff BES008L

Balluff Code: BES M18MI-PSC80B-S04G

Overview

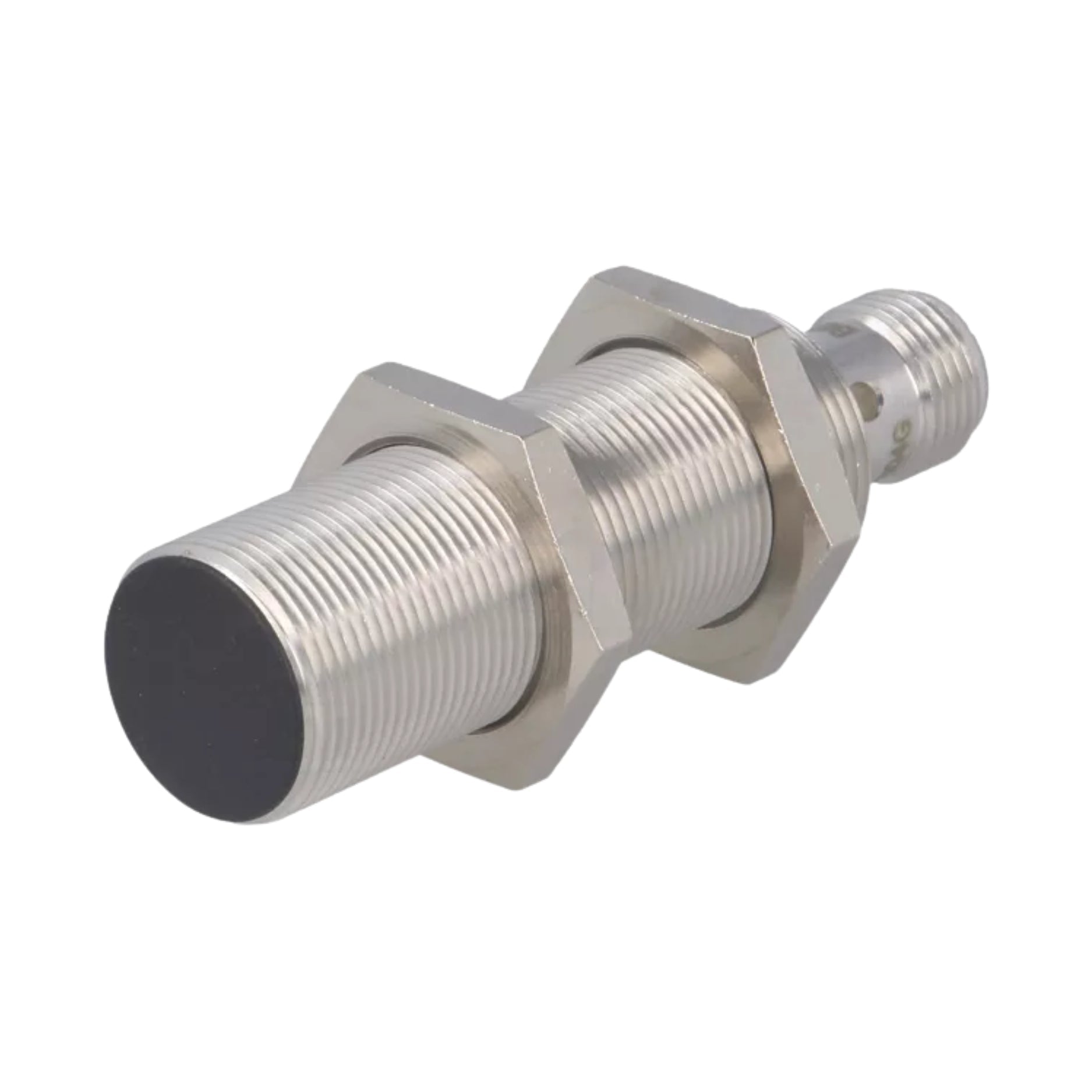

The Balluff BES008L is a robust inductive proximity sensor designed for precision metal detection in challenging environments. With a 5 mm sensing range in an M18×1 flush-mount cylindrical body, it offers PNP normally open (NO) output and IP67-rated protection, making it suitable for demanding industrial applications.

Key Features

• 5 mm sensing distance

• M18×1 flush-mount cylindrical housing

• PNP output, normally open (NO)

• 3-wire DC operation (10–30 V)

• LED status indication

• IP67 protection for rugged use

• Short-circuit and overload protection

• Nickel-plated brass housing

Technical Specifications

• Sensing Range: 5 mm

• Mounting Type: Flush

• Housing Size: M18×1

• Output Type: PNP, normally open (NO)

• Voltage Range: 10–30 V DC

• Connection: M12 connector, 3-wire

• Housing Material: Nickel-plated brass

• Protection Class: IP67

• Operating Temp: –25 °C to +70 °C

• Switching Frequency: Up to 1 kHz

• Certifications: CE, cULus, RoHS

Applications

• Industrial automation lines

• Material handling and robotics

• Machinery position detection

• Metal object presence sensing

• Tough and wet environments

Why Choose Balluff BES008L?

• Extended sensing in a rugged format

• Easy integration with standard M12 connectors

• Long lifecycle and high vibration resistance

• Suitable for compact and harsh environments

• Reliable PNP switching for control systems

Order Now

Get superior durability and performance with the Balluff BES008L — the go-to inductive sensor for metal detection in demanding industrial setups.
