Balluff BCS0037

Balluff BCS0037

Balluff Code: BCS M12T4D2-PSM40C-S04G

Overview

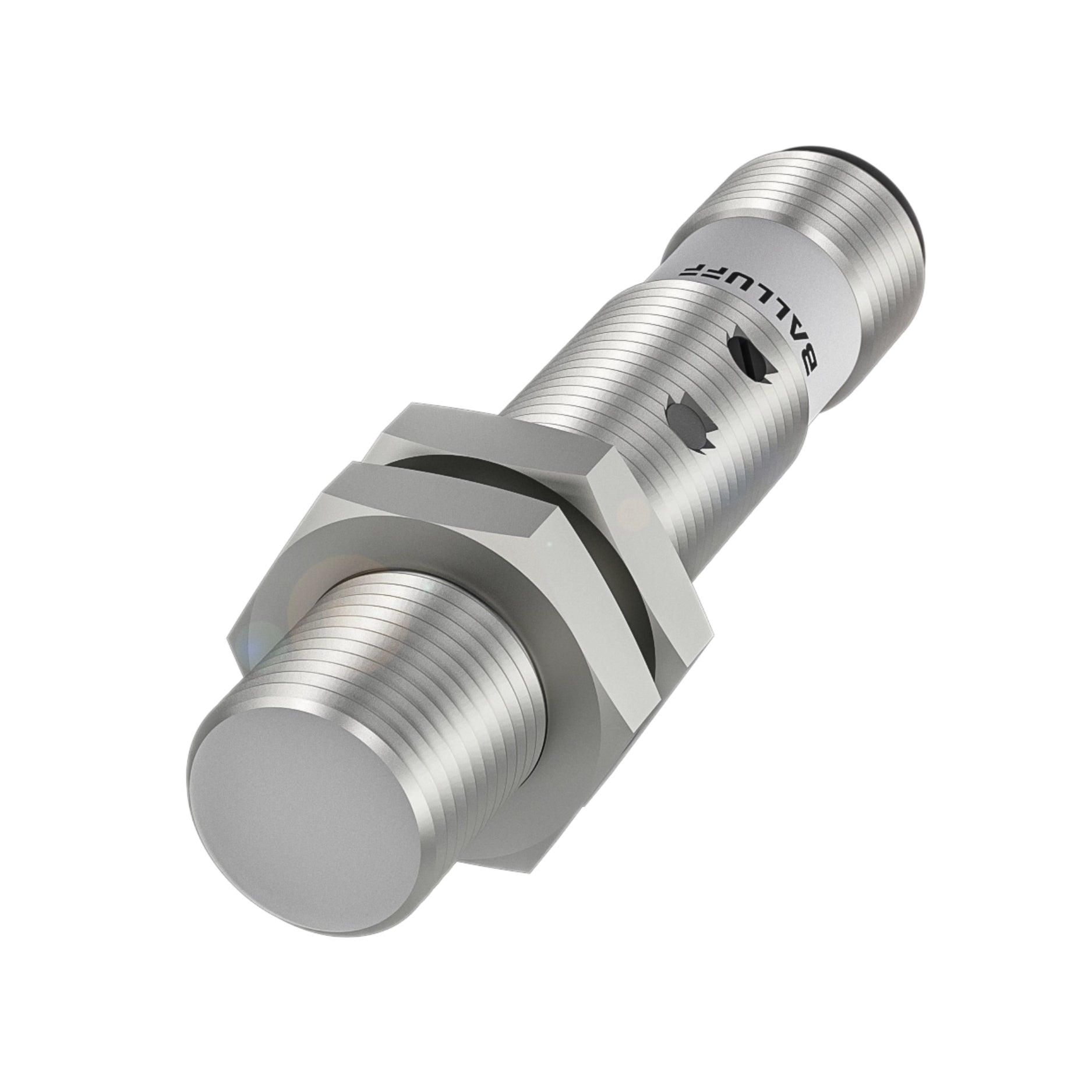

The Balluff BCS0037 is a compact capacitive sensor designed to detect solid or liquid materials through non-metallic walls or containers. With a cylindrical M18 form factor, adjustable sensitivity, and reliable PNP normally open output, it ensures precise detection in confined industrial environments.

Key Features

• Capacitive detection of solids and liquids

• M18x1 threaded cylindrical housing

• PNP normally open (NO) output

• Adjustable sensitivity via potentiometer

• IP67-rated for harsh environments

• LED for visual switching status

• Short-circuit and reverse polarity protection

Technical Specifications

• Sensing Range: Up to 10 mm (adjustable)

• Output Type: PNP NO

• Supply Voltage: 10–30 V DC

• Housing Material: PBT

• Mounting: Flush-mountable

• Connection: 2 m PVC cable

• Protection Rating: IP67

• Operating Temperature: –25 °C to +70 °C

Applications

• Detection through plastic or glass containers

• Level sensing in tanks and hoppers

• Packaging and food processing systems

• Automated material handling

Why Choose Balluff BCS0037?

• Precise capacitive detection for diverse materials

• Durable and compact sensor for industrial use

• Flexible installation with adjustable sensitivity

• Trusted performance in harsh environments

• Ideal for confined spaces and non-contact detection

Order Now

Enhance material sensing with the Balluff BCS0037 — a compact, precise, and reliable capacitive sensor for modern automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
