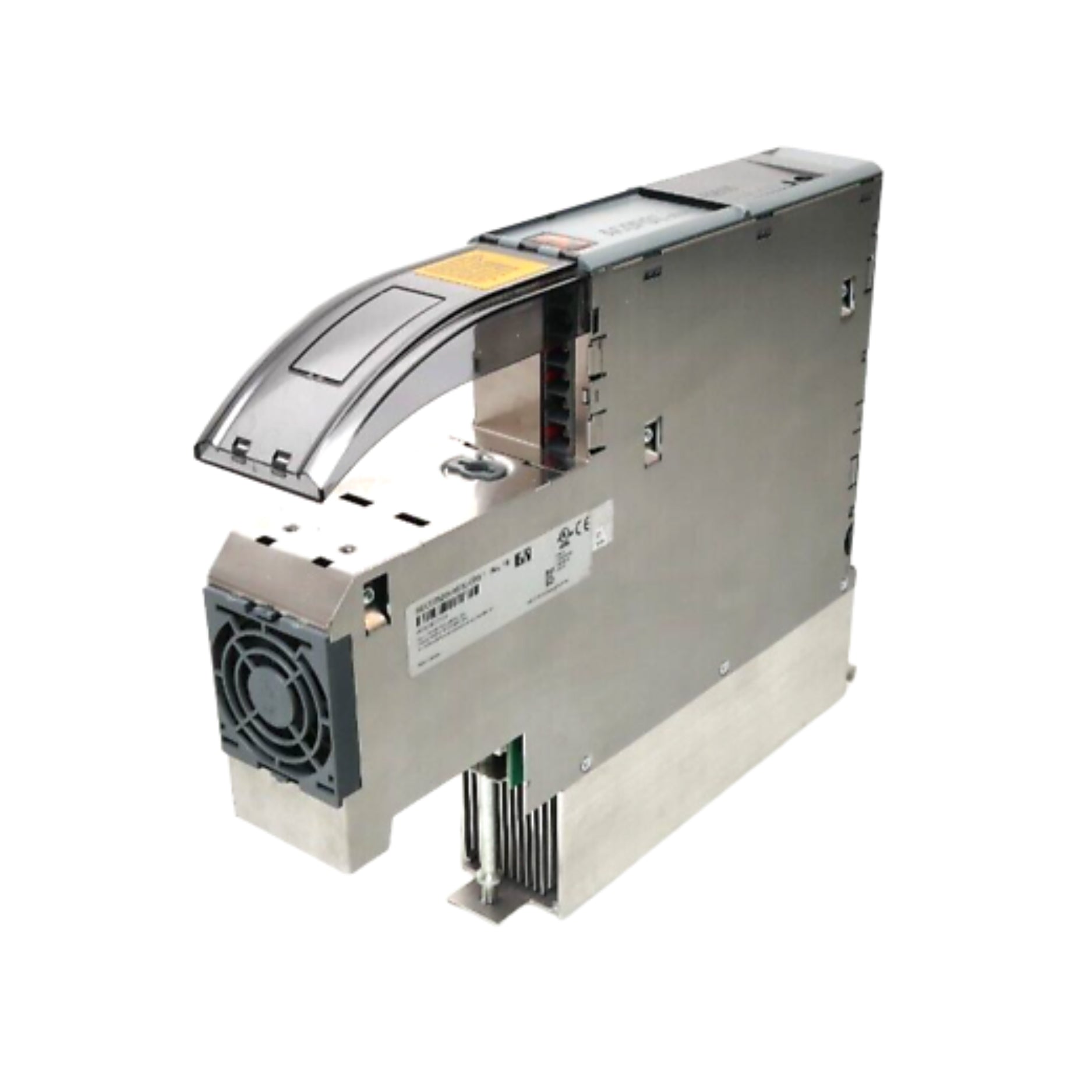

B&R 8BVE0500HW00.000-1 | ACOPOSmulti Expansion Module – 50 A, Wall Mounting

Overview

The B&R 8BVE0500HW00.000-1 is an ACOPOSmulti expansion module designed to facilitate the distribution of DC bus power and 24 VDC auxiliary supply to multiple mounting plates. With a 50 A capacity and wall mounting design, it enables the setup of decentralized units within the ACOPOSmulti drive system, enhancing flexibility and scalability in industrial automation applications. citeturn0search0

Key Features

• High Current Capacity: Supports up to 50 A for robust power distribution.

• Decentralized Configuration: Enables the establishment of decentralized drive units.

• Wall Mounting Design: Facilitates efficient use of space and flexible installation.

• Integrated Overload Protection: Includes fuse-dependent overload protection with LED indicators and alarm contacts.

• Short-Circuit and Ground Fault Protection: Ensures system safety and reliability.

• Alarm Contacts: Provides normally closed and normally open contacts for system monitoring.

Technical Specifications

• Model Number: 8BVE0500HW00.000-1

• Series: ACOPOSmulti

• Current Capacity: 50 A

• Mounting Type: Wall mounting

• Fuse Protection:

  • Type: 2x melting fuse ø 14 x 51 mm

  • Tripping Characteristic: Ultra fast-acting

  • Rated Current Options: 10 / 20 / 50 A

• Protective Measures:

  • Overload Protection: Indicated via LED and dry alarm contacts

  • Short-Circuit and Ground Fault Protection: Yes

• Alarm Contacts:

  • Quantity: 2 (1 normally closed, 1 normally open)

  • Nominal Voltage: 30 VDC

  • Maximum Current: 1 A

• Operating Conditions:

  • Temperature:

    • Nominal: 5°C to 40°C

    • Maximum: Up to 55°C with derating

  • Installation Elevation:

    • Nominal: 0 to 500 m

    • Maximum: Up to 4000 m with derating

  • Degree of Protection: IP20

• Dimensions: 53 mm (W) x 317 mm (H) x 263 mm (D)

• Weight: Approximately 3.1 kg

• Certifications: CE, UL, among others

Applications

• Industrial Automation: Facilitates power distribution in complex machinery setups.

• Decentralized Drive Systems: Enables the creation of flexible, modular drive configurations.

• Material Handling: Supports efficient operation of conveyors and automated storage systems.

• Packaging Machinery: Enhances control and power distribution in packaging lines.

Why Choose the B&R 8BVE0500HW00.000-1?

• High Performance: Delivers robust power handling for demanding applications.

• Flexible Installation: Wall mounting design allows for efficient use of space.

• Integrated Protection: Built-in overload, short-circuit, and ground fault protection ensure system safety.

• Scalable Configuration: Supports the development of decentralized drive systems for enhanced flexibility.
