Allen-Bradley MPL-B4530F-MJ72AA

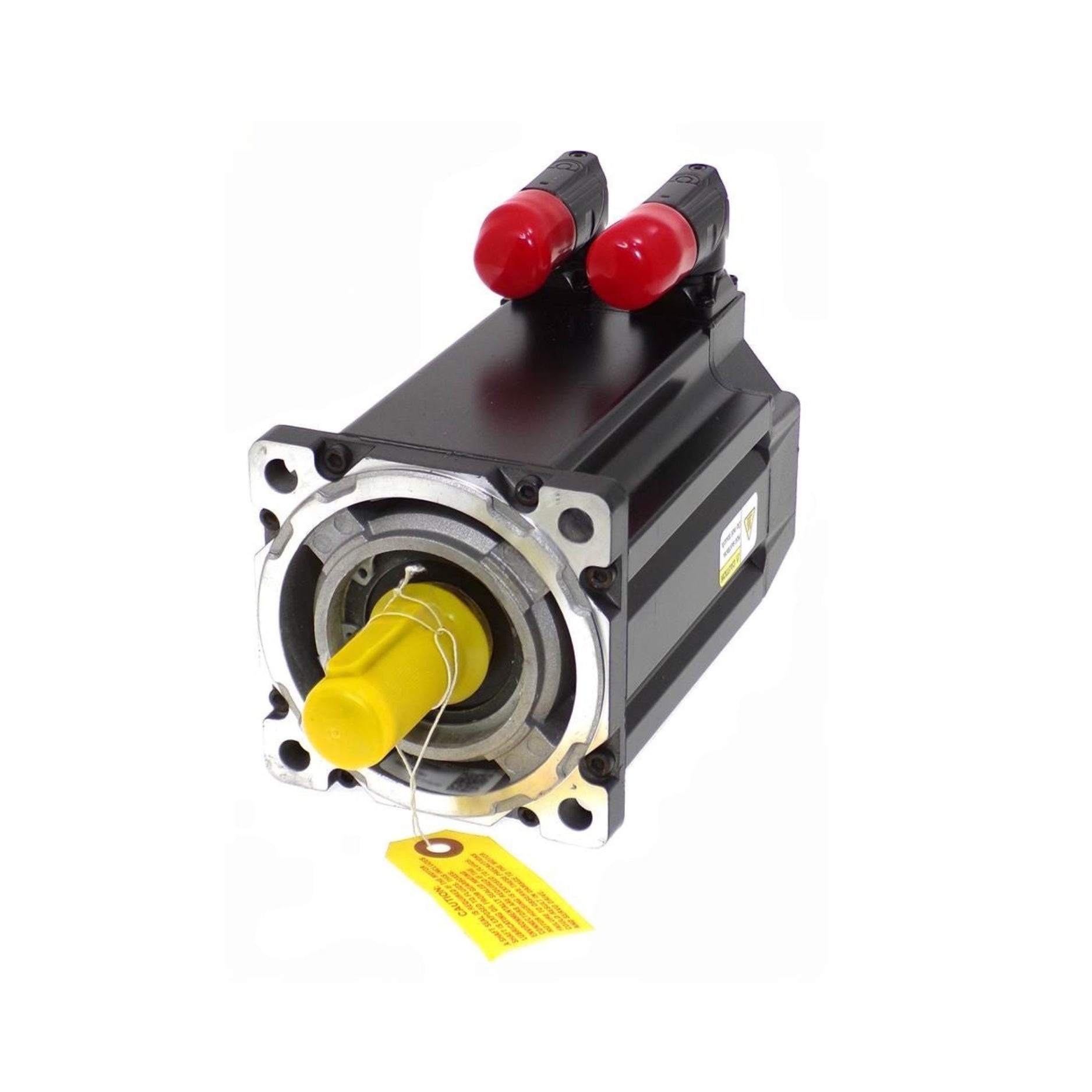

Allen-Bradley MPL-B4530F-MJ72AA Servo Motor

Overview

The Allen-Bradley MPL-B4530F-MJ72AA is a high-performance brushless servo motor from the MP-Series, designed for precision motion control in demanding industrial environments. Operating at 460V AC, this low-inertia motor delivers 2.1 kW of output power, 8.25 Nm continuous stall torque, and a rated speed of 3000 RPM. It features a multi-turn absolute encoder using Hiperface protocol, a keyed shaft, and circular SpeedTec connectors for efficient, flexible installation.

Technical Specifications

• Brand: Allen-Bradley

• Series: MP-Series Low Inertia

• Part Number: MPL-B4530F-MJ72AA

• Voltage: 460V AC

• Frame Size: 130 mm (5.12 in.)

• Magnet Stack Length: 76.2 mm (3.0 in.)

• Rated Speed: 3000 RPM

• Rated Power Output: 2.1 kW

• Continuous Stall Torque: 8.25 Nm (73 lb-in.)

• Continuous Stall Current: 7.0 A (0-peak)

• Encoder Type: Multi-turn 1024 sin/cos Absolute (Hiperface)

• Shaft: Keyed, No Shaft Seal

• Connector Type: SpeedTec Circular DIN, Right Angle, 180° Rotatable

• Mounting Type: IEC Metric, Free Mounting Holes (Type FF)

• Protection: Standard

• Brake: No

• Weight: 8.2 kg

• Condition: New

Key Features

• Low-inertia rotor for rapid acceleration

• Multi-turn absolute encoder with Hiperface protocol

• High torque density for compact applications

• Keyed shaft for secure mechanical integration

• Right-angle SpeedTec DIN connectors for easy routing

• Mounts using IEC metric flange with free mounting holes

• Optimized for high-performance servo systems

Applications

• Precision packaging equipment

• Industrial robotics

• Printing and converting systems

• Automated assembly machinery

• Motion control in high-speed production lines

Shipping & Availability

The MPL-B4530F-MJ72AA is available for fast international shipping. Ideal for system integrators, OEMs, and MRO operations seeking reliable Allen-Bradley motion solutions.

Looking for more options?

Explore our complete selection of Kinetix MPL Low-Inertia Servo Motors for high-performance, precise motion control solutions.

You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation needs.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
